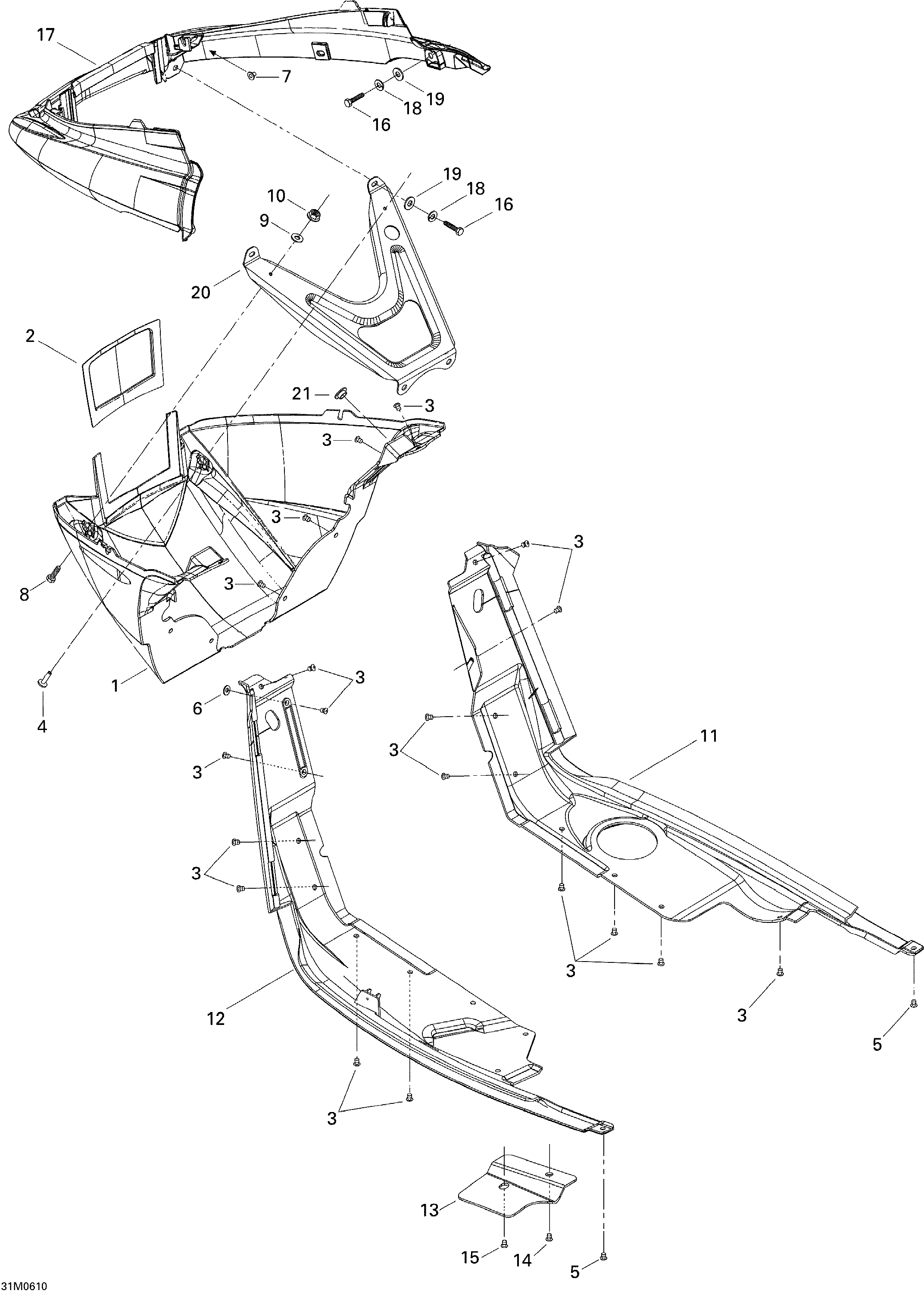

09- Bottom Pan для BRP Ski-Doo MX Z 440 Racing - 2006
-
№АртикулНазвание
-
1502006733 Front Bottom PanFront Bottom Pan
-
2502006706 Bottom Pan PlateBottom Pan Plate
-
3293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
4293150100 Pop Rivet, 3/16''Pop Rivet, 3/16''
-
5293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
6517124300 WasherWasher
-
7293100003 Nut M6Nut M6
-
8207152544 Hex Screw M5 X 25Hex Screw M5 X 25
-
9391301600 WasherWasher
-
10233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
11502006729 RH Bottom PanRH Bottom Pan
-
12502006730 LH Bottom PanLH Bottom Pan
-
13502006799 BracketBracket
-
14390909200 Avex RivetAvex Rivet
-
15390410100 Pop Rivet 3/16''Pop Rivet 3/16''
-
16207161444 Hex Screw M6 X 14Hex Screw M6 X 14
-
17502006680 Bumper, Yellow, B-190Bumper, Yellow, B-190
-
18234161471 Lock Washer 6 mmLock Washer 6 mm
-
19224061121 Flat WasherFlat Washer
-
20502006772 SupportSupport
-
21414916600 Nylon CapNylon Cap
