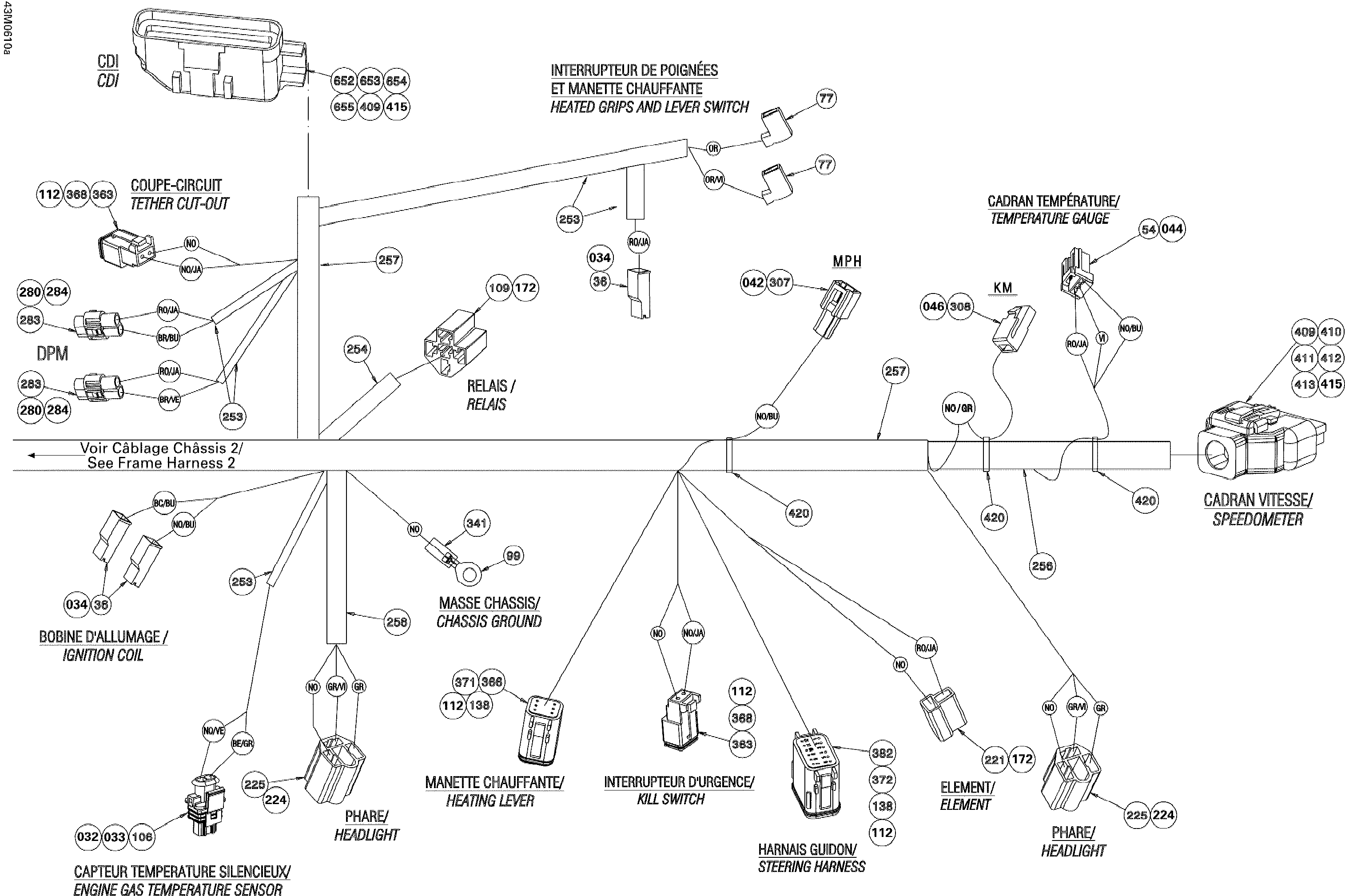

10- Electrical Harness 1 для BRP Ski-Doo MX Z 440 Racing - 2006
-
№АртикулНазвание
-
1515176359 Frame Harness. Includes 1 to 655Frame Harness. Includes 1 to 655
-
32278000998 Female TerminalFemale Terminal
-
33278000999 SealSeal
-
34409010100 Female TerminalFemale Terminal
-
36409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
42515175273 Male TerminalMale Terminal
-
44515175231 Female TerminalFemale Terminal
-
46515175282 Female TerminalFemale Terminal
-
54515175495 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
77409010300 Female TerminalFemale Terminal
-
99278000992 Ring TerminalRing Terminal
-
106278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
109409209900 Female Terminal Housing, 5 CircuitsFemale Terminal Housing, 5 Circuits
-
110278000631 Male TerminalMale Terminal
-
112278000632 Female TerminalFemale Terminal
-
116278000635 Female Terminal Housing, 4 CircuitsFemale Terminal Housing, 4 Circuits
-
126409207500 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
127409207600 Male Lock, 3 CircuitsMale Lock, 3 Circuits
-
128278000636 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
138293000052 Sealing CapSealing Cap
-
172561503100 Female TerminalFemale Terminal
-
205409011600 Female TerminalFemale Terminal
-
206409004200 Female TerminalFemale Terminal
-
221409204600 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
224515175321 Female TerminalFemale Terminal
-
225409202700 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
226278000222 Male TerminalMale Terminal
-
232278000281 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
253515175442 Tubing, 6 mmTubing, 6 mm
-
254409901700 Tubing, 9 mmTubing, 9 mm
-
255409901800 Tubing, 13 mmTubing, 13 mm
-
257409901600 Tubing, 19 mmTubing, 19 mm
-
258415079900 Tubing, 10 mmTubing, 10 mm
-
284409012300 SealSeal
-
307515175509 Male Terminal Housing, 1 CircuitMale Terminal Housing, 1 Circuit
-
308515175510 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
320515175567 Female TerminalFemale Terminal
-
348278001673 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
350278001671 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
358515175665 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
359515175666 Male Terminal Housing, 3 CircuitsMale Terminal Housing, 3 Circuits
-
363515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
364515175671 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
366515175673 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
368515175675 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
369515175676 Female Lock, 3 CircuitsFemale Lock, 3 Circuits
-
371515175678 Female Lock, 6 CircuitsFemale Lock, 6 Circuits
-
372515175679 Female Lock, 12 CircuitsFemale Lock, 12 Circuits
-
382515175704 Female Terminal Housing, 12 CircuitsFemale Terminal Housing, 12 Circuits
-
409515175812 PlugPlug
-
410515175801 Female Terminal Housing, 24 CircuitsFemale Terminal Housing, 24 Circuits
-
411515175802 RetainerRetainer
-
412515175803 Wire SealWire Seal
-
413515175804 BlockBlock
-
415515175806 Female TerminalFemale Terminal
-
420414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
484415128501 SealSeal
-
652515176221 Female HousingFemale Housing
-
653515176222 Wire SealWire Seal
-
654515176223 Female Terminal Housing, 36 CircuitsFemale Terminal Housing, 36 Circuits
-
655515176224 Terminal SupportTerminal Support
