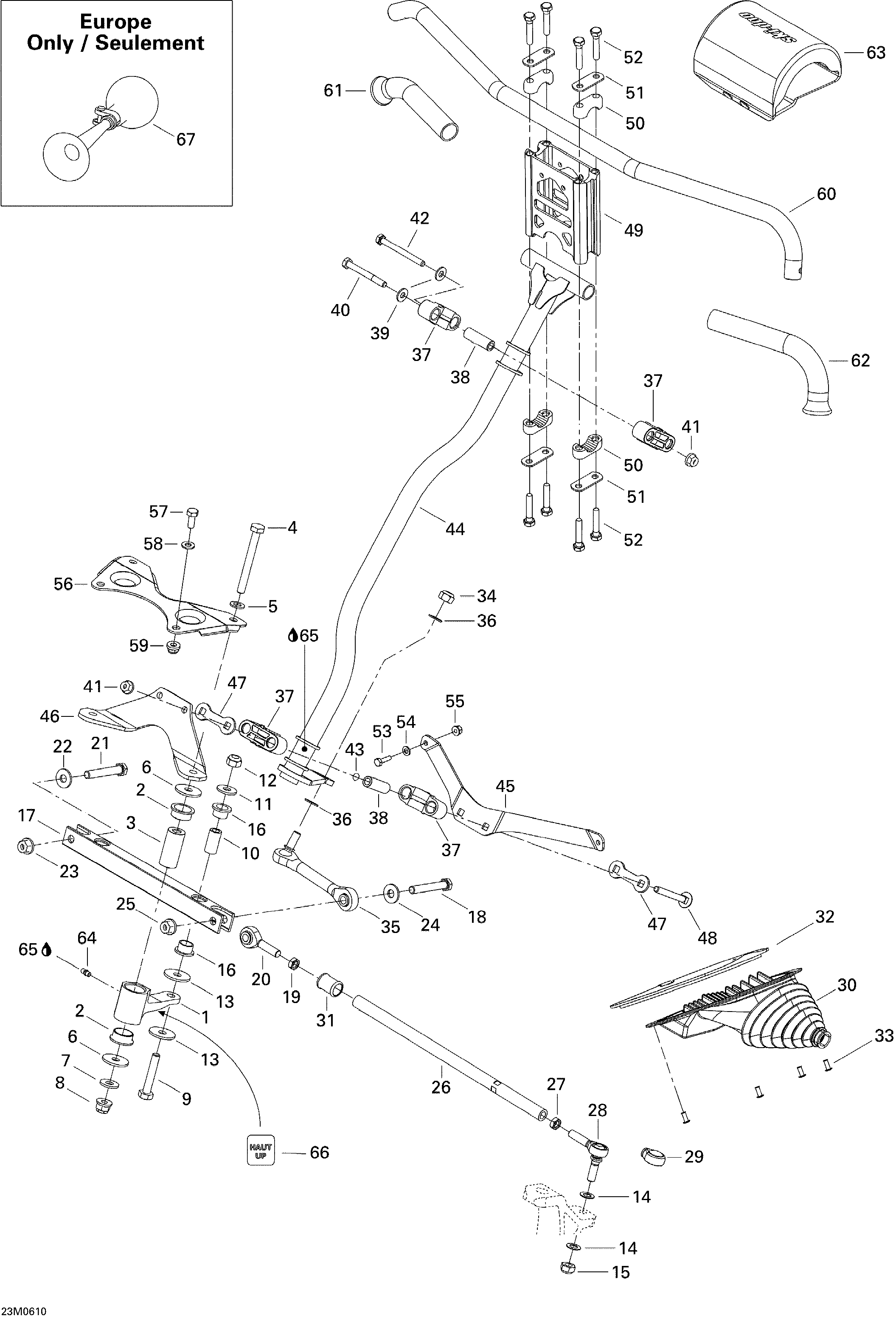

07- Steering System для BRP Ski-Doo MX Z 440 Racing - 2006
-
№АртикулНазвание
-
1506151627 RH Swivel ArmRH Swivel Arm
-
1506151628 LH Swivel ArmLH Swivel Arm
-
2415041100 CushionCushion
-
3506151272 Swivel PivotSwivel Pivot
-
4207009086 Hex Screw M10 X 90Hex Screw M10 X 90
-
5503183800 WasherWasher
-
6506150000 Washer 10 mmWasher 10 mm
-
7506151251 WasherWasher
-
8732610084 Hex Flanged Nut M10Hex Flanged Nut M10
-
9207005544 Hex Screw M10 X 55Hex Screw M10 X 55
-
10506151273 Pivot BarPivot Bar
-
11224002251 Flat WasherFlat Washer
-
12233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
13250200032 WasherWasher
-
14503175800 WasherWasher
-
15250100073 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
16506150200 Bushing SwivelBushing Swivel
-
17506151328 Swivel BarSwivel Bar
-
18207006544 Hex Screw M10 X 65Hex Screw M10 X 65
-
19250100016 LH Hex Jam Nut M10LH Hex Jam Nut M10
-
20506152018 LH Ball JointLH Ball Joint
-
21207004544 Hex Screw M10 X 45Hex Screw M10 X 45
-
22224002251 Flat WasherFlat Washer
-
23233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
24224002251 Flat WasherFlat Washer
-
25233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
26506151340 Tie-RodTie-Rod
-
27732610010 RH Hex Jam Nut M10RH Hex Jam Nut M10
-
28506152017 Ball JointBall Joint
-
29506151650 Protection CapProtection Cap
-
30506151725 RH Tie-Rod CapRH Tie-Rod Cap
-
30506151726 LH Tie-Rod CapLH Tie-Rod Cap
-
31572036500 BushingBushing
-
32506151356 RH Retainer RingRH Retainer Ring
-
32506151357 LH Retainer RingLH Retainer Ring
-
33390909100 Avex RivetAvex Rivet
-
34250100073 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
35506151621 Ball Joint, DoubleBall Joint, Double
-
36503175800 WasherWasher
-
37506150400 Housing HalfHousing Half
-
38506150500 Housing BushingHousing Bushing
-
39503189157 WasherWasher
-
40207087044 Hex Screw M8 X 70Hex Screw M8 X 70
-
41233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
42207088044 Hex Screw M8 X 80Hex Screw M8 X 80
-
43506151140 O-RingO-Ring
-
44506151886 Main TubeMain Tube
-
45506151854 Rear SupportRear Support
-
46506151330 Steering Shaft SupportSteering Shaft Support
-
47506150600 Stopper PlateStopper Plate
-
48207787044 Carriage Bolt M8 X 70Carriage Bolt M8 X 70
-
49506151739 Handle Bar ExtensionHandle Bar Extension
-
50506151622 Steering SupportSteering Support
-
51506151196 ReinforcementReinforcement
-
52250000074 Hex Screw With Nylon M8 X 40Hex Screw With Nylon M8 X 40
-
53207162060 Hex Forming Screw M6 X 20Hex Forming Screw M6 X 20
-
54234061410 Flat Washer M6Flat Washer M6
-
55233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
56506151536 Pivot SupportPivot Support
-
57207182544 Hex Screw M8 X 25Hex Screw M8 X 25
-
58234081410 Flat Washer 8 mmFlat Washer 8 mm
-
59233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
60506151820 Handle BarHandle Bar
-
61506151530 RH Grip 6-1/2''RH Grip 6-1/2''
-
62506151541 LH Grip 8-3/4''LH Grip 8-3/4''
-
63506151888 Steering PadSteering Pad
-
64408200700 Grease FittingGrease Fitting
-
65219700417 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
66516001750 Haut/Up DecalHaut/Up Decal
-
67415040700 Horn. EuropeHorn. Europe
