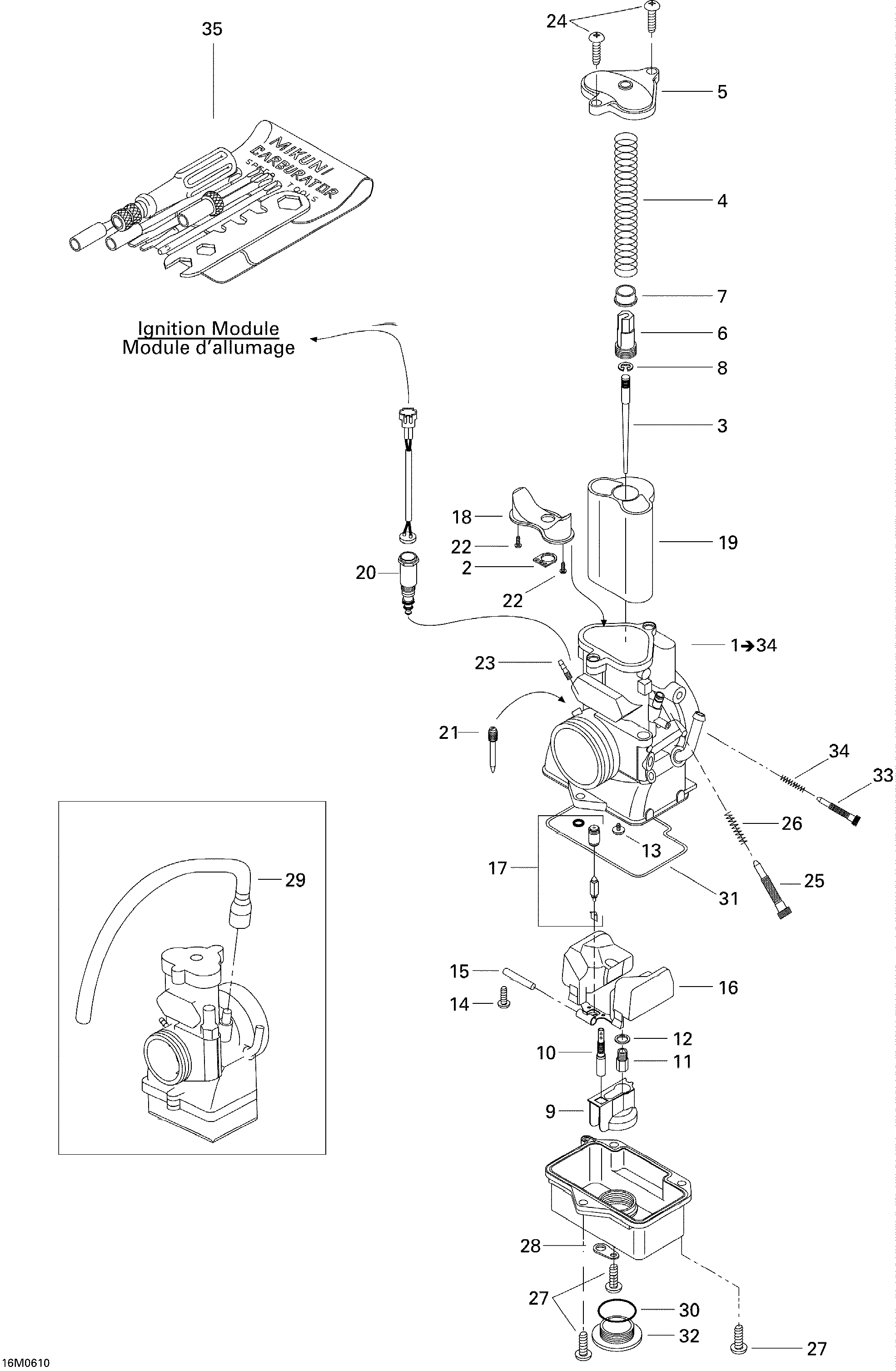

02- Carburetor для BRP Ski-Doo MX Z 440 Racing - 2006
-
№АртикулНазвание
-
1403138795 Carburator TMX34-34. Includes 1 to 34Carburator TMX34-34. Includes 1 to 34
-
2404161865 PackingPacking
-
3404162065 NeedleNeedle
-
4404161864 SpringSpring
-
5404161857 Top CapTop Cap
-
6404161856 Guide HolderGuide Holder
-
7404161863 RingRing
-
8404152200 E-RingE-Ring
-
9404161855 HolderHolder
-
10404161870 Jet-Pilot 25Jet-Pilot 25
-
11404106000 Main Jet 350Main Jet 350
-
12404161862 WasherWasher
-
13404161861 ScrewScrew
-
14404138600 ScrewScrew
-
15404161860 PinPin
-
16404161859 FloatFloat
-
17404161868 Needle Valve 1,5Needle Valve 1,5
-
18404161974 VenturiVenturi
-
19404161867 Piston Valve 4.0Piston Valve 4.0
-
20404161998 SelenoidSelenoid
-
21404162085 Pilot Jet 140Pilot Jet 140
-
22404161852 ScrewScrew
-
23404153400 NippleNipple
-
24404138700 ScrewScrew
-
25404161850 AdjusterAdjuster
-
26404161849 SpringSpring
-
27404161848 ScrewScrew
-
28404103000 PlatePlate
-
29404161851 Air Vent TubeAir Vent Tube
-
30404107300 O-RingO-Ring
-
31404161993 O-RingO-Ring
-
32404107400 Drain Plug ScrewDrain Plug Screw
-
33404161866 AdjusterAdjuster
-
34404132400 SpringSpring
-
35404112000 Tool KitTool Kit
