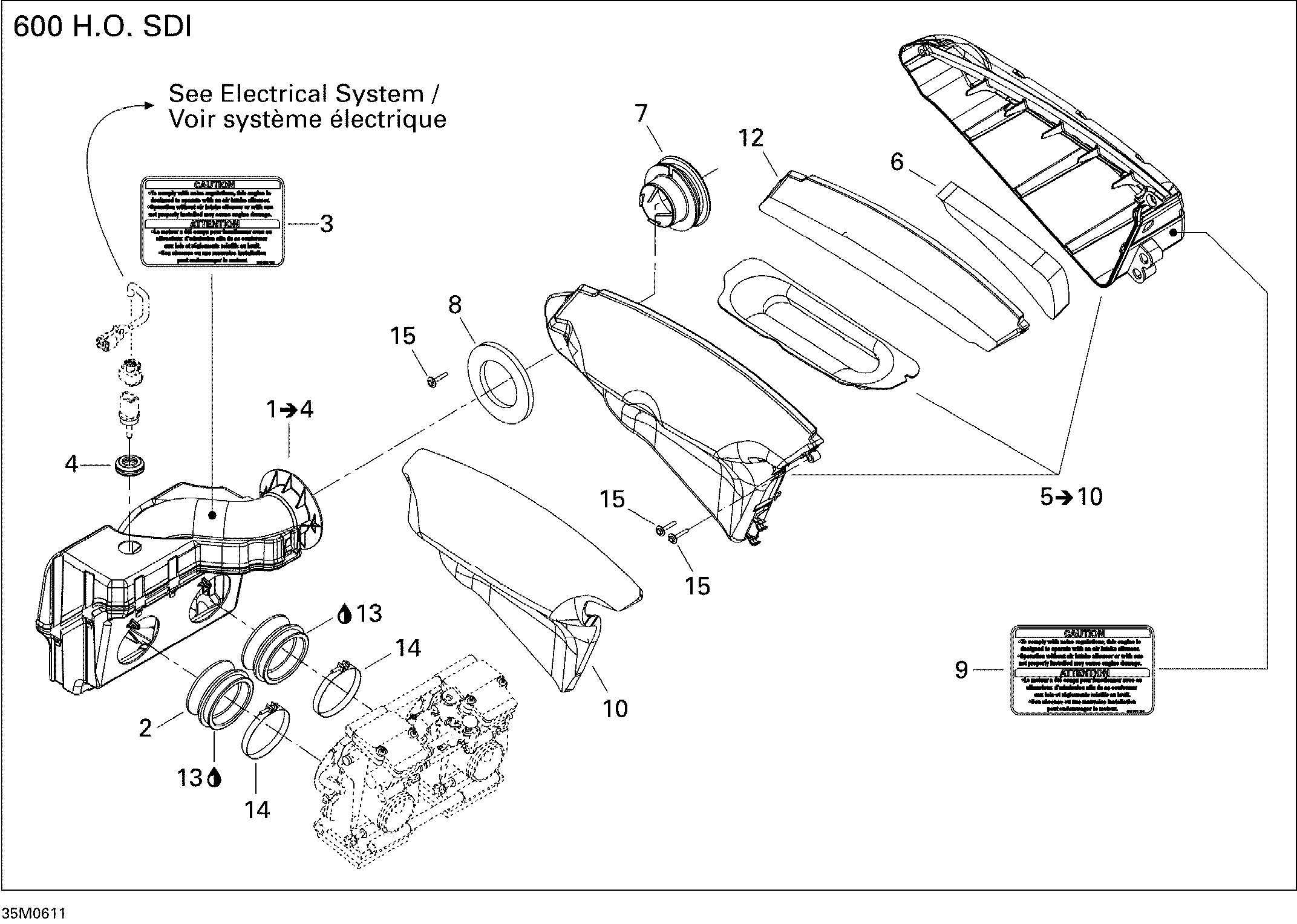

02- Air Intake System для BRP Ski-Doo MX Z 600 HO SDI Adrenaline & X - 2006
-
№АртикулНазвание
-
1508000459 Chamber Ass'y. Includes 1 to 4Chamber Ass'y. Includes 1 to 4
-
2508000374 Air Intake AdaptorAir Intake Adaptor
-
3516002715 Caution Label, Air IntakeCaution Label, Air Intake
-
4570065500 GrommetGrommet
-
5508000392 Secondary Chamber Assy. Includes 5 to 10Secondary Chamber Assy. Includes 5 to 10
-
6508000145 Inner FoamInner Foam
-
7508000240 GuideGuide
-
8508000199 Outer FoamOuter Foam
-
9516002715 Caution Label, Air IntakeCaution Label, Air Intake
-
10508000310 Outer FoamOuter Foam
-
12508000394 Air FilterAir Filter
-
13413803200 Injection Oil (205 Liters)Injection Oil (205 Liters)
-
13413802900 Injection Oil (12 X 1 Liter)Injection Oil (12 X 1 Liter)
-
13413803000 Injection Oil (3 X 4 Liters)Injection Oil (3 X 4 Liters)
-
14508000346 Gemi ClampGemi Clamp
-
15250000101 Screw M4 X 25Screw M4 X 25
