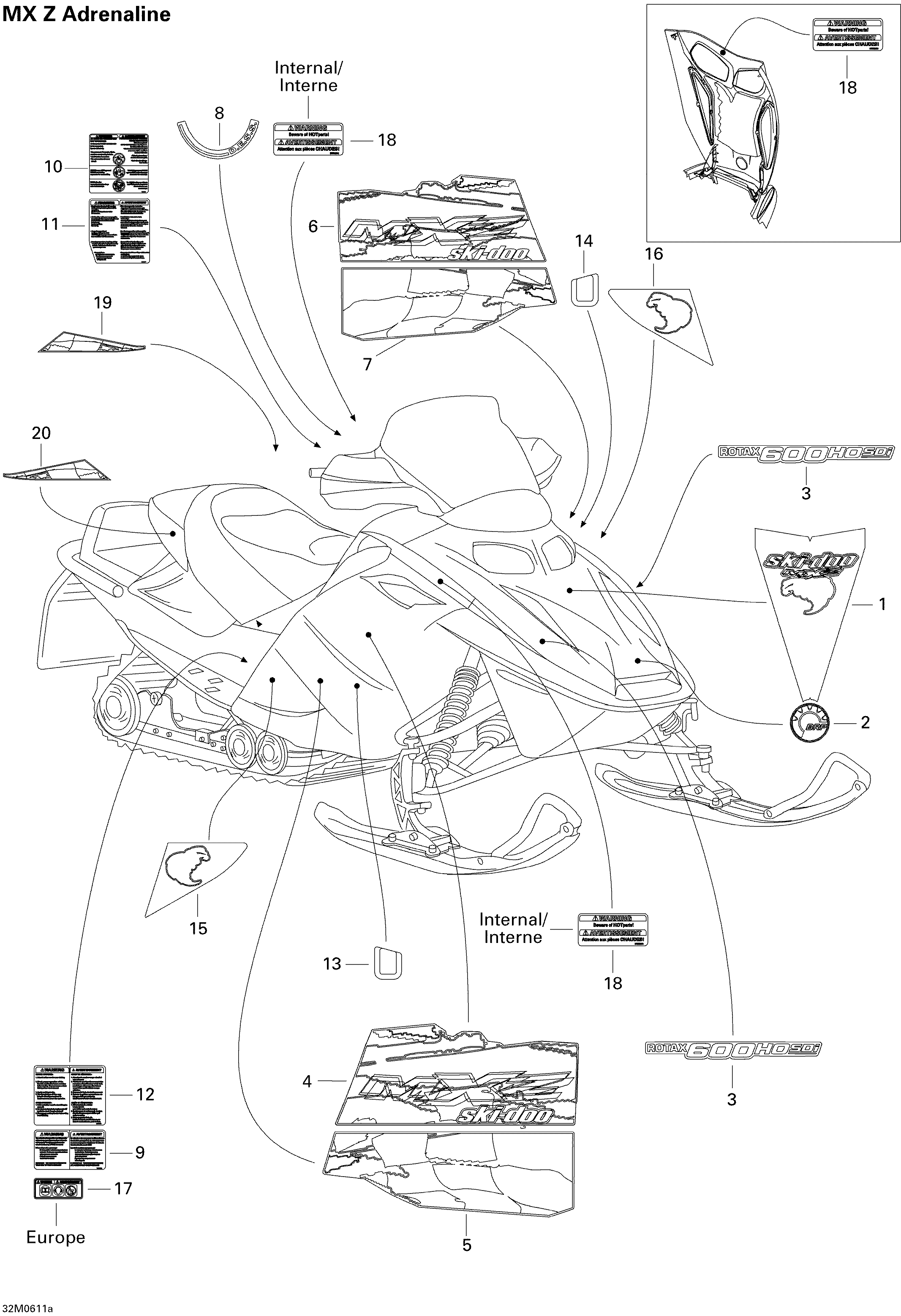

09- Decals ADR для BRP Ski-Doo MX Z 600 HO SDI Adrenaline & X - 2006
-
№АртикулНазвание
-
1516002753 Hood DecalHood Decal
-
2219902468 Logo BrpLogo Brp
-
3516002759 Hood Decal 600 H.o. SDIHood Decal 600 H.o. SDI
-
4516002760 RH Side DecalRH Side Decal
-
5516002764 RH Lower Side DecalRH Lower Side Decal
-
6516002761 LH Side DecalLH Side Decal
-
7516002765 LH Lower Side DecalLH Lower Side Decal
-
8516001335 Dess DecalDess Decal
-
9516003026 Security Label, Passenger NumberSecurity Label, Passenger Number
-
10516002908 Security Label, GeneralSecurity Label, General
-
11516003029 Security Label, FamiliarizationSecurity Label, Familiarization
-
12516003024 Security Label, StartingSecurity Label, Starting
-
13516001910 RH Protector DecalRH Protector Decal
-
14516001911 LH Protector DecalLH Protector Decal
-
15516002769 RH Lower Rear Decal. Black-Black ModelRH Lower Rear Decal. Black-Black Model
-
15516002773 RH Lower Rear Decal. Yellow-Black ModelRH Lower Rear Decal. Yellow-Black Model
-
16516002768 LH Lower Rear Decal. Black-Black ModelLH Lower Rear Decal. Black-Black Model
-
16516002772 LH Lower Rear Decal. Yellow-Black ModelLH Lower Rear Decal. Yellow-Black Model
-
17516003027 Europe Pictogram Decal. EuropeEurope Pictogram Decal. Europe
-
18516002965 Security Label, Hot PartsSecurity Label, Hot Parts
-
19516002775 LH Cover DecalLH Cover Decal
-
20516002774 RH Cover DecalRH Cover Decal
