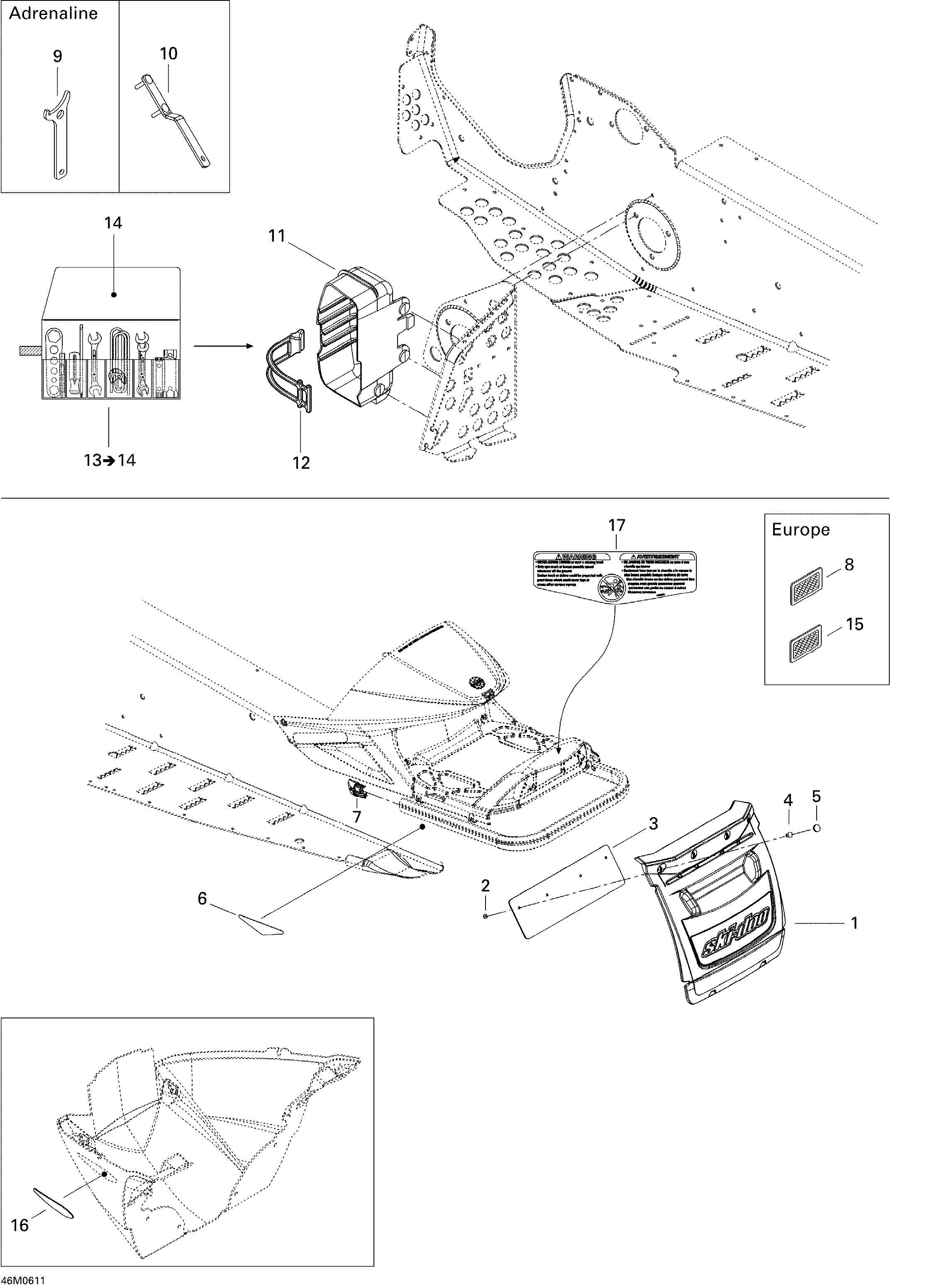

09- Utilities для BRP Ski-Doo MX Z 600 HO SDI Adrenaline & X - 2006
-
№АртикулНазвание
-
1520000449 Snow GuardSnow Guard
-
2517225900 Flat WasherFlat Washer
-
3520000423 Snow Guard ReinforcementSnow Guard Reinforcement
-
4390906800 Pop Rivet 3/16''Pop Rivet 3/16''
-
5277000203 Cap (Black)Cap (Black)
-
6520000237 Rear Reflector, RedRear Reflector, Red
-
6520000311 Rear Reflector (Amber). EuropeRear Reflector (Amber). Europe
-
7520000397 LH CapLH Cap
-
7520000398 RH CapRH Cap
-
8520000271 Reflector Amber (Europe). EuropeReflector Amber (Europe). Europe
-
9529032900 Adjustment Wrench. AdrenalineAdjustment Wrench. Adrenaline
-
10520000126 Adjustment WrenchAdjustment Wrench
-
11520000322 TrunkTrunk
-
12520000528 LatchLatch
-
13529035596 Tool Kit. Includes 13 to 14Tool Kit. Includes 13 to 14
-
14520000047 Tool BagTool Bag
-
15415037900 White Reflector, Europe. EuropeWhite Reflector, Europe. Europe
-
16516001336 Front ReflectorFront Reflector
-
17516003034 Track Security Warning LabelTrack Security Warning Label
