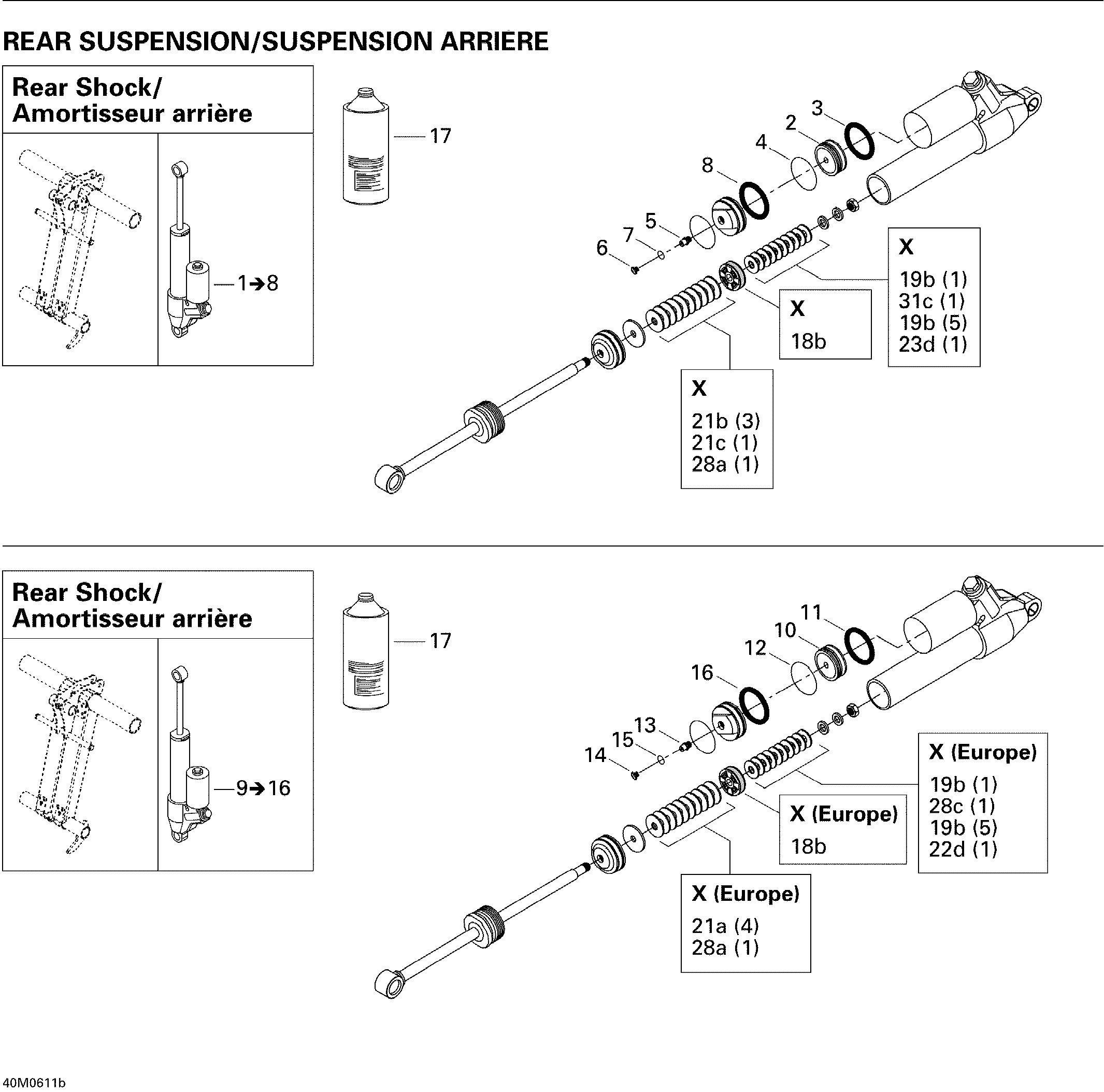

08- Take Apart Shock, Rear 2 для BRP Ski-Doo MX Z 600 HO SDI Adrenaline & X - 2006
-
№АртикулНазвание
-
1503191204 Rear Shock. Includes 1 to 8 / XRear Shock. Includes 1 to 8 / X
-
2415093812 Free Piston. XFree Piston. X
-
3415093807 O-Ring. XO-Ring. X
-
4415093806 Piston Ring. XPiston Ring. X
-
5505070398 Air Valve Ring. XAir Valve Ring. X
-
6505070399 Screw. XScrew. X
-
7505070400 O-Ring. XO-Ring. X
-
8415093804 O-Ring. XO-Ring. X
-
9503191221 Rear Shock. Includes 9 to 16 / X (Europe)Rear Shock. Includes 9 to 16 / X (Europe)
-
10415093812 Free Piston. X (Europe)Free Piston. X (Europe)
-
11415093807 O-Ring. X (Europe)O-Ring. X (Europe)
-
12415093806 Piston Ring. X (Europe)Piston Ring. X (Europe)
-
13505070398 Air Valve Ring. X (Europe)Air Valve Ring. X (Europe)
-
14505070399 Screw. X (Europe)Screw. X (Europe)
-
15505070400 O-Ring. X (Europe)O-Ring. X (Europe)
-
16415093804 O-Ring. X (Europe)O-Ring. X (Europe)
-
17293600035 Shock Oil, 1 LiterShock Oil, 1 Liter
-
18a414888304 Piston (C36)Piston (C36)
-
18c414888305 Piston (2 X 0.3-2) (C36)Piston (2 X 0.3-2) (C36)
-
18e414888306 Piston (2 X 0.3-4) (C36)Piston (2 X 0.3-4) (C36)
-
18g414888307 Piston (2 X 0.3-6) (C36)Piston (2 X 0.3-6) (C36)
-
19a415039100 Leaf Valve O30 X 0.254 (C36)Leaf Valve O30 X 0.254 (C36)
-
19b414888318 Leaf Valve O30 X 0.203 (C36)Leaf Valve O30 X 0.203 (C36)
-
19c414888319 Leaf Valve O30 X 0.152 (C36)Leaf Valve O30 X 0.152 (C36)
-
20b414888320 Leaf Valve O28 X 0.203 (C36)Leaf Valve O28 X 0.203 (C36)
-
20c414888321 Leaf Valve O28 X 0.152 (C36)Leaf Valve O28 X 0.152 (C36)
-
21a415039000 Leaf Valve O26 X 0.254 (C36)Leaf Valve O26 X 0.254 (C36)
-
21b414888322 Leaf Valve O26 X 0.203 (C36)Leaf Valve O26 X 0.203 (C36)
-
21c414888323 Leaf Valve O26 X 0.152 (C36)Leaf Valve O26 X 0.152 (C36)
-
23b414888324 Leaf Valve O22 X 0.203 (C36)Leaf Valve O22 X 0.203 (C36)
-
23C414888325 Leaf Valve O22 X 0.152 (C36)Leaf Valve O22 X 0.152 (C36)
-
24d414888340 Leaf Valve O21 X 0.114 (C36)Leaf Valve O21 X 0.114 (C36)
-
25b414888326 Leaf Valve O20 X 0.203 (C36)Leaf Valve O20 X 0.203 (C36)
-
25c414888327 Leaf Valve O20 X 0.152 (C36)Leaf Valve O20 X 0.152 (C36)
-
25d414888328 Leaf Valve O20 X 0.114 (C36)Leaf Valve O20 X 0.114 (C36)
-
27b414888329 Leaf Valve O18 X 0.203 (C36)Leaf Valve O18 X 0.203 (C36)
-
27C414888330 Leaf Valve O18 X 0.152 (C36)Leaf Valve O18 X 0.152 (C36)
-
29a414888331 Leaf Valve O16 X 0.254 (C36)Leaf Valve O16 X 0.254 (C36)
-
29b414888332 Leaf Valve O16 X 0.203 (C36)Leaf Valve O16 X 0.203 (C36)
-
29c414888333 Leaf Valve O16 X 0.152 (C36)Leaf Valve O16 X 0.152 (C36)
-
29D415038900 Leaf Valve O16 X 0.114 (C36)Leaf Valve O16 X 0.114 (C36)
-
30a414888334 Leaf Valve O15 X 0.254 (C36)Leaf Valve O15 X 0.254 (C36)
-
30b414888335 Leaf Valve O15 X 0.203 (C36)Leaf Valve O15 X 0.203 (C36)
-
30c414888336 Leaf Valve O15 X 0.152 (C36)Leaf Valve O15 X 0.152 (C36)
-
30d414888337 Leaf Valve O15 X 0.114 (C36)Leaf Valve O15 X 0.114 (C36)
-
33a503189538 Leaf Valve O12 X 0.254 (C36)Leaf Valve O12 X 0.254 (C36)
-
33b414888338 Leaf Valve O12 X 0.203 (C36)Leaf Valve O12 X 0.203 (C36)
-
33c414888339 Leaf Valve O12 X 0.152 (C36)Leaf Valve O12 X 0.152 (C36)
-
33d415038800 Leaf Valve O12 X 0.114 (C36)Leaf Valve O12 X 0.114 (C36)
