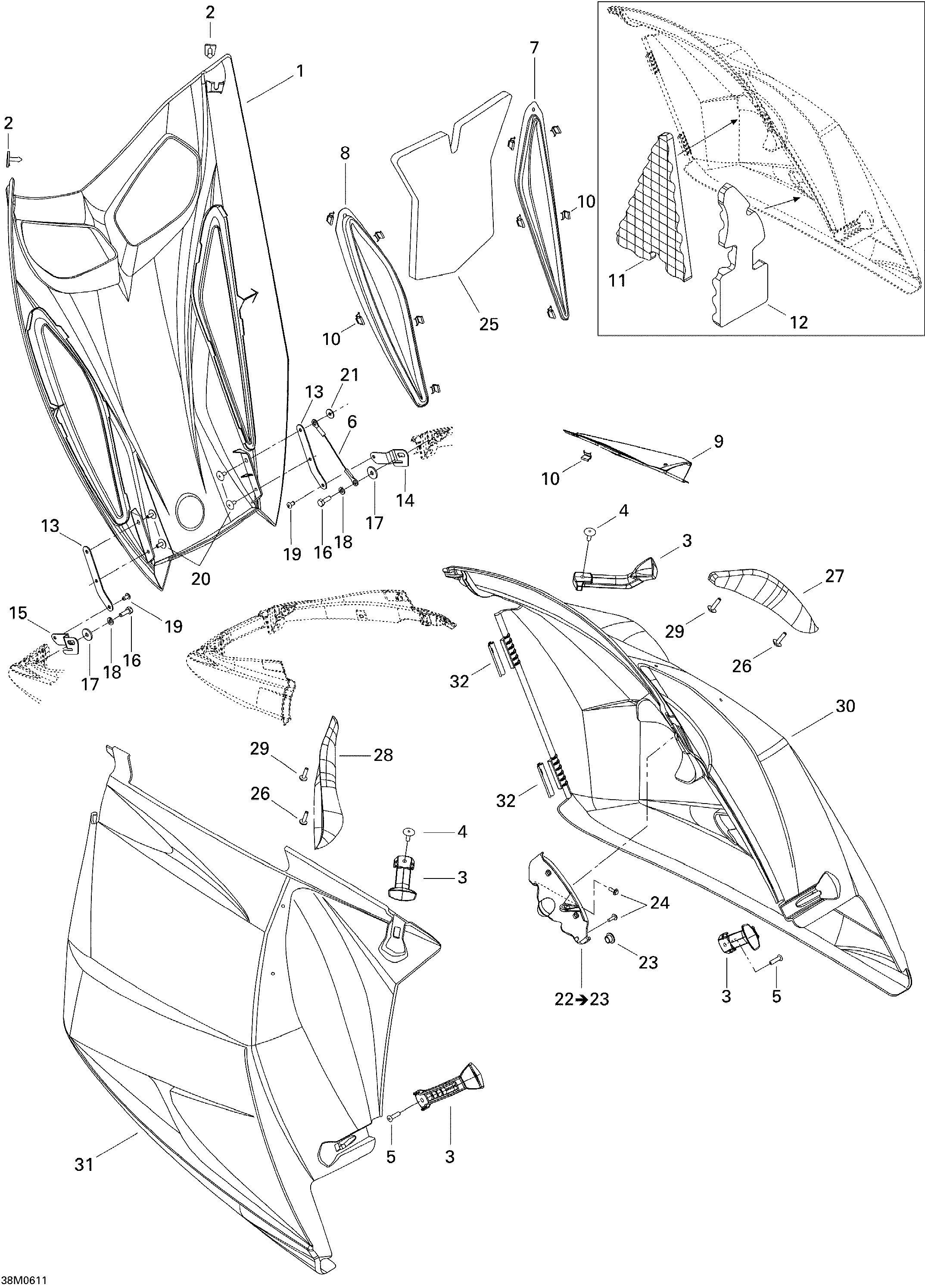

09- Hood для BRP Ski-Doo MX Z 600 HO SDI Adrenaline & X - 2006
-
№АртикулНазвание
-
1517302788 Hood, Black, B-160. X & Adrenaline Black-Black ModelsHood, Black, B-160. X & Adrenaline Black-Black Models
-
1517302807 Hood, Yellow, B-190. Adrenaline Yellow-Black ModelHood, Yellow, B-190. Adrenaline Yellow-Black Model
-
2517302543 PinPin
-
3517302448 Panel LatchPanel Latch
-
4293150087 Pop Rivet 3/16''Pop Rivet 3/16''
-
5390410100 Pop Rivet 3/16''Pop Rivet 3/16''
-
6517302673 Retainer CableRetainer Cable
-
7517302936 RH Hood GrillRH Hood Grill
-
8517302937 LH Hood GrillLH Hood Grill
-
9517302938 RH Panel GrillRH Panel Grill
-
10517302789 ClipClip
-
11517303082 RH Panel Front FoamRH Panel Front Foam
-
12517303492 RH Panel Rear FoamRH Panel Rear Foam
-
13517302544 Upper Half-HingeUpper Half-Hinge
-
14517302444 RH Lower Half-HingeRH Lower Half-Hinge
-
15517302445 LH Lower Half-HingeLH Lower Half-Hinge
-
16207161844 Hex Screw M6 X 18Hex Screw M6 X 18
-
17224061121 Flat WasherFlat Washer
-
18234161471 Lock Washer 6 mmLock Washer 6 mm
-
19390909200 Avex RivetAvex Rivet
-
20390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
21517225900 Flat WasherFlat Washer
-
22517303482 RH Console. Includes 33 to 23RH Console. Includes 33 to 23
-
23275500241 PlugPlug
-
24241151640 Hex Flanged Screw K50 X 16Hex Flanged Screw K50 X 16
-
25517303081 Hood FoamHood Foam
-
26250000084 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
27517302800 RH Air DeflectorRH Air Deflector
-
28517302801 LH Air DeflectorLH Air Deflector
-
29250000101 Screw M4 X 25Screw M4 X 25
-
30517303179 RH Panel, Black, B-160. Adrenaline & X Black-Black ModelsRH Panel, Black, B-160. Adrenaline & X Black-Black Models
-
30517303180 RH Panel, Yellow, B-190. X, Black-Yellow ModelRH Panel, Yellow, B-190. X, Black-Yellow Model
-
31517302803 LH Panel, Black, B-160. Adrenaline & X Black-Black ModelsLH Panel, Black, B-160. Adrenaline & X Black-Black Models
-
31517302805 LH Panel, Yellow B-190. X, Black-Yellow ModelLH Panel, Yellow B-190. X, Black-Yellow Model
-
32517302823 Hinge LockHinge Lock
