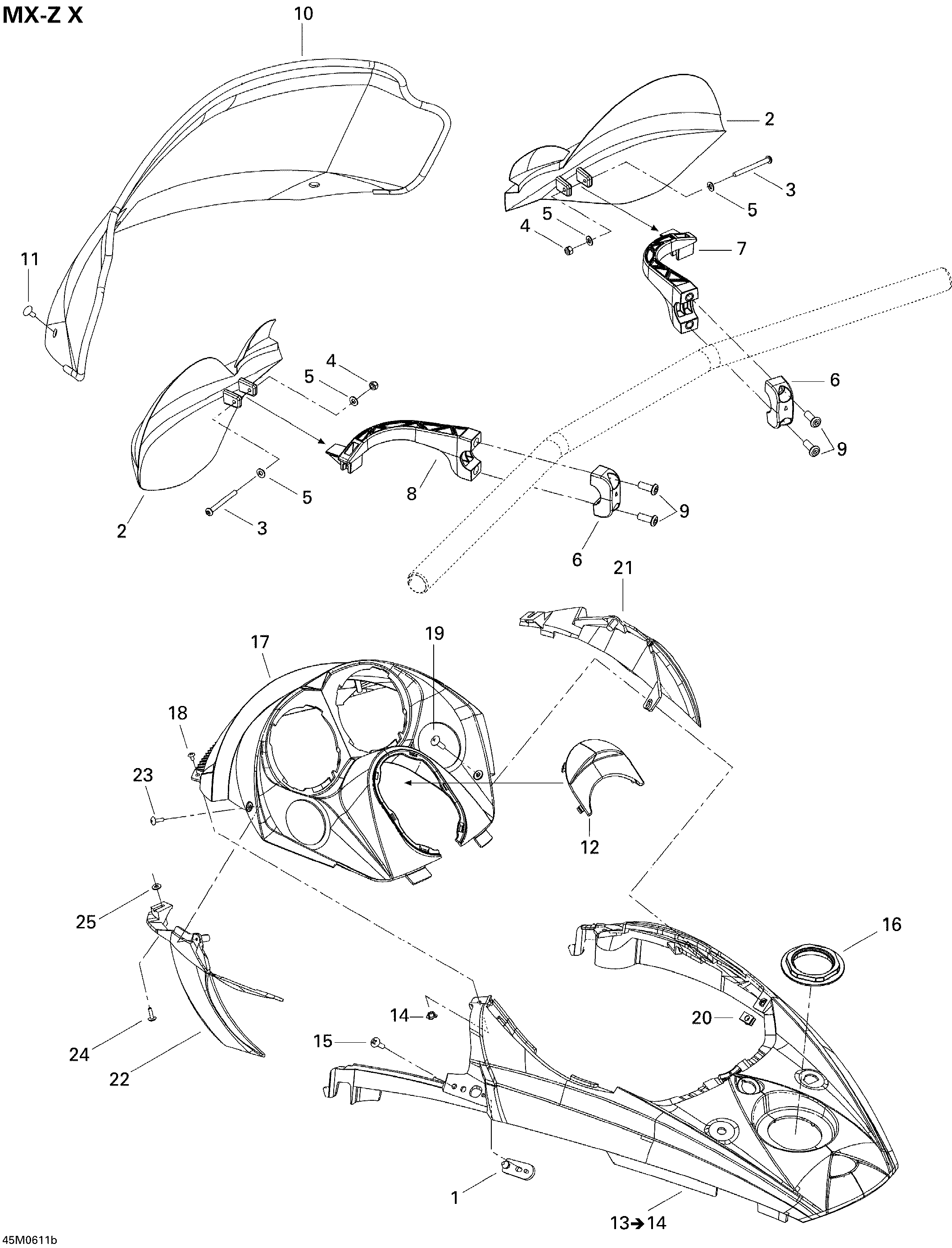

09- Windshield And Console X для BRP Ski-Doo MX Z 600 HO SDI Adrenaline & X - 2006
-
№АртикулНазвание
-
1517302616 Hood LatchHood Latch
-
2415128768 Air Deflector Kit, YellowAir Deflector Kit, Yellow
-
3205444086 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
4232541484 Elastic Stop Nut M6Elastic Stop Nut M6
-
5234041480 Flat Washer 4 mmFlat Washer 4 mm
-
6517303264 U-ClampU-Clamp
-
7517303590 RH Deflector SupportRH Deflector Support
-
8517303591 LH Deflector SupportLH Deflector Support
-
9250000172 Socket Head Screw M6 X 16Socket Head Screw M6 X 16
-
10517303045 Medium WindshieldMedium Windshield
-
11293150089 Tuflok Plastique RivetTuflok Plastique Rivet
-
12517302592 Console CapConsole Cap
-
13517303066 Center ConsoleCenter Console
-
14250100030 T Flanged Nut, M4T Flanged Nut, M4
-
15250000128 Torx Screw M6 X 20Torx Screw M6 X 20
-
16517302575 Console NutConsole Nut
-
17517303472 Indicator SupportIndicator Support
-
18250000127 Torx Screw M4 X 8Torx Screw M4 X 8
-
19250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
20250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
21517302798 RH Air DeflectorRH Air Deflector
-
22517302799 LH Air DeflectorLH Air Deflector
-
23250000084 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
24250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
25234042600 Flat Washer 4 mmFlat Washer 4 mm
