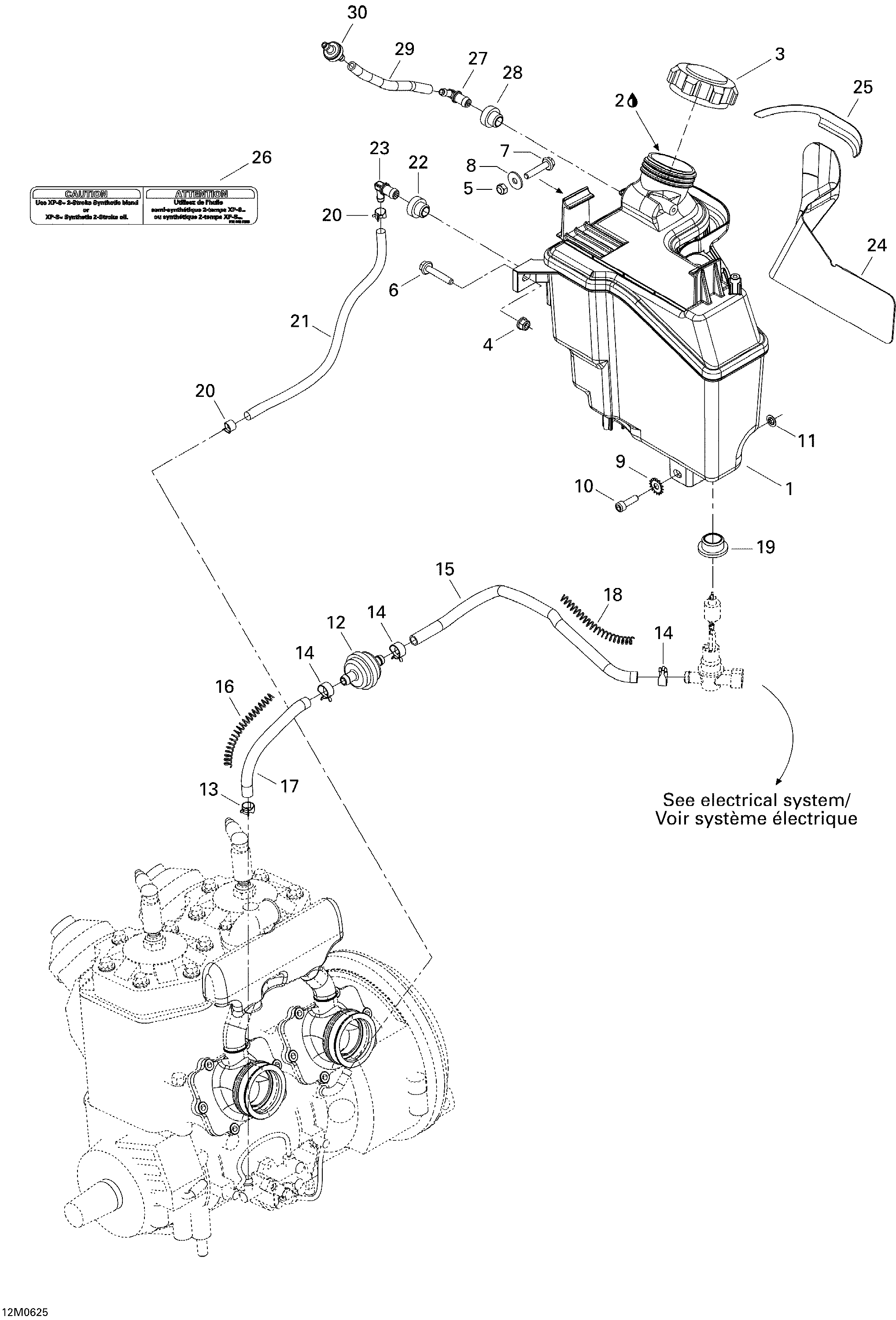

02- Oil System для BRP Ski-Doo MX Z 600 HO SDI Renegade & Renegade X - 2006
-
№АртикулНазвание
-
1519000111 Oil TankOil Tank
-
2293600071 Semi-synthetic Oil (12 X 1 Liter)Semi-synthetic Oil (12 X 1 Liter)
-
2293600072 Semi-synthetic Oil (3 X 4 Liters)Semi-synthetic Oil (3 X 4 Liters)
-
2293600073 Semi-synthetic Oil (205 Liters)Semi-synthetic Oil (205 Liters)
-
3519000033 CapCap
-
4233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
5232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
6207663544 Hex Flanged Screw M6 X 35Hex Flanged Screw M6 X 35
-
7207663044 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
8391302000 Flat WasherFlat Washer
-
9250200041 Serrated Lock Washer 6 mmSerrated Lock Washer 6 mm
-
10205062044 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
11732610072 Push NutPush Nut
-
12414536500 FilterFilter
-
13414420700 Universal Spring Clamp, 3/8''Universal Spring Clamp, 3/8''
-
14414415200 Spring ClampSpring Clamp
-
15415080700 LineLine
-
16519000064 SpringSpring
-
17415080700 LineLine
-
18519000065 SpringSpring
-
19570023000 Insulating RingInsulating Ring
-
20414554800 Spring ClampSpring Clamp
-
21415080200 LineLine
-
22513032908 GrommetGrommet
-
23414580700 Elbow Male ConnectorElbow Male Connector
-
24519000054 Reflective SheetReflective Sheet
-
25519000072 Reflective SheetReflective Sheet
-
26516002325 Warning Decal, OilWarning Decal, Oil
-
27414580700 Elbow Male ConnectorElbow Male Connector
-
28513032908 GrommetGrommet
-
29415080200 LineLine
-
30275500398 Check ValveCheck Valve
