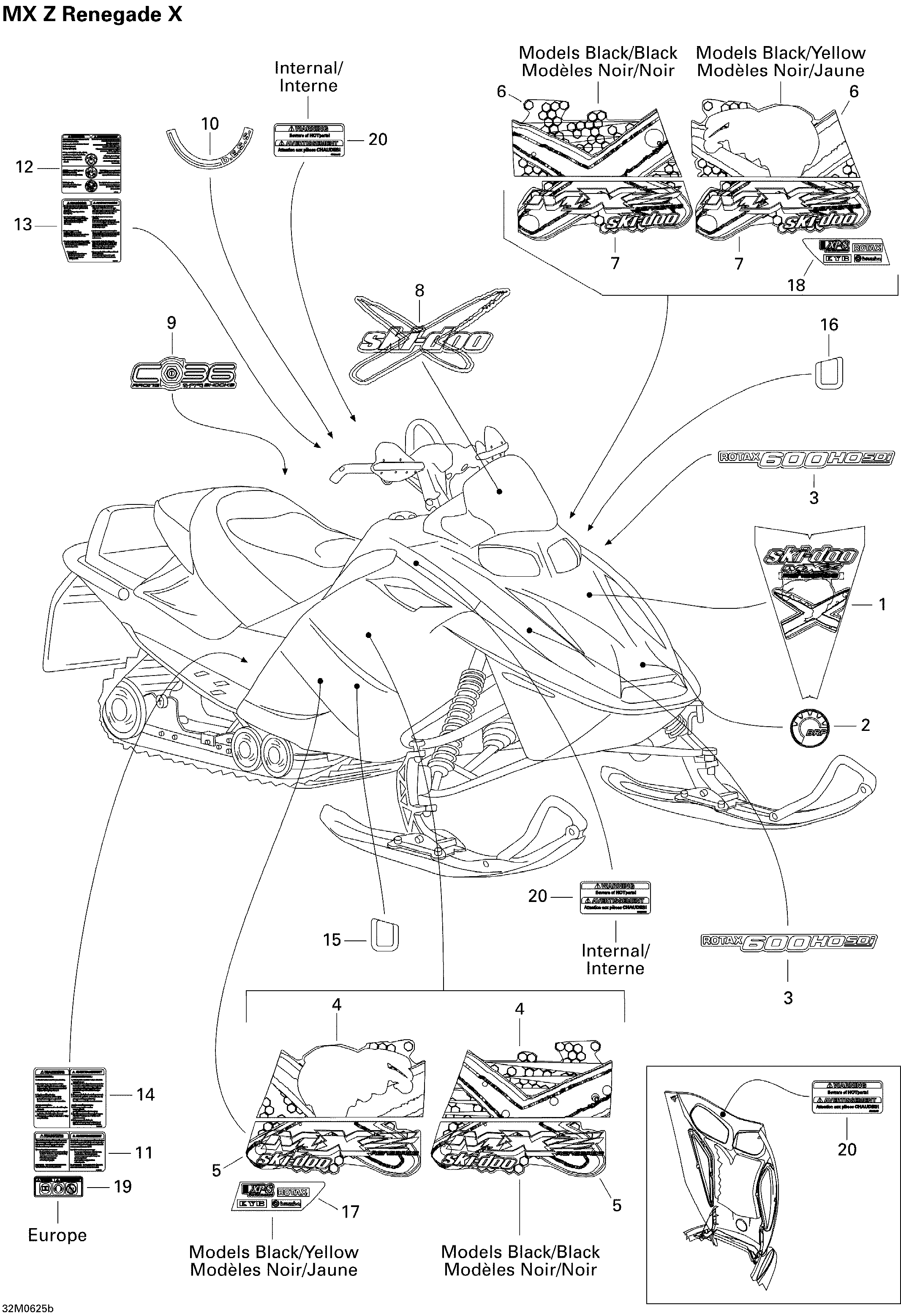

09- Decals Renegade X для BRP Ski-Doo MX Z 600 HO SDI Renegade & Renegade X - 2006
-
№АртикулНазвание
-
1516002782 Hood DecalHood Decal
-
2219902468 Logo BrpLogo Brp
-
3516002759 Hood Decal 600 H.o. SDIHood Decal 600 H.o. SDI
-
4516002784 RH Side Decal. Black-Black ModelRH Side Decal. Black-Black Model
-
4516002786 RH Side Decal. Black-Yellow ModelRH Side Decal. Black-Yellow Model
-
5516002787 RH Lower Side Decal. Black-Black ModelRH Lower Side Decal. Black-Black Model
-
5516002788 RH Lower Side Decal. Black-Yellow ModelRH Lower Side Decal. Black-Yellow Model
-
6516002783 LH Side Decal. Black-Black ModelLH Side Decal. Black-Black Model
-
6516002785 LH Side Decal. Black-Yellow ModelLH Side Decal. Black-Yellow Model
-
7516002793 LH Lower Side Decal. Black-Black ModelLH Lower Side Decal. Black-Black Model
-
7516002794 LH Lower Side Decal. Black-Yellow ModelLH Lower Side Decal. Black-Yellow Model
-
8516003025 Windshield DecalWindshield Decal
-
9516002548 Suspension DecalSuspension Decal
-
10516001335 Dess DecalDess Decal
-
11516003026 Security Label, Passenger NumberSecurity Label, Passenger Number
-
12516002908 Security Label, GeneralSecurity Label, General
-
13516003029 Security Label, FamiliarizationSecurity Label, Familiarization
-
14516003024 Security Label, StartingSecurity Label, Starting
-
15516001910 RH Protector DecalRH Protector Decal
-
16516001911 LH Protector DecalLH Protector Decal
-
17516002796 RH Lower Rear Decal. Black-Yellow ModelRH Lower Rear Decal. Black-Yellow Model
-
18516002795 LH Lower Rear Decal. Black-Yellow ModelLH Lower Rear Decal. Black-Yellow Model
-
19516003027 Europe Pictogram Decal. EuropeEurope Pictogram Decal. Europe
-
20516002965 Security Label, Hot PartsSecurity Label, Hot Parts
