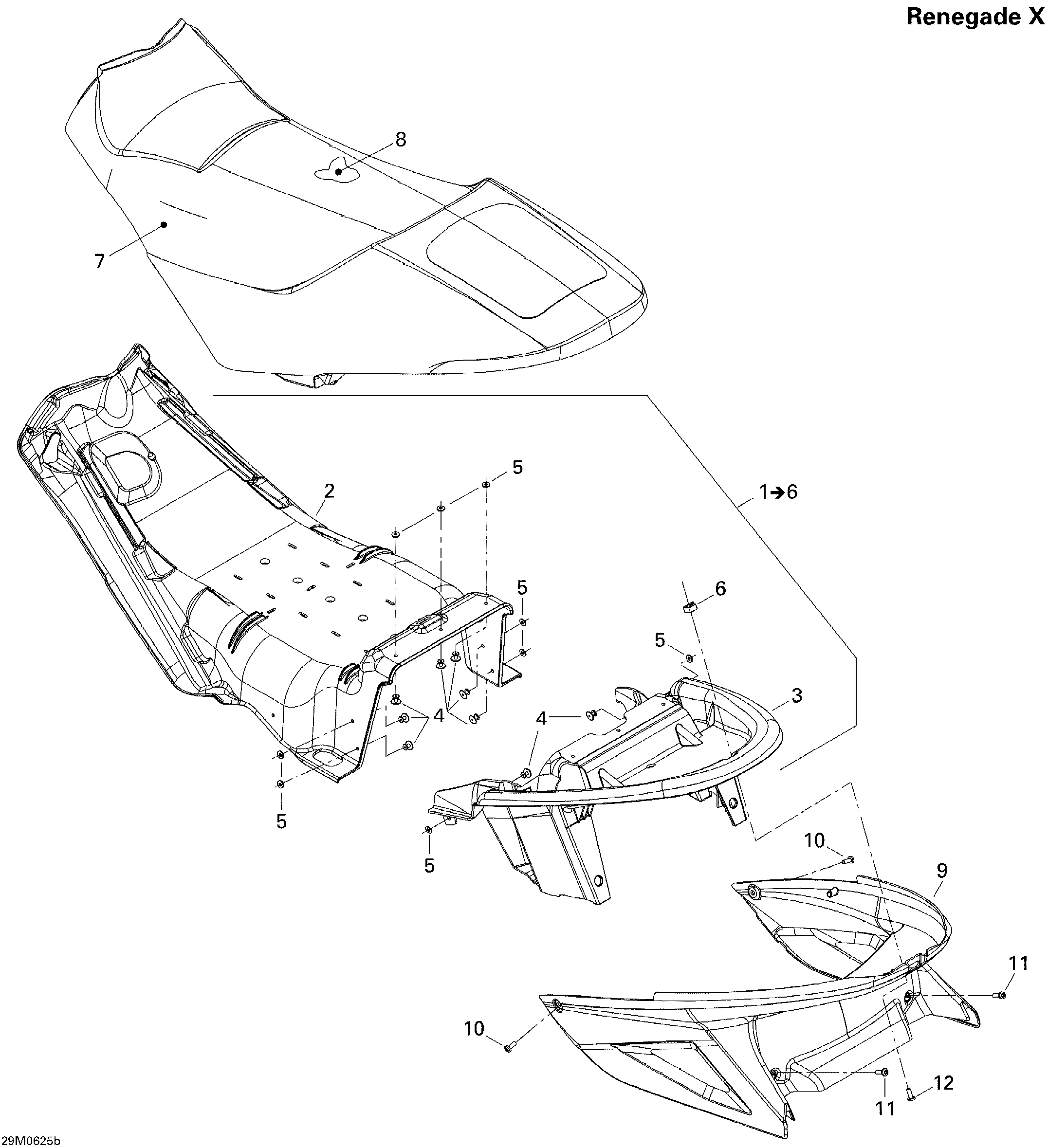

09- Seat Renegade X для BRP Ski-Doo MX Z 600 HO SDI Renegade & Renegade X - 2006
-
№АртикулНазвание
-
1510004582 Seat Base Ass'ySeat Base Ass'y
-
4390409600 Pop Rivet 3/16''Pop Rivet 3/16''
-
5517225900 Flat WasherFlat Washer
-
6708000046 Nut Housing Ass'y, M6Nut Housing Ass'y, M6
-
7510004653 Seat Cover. Black-Yellow ModelSeat Cover. Black-Yellow Model
-
7510004652 Seat Cover. Black-Black NodelSeat Cover. Black-Black Nodel
-
8510004216 Seat FoamSeat Foam
-
9510004628 Trunk, Black B-160. Black-Black NodelTrunk, Black B-160. Black-Black Nodel
-
9510004629 Trunk, Yellow, B-190. Black-Yellow ModelTrunk, Yellow, B-190. Black-Yellow Model
-
10250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
11250000128 Torx Screw M6 X 20Torx Screw M6 X 20
-
12250000129 Torx Screw M6 X 16Torx Screw M6 X 16
