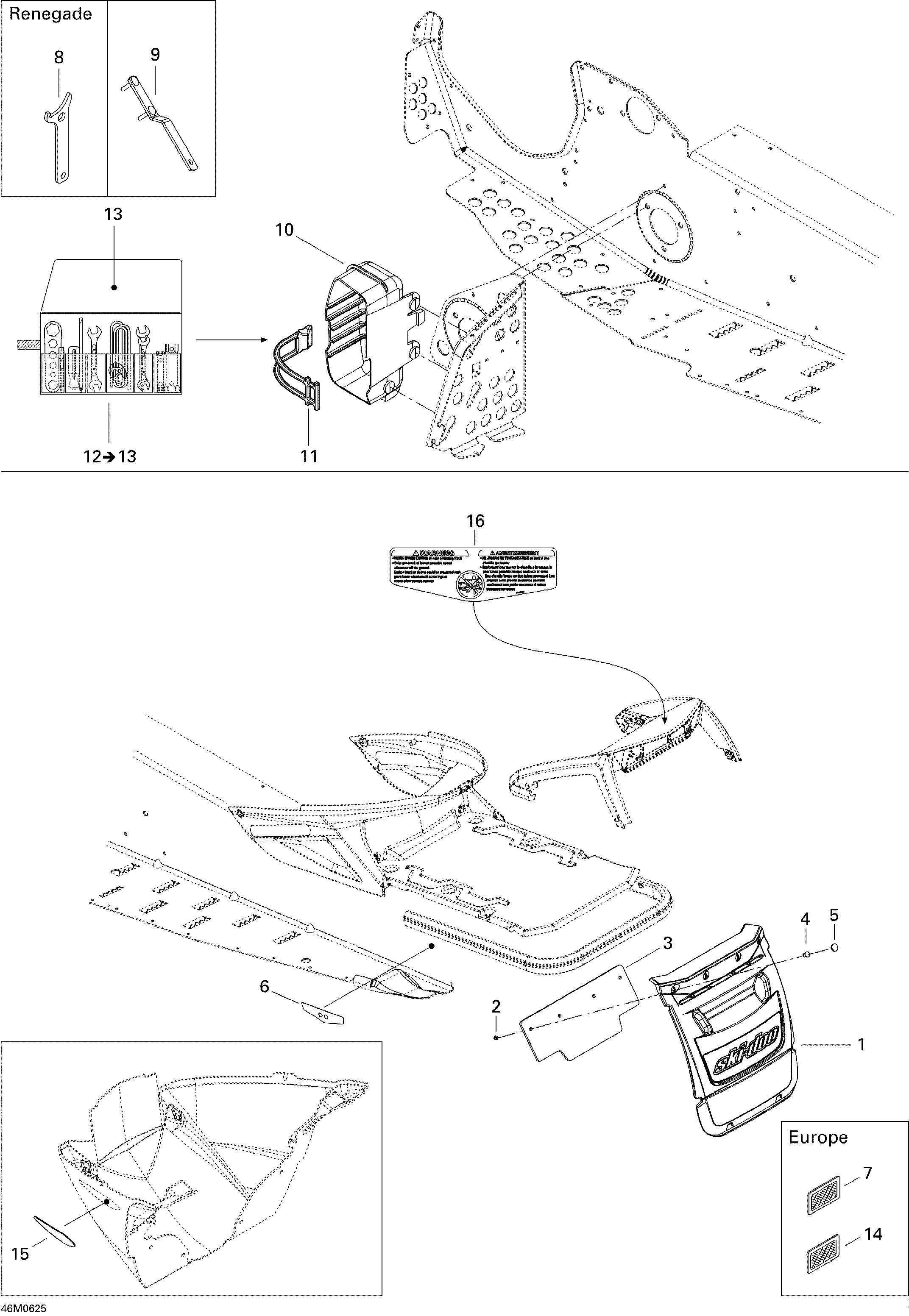

09- Utilities для BRP Ski-Doo MX Z 600 HO SDI Renegade & Renegade X - 2006
-
№АртикулНазвание
-
1520000446 Snow GuardSnow Guard
-
2517225900 Flat WasherFlat Washer
-
3520000488 Snow Guard ReinforcementSnow Guard Reinforcement
-
4293150087 Pop Rivet 3/16''Pop Rivet 3/16''
-
5277000203 Cap, BlackCap, Black
-
6520000382 Rear ReflectorRear Reflector
-
6520000383 Rear Reflector. EuropeRear Reflector. Europe
-
7520000271 Reflector Amber, Europe. EuropeReflector Amber, Europe. Europe
-
8529032900 Adjustment WrenchAdjustment Wrench
-
9520000126 Adjustment WrenchAdjustment Wrench
-
10520000322 TrunkTrunk
-
11520000528 LatchLatch
-
12529035596 Tool Kit. Includes 12 to 13Tool Kit. Includes 12 to 13
-
13520000047 Tool BagTool Bag
-
14415037900 White Reflector, Europe. EuropeWhite Reflector, Europe. Europe
-
15516001336 Front ReflectorFront Reflector
-
16516003034 Warning Label, Track SecurityWarning Label, Track Security
