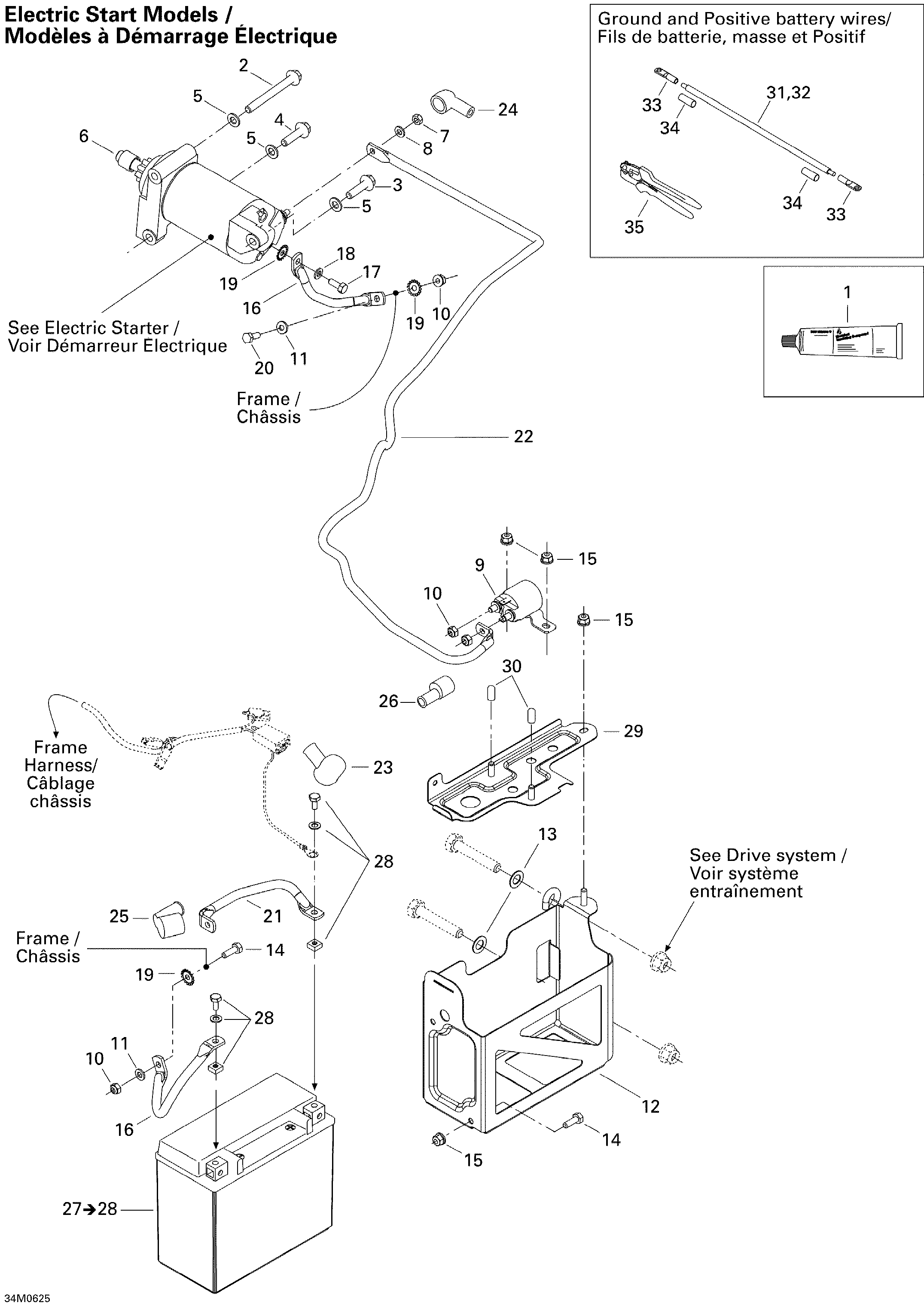

10- Battery And Starter для BRP Ski-Doo MX Z 600 HO SDI Renegade & Renegade X - 2006
-
№АртикулНазвание
-
1293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
2207587544 Hex Flanged Screw M8 X 75, Scotch GripHex Flanged Screw M8 X 75, Scotch Grip
-
3207583044 Hex Flanged Screw M8 X 30, Scotch GripHex Flanged Screw M8 X 30, Scotch Grip
-
4207583044 Hex Flanged Screw M8 X 30, Scotch GripHex Flanged Screw M8 X 30, Scotch Grip
-
5250200008 Flat Washer 8 mmFlat Washer 8 mm
-
6515176003 Starter Ass'yStarter Ass'y
-
7232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
8234061410 Flat Washer M6Flat Washer M6
-
9515176011 Starter RelayStarter Relay
-
10232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
11234061410 Flat Washer M6Flat Washer M6
-
12515176230 Battery Support BlackBattery Support Black
-
13503175800 WasherWasher
-
14207161844 Hex Screw M6 X 18Hex Screw M6 X 18
-
15233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
16515175749 Ground WireGround Wire
-
17207361644 Hex Screw M6 X 16, Scotch GripHex Screw M6 X 16, Scotch Grip
-
18234061410 Flat Washer M6Flat Washer M6
-
19250200041 Serrated Lock Washer 6 mmSerrated Lock Washer 6 mm
-
20207162044 Hex Screw M6 X 20Hex Screw M6 X 20
-
21515175904 Battery WireBattery Wire
-
23570151000 Protection CapProtection Cap
-
24278001771 Protector CapProtector Cap
-
25570064200 Protection CapProtection Cap
-
26515175919 Protector CapProtector Cap
-
27410301203 Battery, 18 Amperes. Includes 27 to 28Battery, 18 Amperes. Includes 27 to 28
-
28295500849 Battery Fastener KitBattery Fastener Kit
-
29515175735 Battery StripBattery Strip
-
30515176141 CapCap
-
31278001680 Ground Cable, Black (no 6) (meter)Ground Cable, Black (no 6) (meter)
-
32278001690 Positive Cable, Red (no 6) (meter)Positive Cable, Red (no 6) (meter)
-
33278001682 Flat Terminal (Small Hole)Flat Terminal (Small Hole)
-
33278001683 Terminal 45° (Small Hole)Terminal 45° (Small Hole)
-
33278001684 Terminal 90° (Small Hole)Terminal 90° (Small Hole)
-
33278001685 Flat Terminal (Big Hole)Flat Terminal (Big Hole)
-
33278001686 Terminal 45° (Big Hole)Terminal 45° (Big Hole)
-
33278001687 Terminal 90° (Big Hole)Terminal 90° (Big Hole)
-
33278001688 Flat TerminalFlat Terminal
-
33278001776 Terminal 30° (2 Holes)Terminal 30° (2 Holes)
-
34710000483 Heat Shrink TubingHeat Shrink Tubing
-
35529035730 Crimp PlierCrimp Plier
