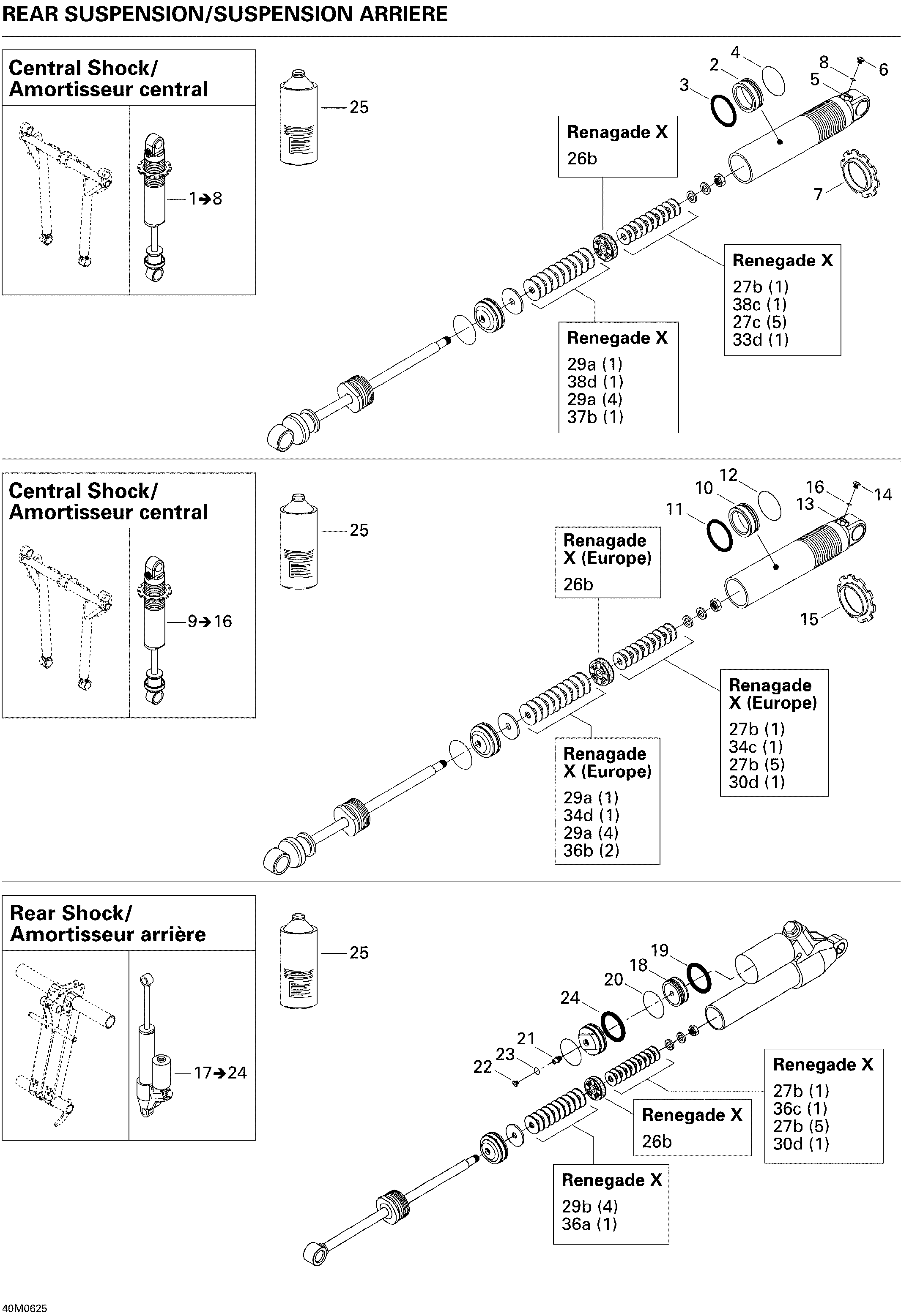

08- Take Apart Shock, Rear Renegade X для BRP Ski-Doo MX Z 600 HO SDI Renegade & Renegade X - 2006
-
№АртикулНазвание
-
1503191203 Center Shock. Renegade X, Includes 1 to 8Center Shock. Renegade X, Includes 1 to 8
-
2503189309 Free PistonFree Piston
-
3414888312 O-RingO-Ring
-
4503189308 Piston RingPiston Ring
-
5505070398 Air Valve RingAir Valve Ring
-
6505070399 ScrewScrew
-
7414888316 Spring CollarSpring Collar
-
8505070400 O-RingO-Ring
-
9503191220 Center Shock. Renegade X (Europe), Includes 9 to 16Center Shock. Renegade X (Europe), Includes 9 to 16
-
10503189309 Free PistonFree Piston
-
11414888312 O-RingO-Ring
-
12503189308 Piston RingPiston Ring
-
13505070398 Air Valve RingAir Valve Ring
-
14505070399 ScrewScrew
-
15414888316 Spring CollarSpring Collar
-
16505070400 O-RingO-Ring
-
17503190729 Rear Shock. Renegade X, Includes 17 to 24Rear Shock. Renegade X, Includes 17 to 24
-
18415093812 Free PistonFree Piston
-
19415093807 O-RingO-Ring
-
20415093806 Piston RingPiston Ring
-
21505070398 Air Valve RingAir Valve Ring
-
22505070399 ScrewScrew
-
23505070400 O-RingO-Ring
-
24415093804 O-RingO-Ring
-
25293600035 Shock Oil, 1 LiterShock Oil, 1 Liter
-
26a414888304 Piston (C36)Piston (C36)
-
26c414888305 Piston (2 X 0.3-2) (C36)Piston (2 X 0.3-2) (C36)
-
26E414888306 Piston (2 X 0.3-4) (C36)Piston (2 X 0.3-4) (C36)
-
26g414888307 Piston (2 X 0.3-6) (C36)Piston (2 X 0.3-6) (C36)
-
27a415039100 Leaf Valve O30 X 0.254 (C36)Leaf Valve O30 X 0.254 (C36)
-
27b414888318 Leaf Valve O30 X 0.203 (C36)Leaf Valve O30 X 0.203 (C36)
-
27C414888319 Leaf Valve O30 X 0.152 (C36)Leaf Valve O30 X 0.152 (C36)
-
28b414888320 Leaf Valve O28 X 0.203 (C36)Leaf Valve O28 X 0.203 (C36)
-
28c414888321 Leaf Valve O28 X 0.152 (C36)Leaf Valve O28 X 0.152 (C36)
-
29a415039000 Leaf Valve O26 X 0.254 (C36)Leaf Valve O26 X 0.254 (C36)
-
29b414888322 Leaf Valve O26 X 0.203 (C36)Leaf Valve O26 X 0.203 (C36)
-
29c414888323 Leaf Valve O26 X 0.152 (C36)Leaf Valve O26 X 0.152 (C36)
-
31b414888324 Leaf Valve O22 X 0.203 (C36)Leaf Valve O22 X 0.203 (C36)
-
31c414888325 Leaf Valve O22 X 0.152 (C36)Leaf Valve O22 X 0.152 (C36)
-
32d414888340 Leaf Valve O21 X 0.114 (C36)Leaf Valve O21 X 0.114 (C36)
-
33b414888326 Leaf Valve O20 X 0.203 (C36)Leaf Valve O20 X 0.203 (C36)
-
33c414888327 Leaf Valve O20 X 0.152 (C36)Leaf Valve O20 X 0.152 (C36)
-
33d414888328 Leaf Valve O20 X 0.114 (C36)Leaf Valve O20 X 0.114 (C36)
-
35b414888329 Leaf Valve O18 X 0.203 (C36)Leaf Valve O18 X 0.203 (C36)
-
35c414888330 Leaf Valve O18 X 0.152 (C36)Leaf Valve O18 X 0.152 (C36)
-
37a414888331 Leaf Valve O16 X 0.254 (C36)Leaf Valve O16 X 0.254 (C36)
-
37b414888332 Leaf Valve O16 X 0.203 (C36)Leaf Valve O16 X 0.203 (C36)
-
37c414888333 Leaf Valve O16 X 0.152 (C36)Leaf Valve O16 X 0.152 (C36)
-
37D415038900 Leaf Valve O16 X 0.114 (C36)Leaf Valve O16 X 0.114 (C36)
-
38a414888334 Leaf Valve O15 X 0.254 (C36)Leaf Valve O15 X 0.254 (C36)
-
38b414888335 Leaf Valve O15 X 0.203 (C36)Leaf Valve O15 X 0.203 (C36)
-
38c414888336 Leaf Valve O15 X 0.152 (C36)Leaf Valve O15 X 0.152 (C36)
-
38d414888337 Leaf Valve O15 X 0.114 (C36)Leaf Valve O15 X 0.114 (C36)
-
41a503189538 Leaf Valve O12 X 0.254 (C36)Leaf Valve O12 X 0.254 (C36)
-
41b414888338 Leaf Valve O12 X 0.203 (C36)Leaf Valve O12 X 0.203 (C36)
-
41c414888339 Leaf Valve O12 X 0.152 (C36)Leaf Valve O12 X 0.152 (C36)
-
41d415038800 Leaf Valve O12 X 0.114 (C36)Leaf Valve O12 X 0.114 (C36)
