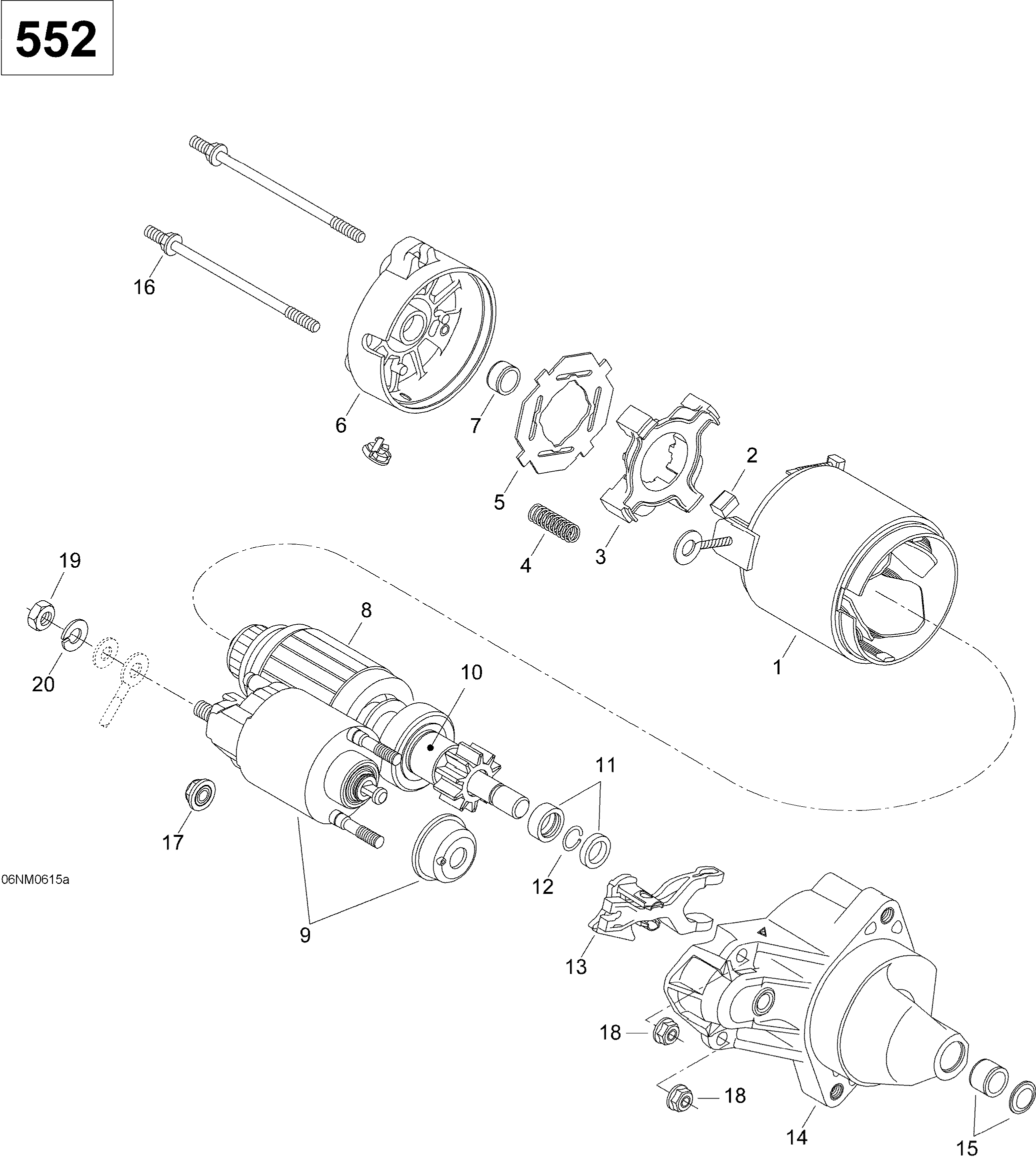

04- Electric Starter 552 для BRP Ski-Doo Skandic SUV 550F - 2006
-
№АртикулНазвание
-
1515175795 Starter Ass'y. Includes 1 to 20Starter Ass'y. Includes 1 to 20
-
1410213106 Starter HousingStarter Housing
-
2410213107 Brush KitBrush Kit
-
3410209700 Brush HolderBrush Holder
-
4410209800 Brush SpringBrush Spring
-
5410209900 InsulatorInsulator
-
6410213108 HousingHousing
-
7410210100 Bushing-Brass BushingBushing-Brass Bushing
-
8410210200 Armature Assy.Armature Assy.
-
9410210300 Switch Assy.Switch Assy.
-
10410210400 Starter ClutchStarter Clutch
-
11410212500 NutNut
-
12410212600 CirclipCirclip
-
13410213109 LeverLever
-
14410213113 HousingHousing
-
15410210900 Brass BushingBrass Bushing
-
16410212000 BoltBolt
-
17410211100 NutNut
-
18410211200 NutNut
-
19232081414 Hex Nut M8Hex Nut M8
-
20234181401 Lock Washer M8Lock Washer M8
