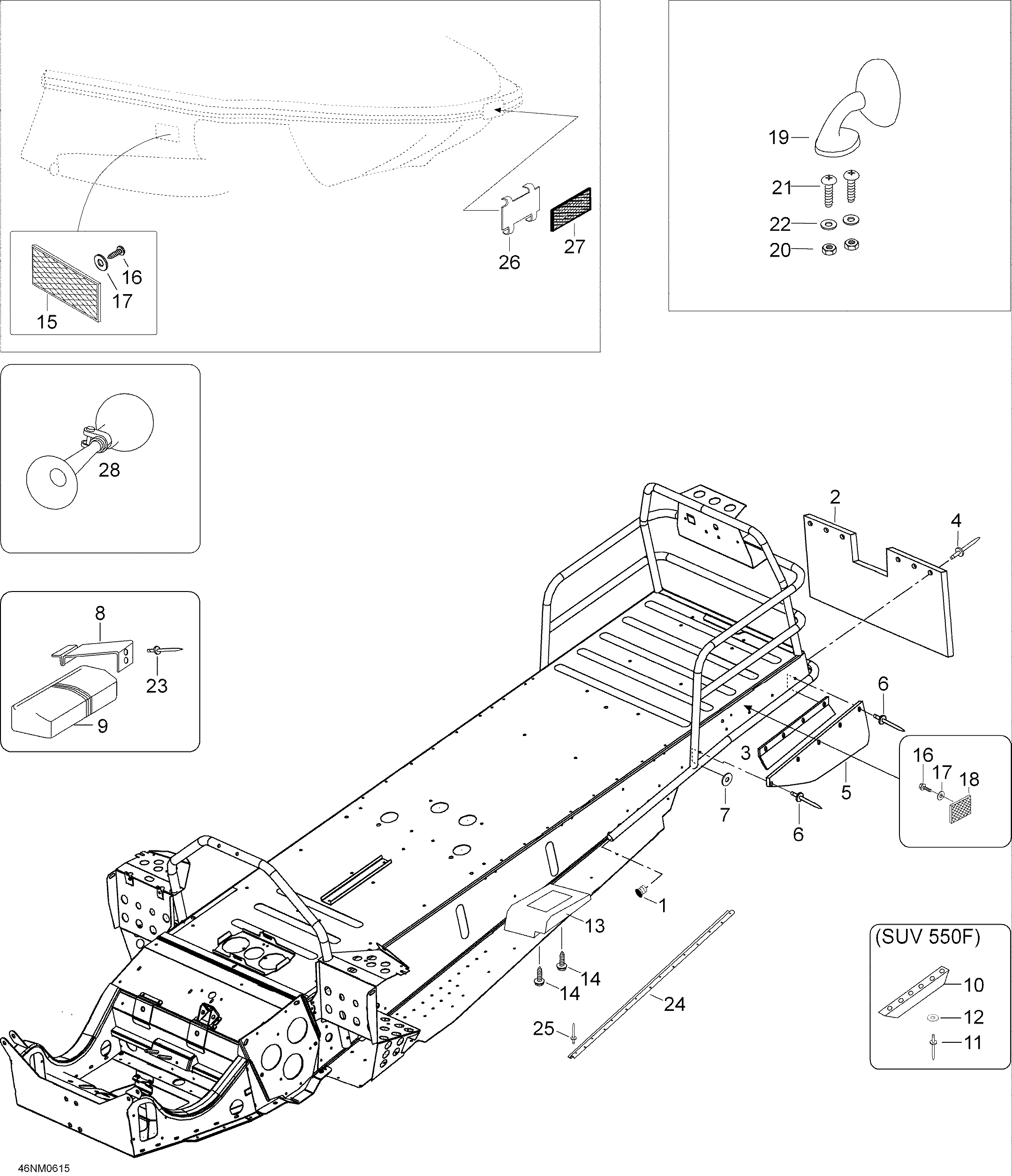

09- Utilities 550F SUV для BRP Ski-Doo Skandic SUV 550F - 2006
-
№АртикулНазвание
-
1M28136 PlugPlug
-
2M538629 Snow GuardSnow Guard
-
3M5340532 SupportSupport
-
4M36036 Rivet-BlackRivet-Black
-
5M5142828 Lateral Snow GuardLateral Snow Guard
-
6M36097 RivetRivet
-
7M20037 WasherWasher
-
8M5344443 SpringSpring
-
9605350523 Tool BoxTool Box
-
10605349264 ProtectorProtector
-
11M36005 RivetRivet
-
12234051410 Flat WasherFlat Washer
-
15414510200 Reflector (Amber)Reflector (Amber)
-
16M40070 ScrewScrew
-
17234451418 Washer M5Washer M5
-
18414510100 Reflector (Red)Reflector (Red)
-
19414971910 RH MirrorRH Mirror
-
19414972010 LH MirrorLH Mirror
-
20232541414 Elastic Stop Nut M4 X 70Elastic Stop Nut M4 X 70
-
21M40167 ScrewScrew
-
22M20001 WasherWasher
-
23M36083 RivetRivet
-
24605348881 Antisliperry Running BandAntisliperry Running Band
-
25M36010 RivetRivet
-
265440839 Bracket. EuropeBracket. Europe
-
2721060 Reflector (Bright). EuropeReflector (Bright). Europe
-
2821003 Horn. EuropeHorn. Europe
