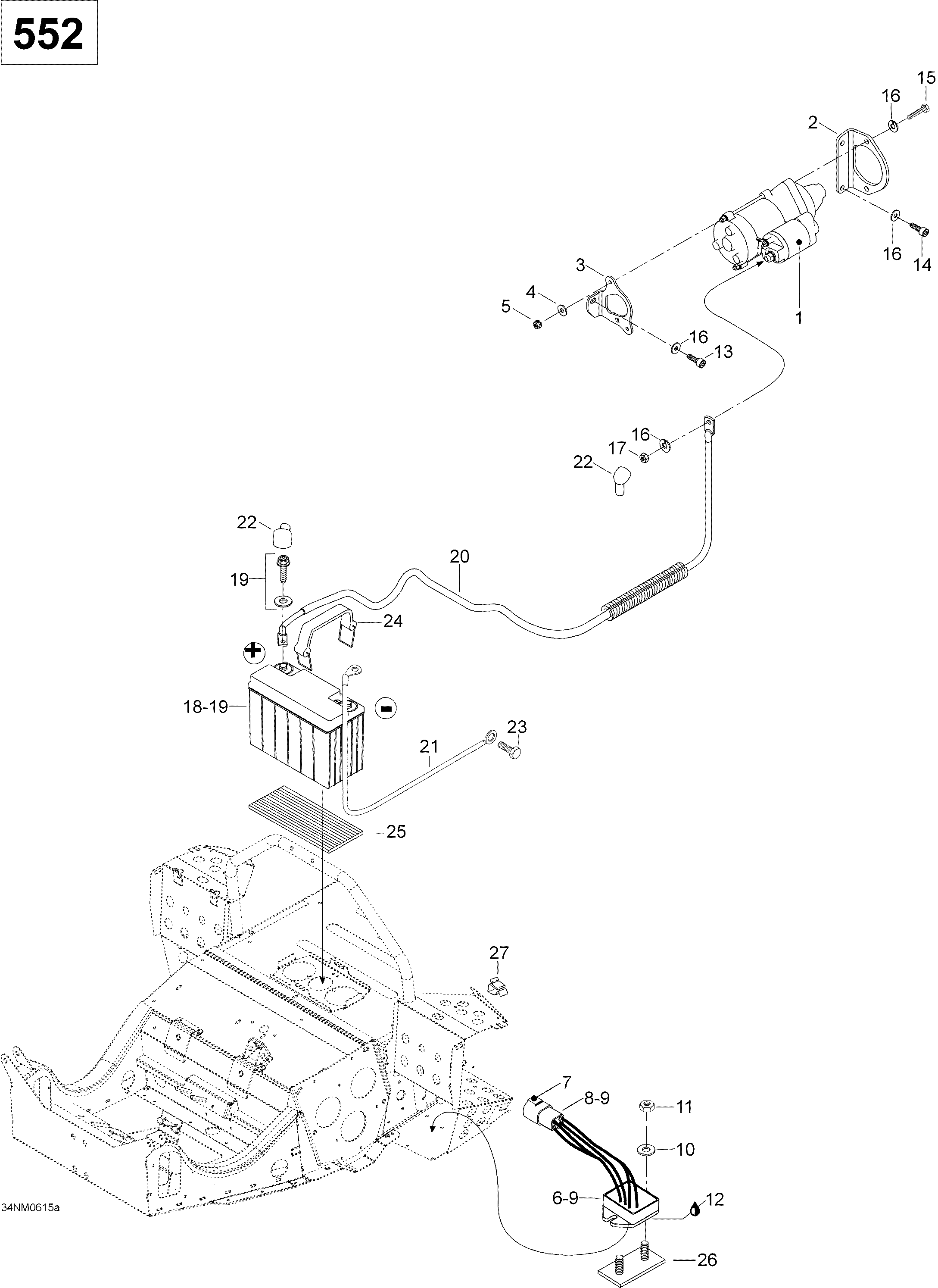

10- Battery And Starter 552 для BRP Ski-Doo Skandic SUV 550F - 2006
-
№АртикулНазвание
-
1515175795 Starter Ass'y. Canada / U.S.AStarter Ass'y. Canada / U.S.A
-
1410212400 Electric starter ass'y. EuropeElectric starter ass'y. Europe
-
2515175652 Starter Bracket. Canada / U.S.AStarter Bracket. Canada / U.S.A
-
2420951415 Starter bracket, PTO. EuropeStarter bracket, PTO. Europe
-
3515175633 Starter Support Mag Side. Canada / U.S.AStarter Support Mag Side. Canada / U.S.A
-
3420951426 Starter bracket, MAG. EuropeStarter bracket, MAG. Europe
-
420008 Washer 5,3 mmWasher 5,3 mm
-
5232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
6515175939 Voltage Regulator Ass'y. Includes 6 to 9Voltage Regulator Ass'y. Includes 6 to 9
-
7278001477 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
8515175568 Male TerminalMale Terminal
-
9278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
10M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
-
11232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
12413707500 Grease Tube Lmz, 400 GGrease Tube Lmz, 400 G
-
13M40066 Hex Screw M8 X 16Hex Screw M8 X 16
-
14205082044 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
15207182044 Hex Screw M8 X 20Hex Screw M8 X 20
-
16234181401 Lock Washer M8Lock Washer M8
-
17M33003 NutNut
-
18410301203 Battery, 18 Amperes. Includes 18 to 19Battery, 18 Amperes. Includes 18 to 19
-
19295500849 Battery Fastener KitBattery Fastener Kit
-
20605349434 Battery WireBattery Wire
-
21M549887 Ground WireGround Wire
-
22570151000 Protection CapProtection Cap
-
23M40327 Allen Screw M6 X 12Allen Screw M6 X 12
-
24515176044 Battery StrapBattery Strap
-
25605350237 Battery CarpetBattery Carpet
-
26M5448286 PlatePlate
-
27414227300 ClipClip
