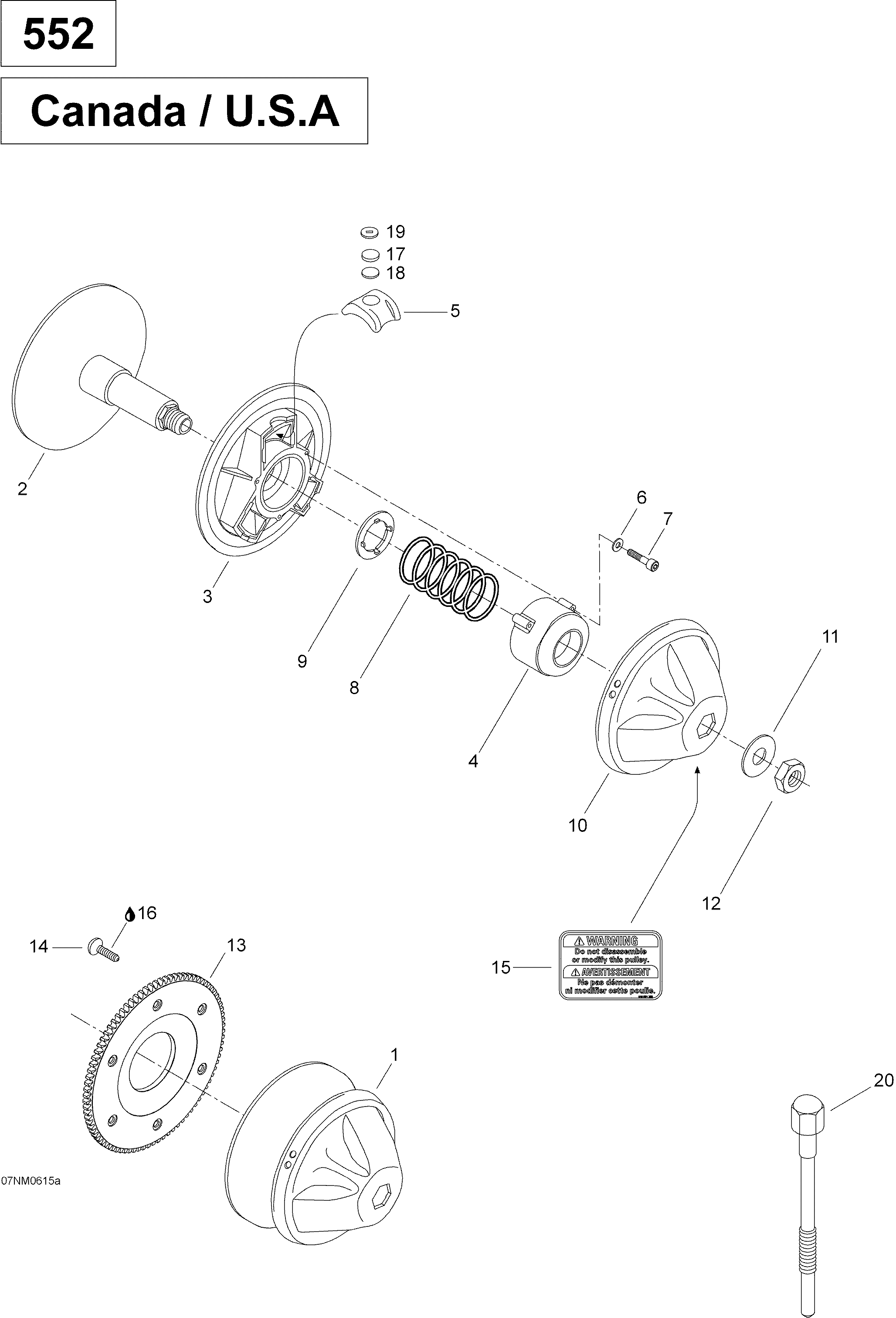

05- Drive Pulley 552, CAN-USA для BRP Ski-Doo Skandic SUV 550F - 2006
-
№АртикулНазвание
-
2M140054 Fixed FlangeFixed Flange
-
3M140055 Sliding FlangeSliding Flange
-
4415128602 Spring CoverSpring Cover
-
5619100009 Centrifuge BlockCentrifuge Block
-
6420245370 WasherWasher
-
7415128606 Socket Head Screw M6 X 35Socket Head Screw M6 X 35
-
8414742100 Spring Yellow/GreenSpring Yellow/Green
-
9417126694 Spring SeatSpring Seat
-
10415128609 CapCap
-
11415128610 WasherWasher
-
12417118300 NutNut
-
13417300186 Ring GearRing Gear
-
14236281684 Hex Screw M8 X 16Hex Screw M8 X 16
-
15516001726 Security LabelSecurity Label
-
16293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
17417120400 Adjustment WeighAdjustment Weigh
-
18417114400 Adjustment WeighAdjustment Weigh
-
19417114500 CAPSuleCAPSule
-
20529022400 Puller Inner HalfPuller Inner Half
