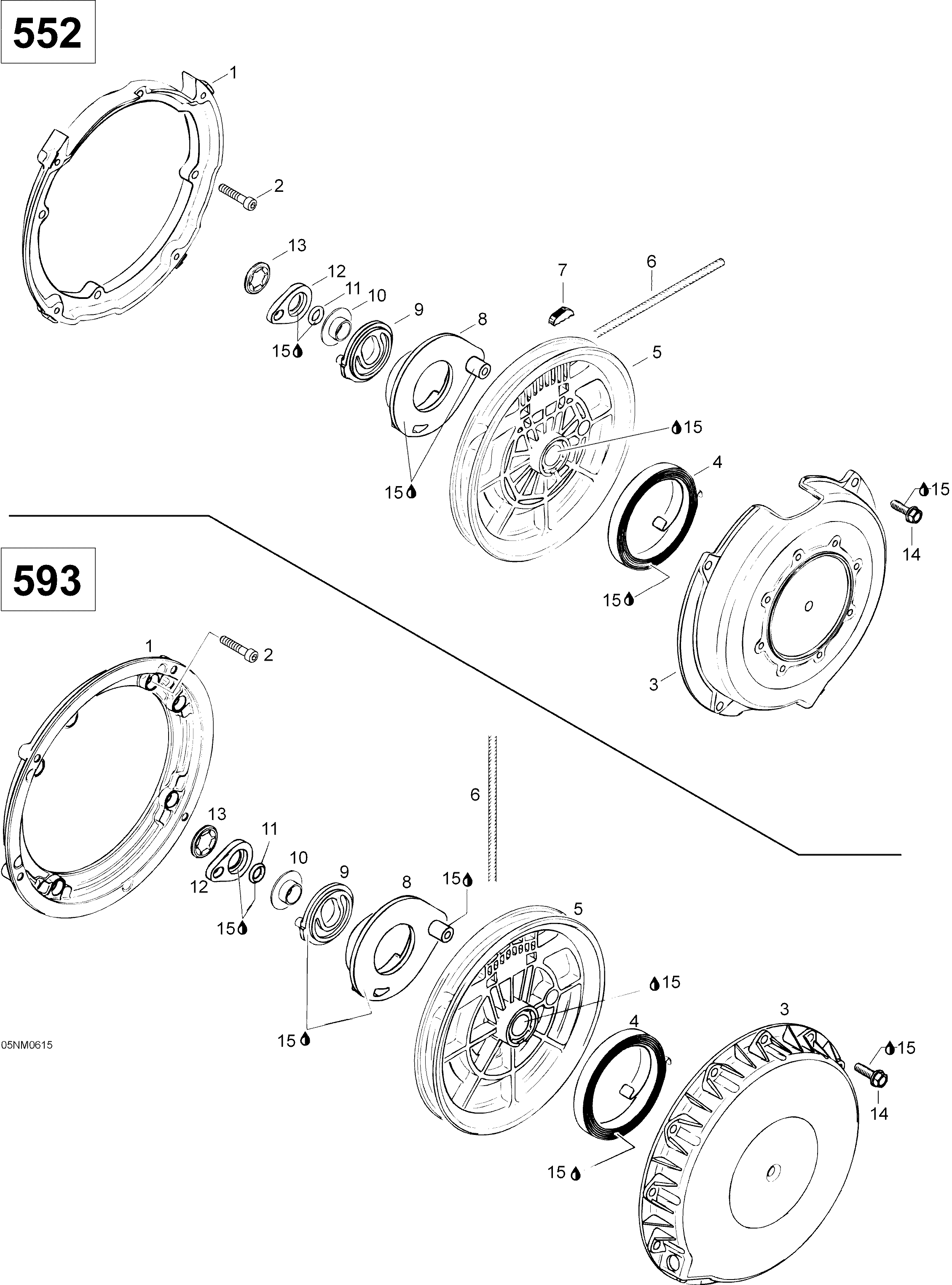

04- Rewind Starter , 550F SUV для BRP Ski-Doo Skandic SUV 550F - 2006
-
№АртикулНазвание
-
1420810952 Flange Connector. SUV 550Flange Connector. SUV 550
-
2420440202 Flanged Torx Screw M6x 20. SUV 550Flanged Torx Screw M6x 20. SUV 550
-
3420888219 Rewind Starter Ass'y. SUV 550, Includes 3 to 12Rewind Starter Ass'y. SUV 550, Includes 3 to 12
-
3420811346 Starter Housing. SUV 550Starter Housing. SUV 550
-
4420939115 Rewind SpringRewind Spring
-
5420852480 Rope Sheave. SUV 550Rope Sheave. SUV 550
-
6412500200 Starter RopeStarter Rope
-
7420852070 Key ClampKey Clamp
-
8420852296 Pawl. SUV 550Pawl. SUV 550
-
9420852305 Pawl LockPawl Lock
-
10420847925 Stage SleeveStage Sleeve
-
11420250400 O-RingO-Ring
-
12420852520 Lock RingLock Ring
-
13420845560 Locking ElementLocking Element
-
14420941250 Hex Tapping Screw M6 X 20. SUV 550Hex Tapping Screw M6 X 20. SUV 550
-
15420899763 Molykote Pg 54, 10 GMolykote Pg 54, 10 G
-
16293800060 Loctite 243, 250 mlLoctite 243, 250 ml
