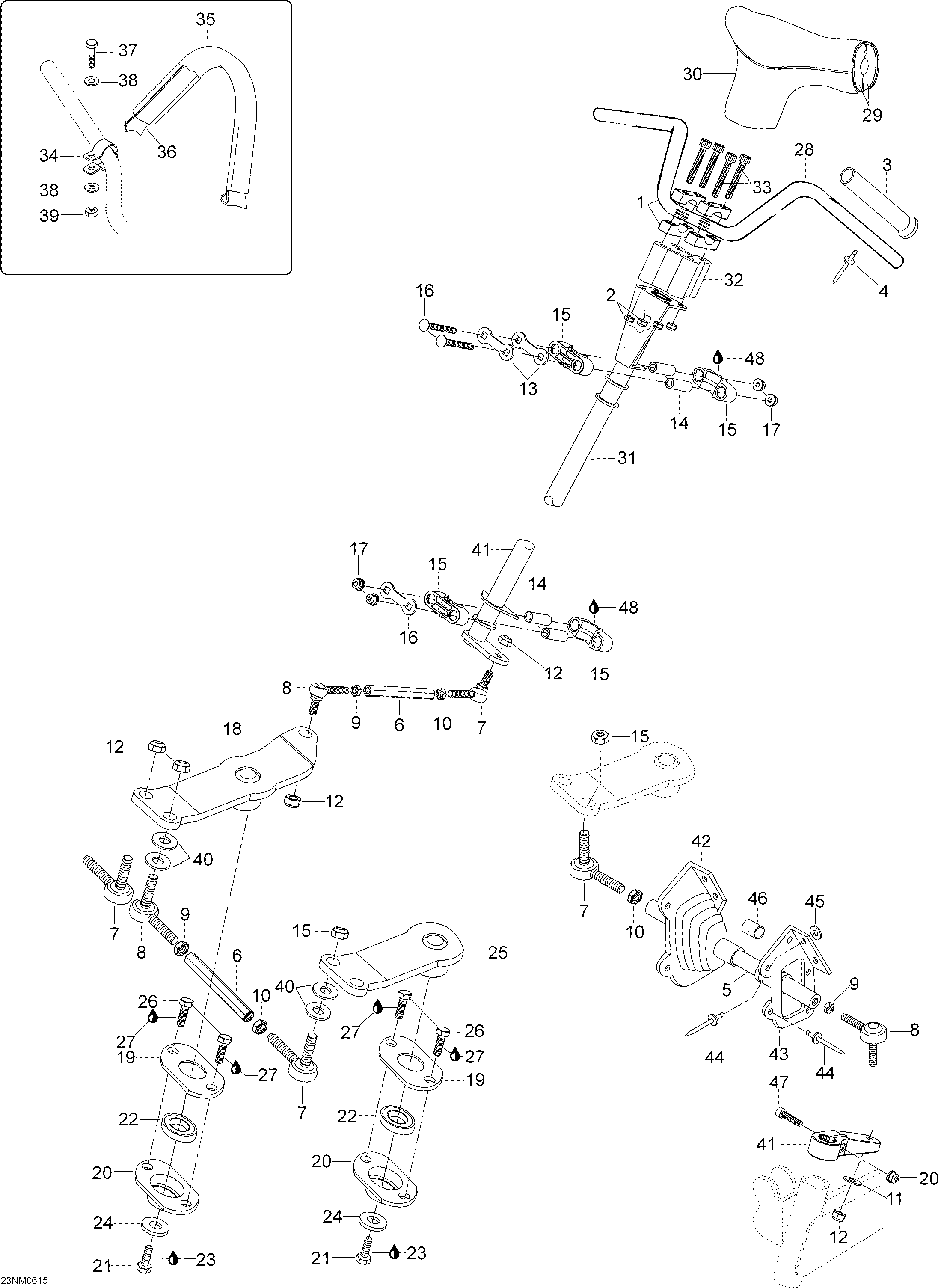

07- Steering System , 500F SUV для BRP Ski-Doo Skandic SUV 550F - 2006
-
№АртикулНазвание
-
1M548448 Steering ClampSteering Clamp
-
2232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
3M5340464 Grip HandleGrip Handle
-
4M36005 RivetRivet
-
5605448307 Tie Rod. Canada / U.S.ATie Rod. Canada / U.S.A
-
6605448308 Short Tie RodShort Tie Rod
-
7506151495 LH Ball JointLH Ball Joint
-
8506151492 RH Ball JointRH Ball Joint
-
9M33019 RH NutRH Nut
-
10M33017 LH NutLH Nut
-
11M20105 Washer. SUV 550Washer. SUV 550
-
12M33023 NutNut
-
13506150600 Stopper PlateStopper Plate
-
14506150500 Housing BushingHousing Bushing
-
15506150400 Housing HalfHousing Half
-
16207787044 Carriage Bolt M8 X 70Carriage Bolt M8 X 70
-
17M33201 Elastic Stop Nut M8Elastic Stop Nut M8
-
18605348402 RH Welded LeverRH Welded Lever
-
19M5345380 CoverCover
-
20605350644 Bearing SupportBearing Support
-
21M40337 Hex ScrewHex Screw
-
22503190795 Ball BearingBall Bearing
-
23293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
24M5446279 WasherWasher
-
25605348403 LH Welded LeverLH Welded Lever
-
26M40336 Screw M8 X 20Screw M8 X 20
-
27293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
28605249033 Handle BarHandle Bar
-
29605250305 Front Padding SteeringFront Padding Steering
-
29605250306 Rear Padding SteeringRear Padding Steering
-
30605250279 Handle Bar CoverHandle Bar Cover
-
31605250189 Main TubeMain Tube
-
32605349584 ExtensionExtension
-
33M40124 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
34506151792 Support Plate, BlackSupport Plate, Black
-
35415090200 GripGrip
-
36415095500 Tie-DownTie-Down
-
37207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
38234061410 Flat Washer M6Flat Washer M6
-
39232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
41M5348261 Steering ArmSteering Arm
-
42570024800 RH Tie Rod CapRH Tie Rod Cap
-
42570024900 LH Tie Rod CapLH Tie Rod Cap
-
43517241200 RH Cap PlateRH Cap Plate
-
43517241300 LH Cap PlateLH Cap Plate
-
44M36036 Rivet-BlackRivet-Black
-
45M20008 Washer 5 mmWasher 5 mm
-
46572036500 BushingBushing
-
47M40828 Allen Screw M8 X 45Allen Screw M8 X 45
-
48219700417 Synthetic Grease, 400 GSynthetic Grease, 400 G
