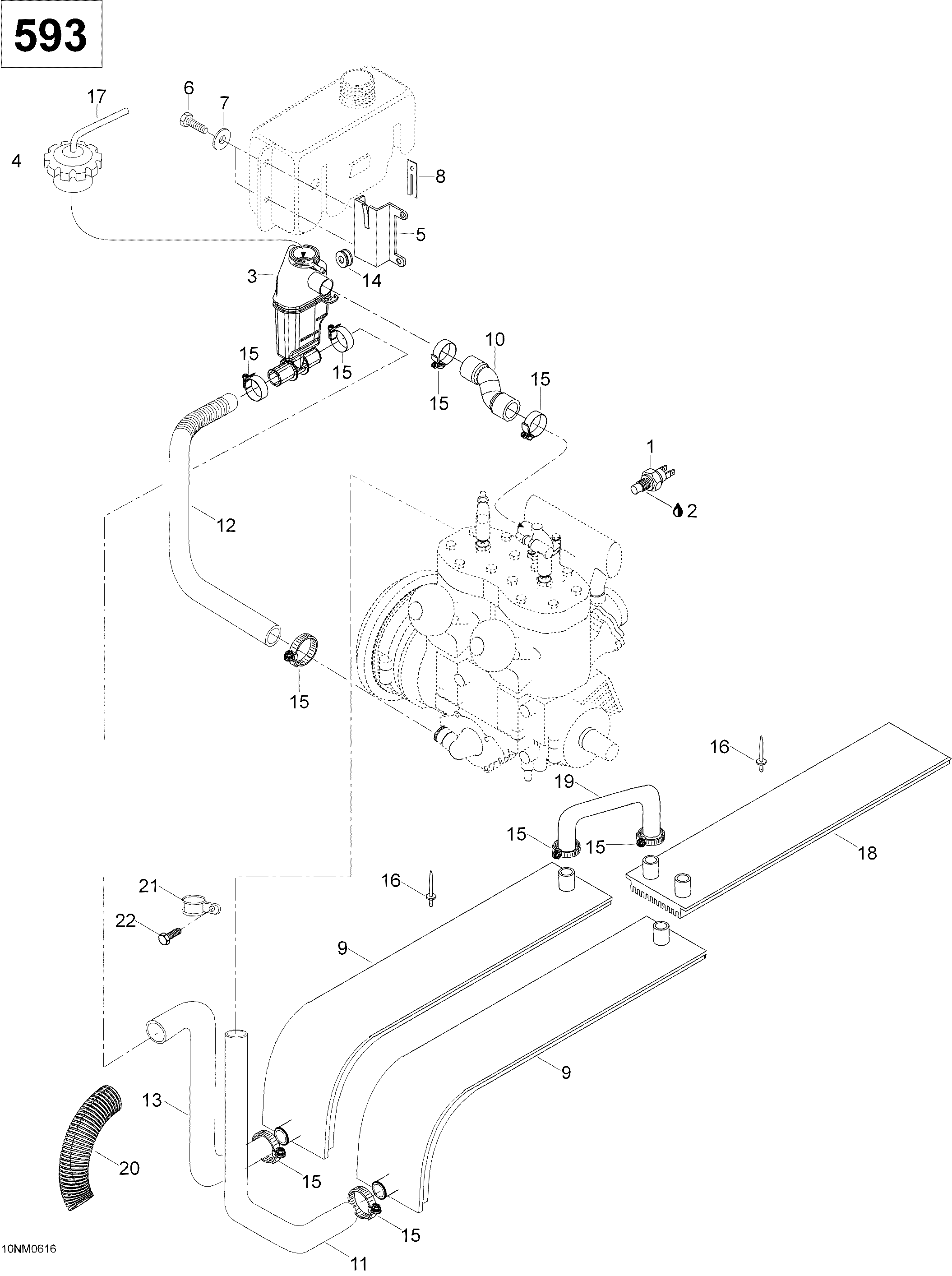

01- Cooling System (593) для BRP Ski-Doo Skandic WT 600 - 2006
-
№АртикулНазвание
-
1512047000 Temperature SensorTemperature Sensor
-
2293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
3509000134 Tank CoolantTank Coolant
-
4509000187 Pressure CapPressure Cap
-
5M5347031 Tank SupportTank Support
-
6M40322 ScrewScrew
-
7M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
-
8M5447032 LockLock
-
9M5146385 LH RadiatorLH Radiator
-
9M5146386 RH RadiatorRH Radiator
-
10M5348268 HoseHose
-
11M5346201 HoseHose
-
12M5343357 HoseHose
-
13605349198 HoseHose
-
14M28022 GrommetGrommet
-
15408800400 Tridon Gear ClampTridon Gear Clamp
-
16M36108 RivetRivet
-
17415080200 LineLine
-
18M5345916 RadiatorRadiator
-
19M5445970 TubeTube
-
20M390003 TubeTube
-
21M27011 ClipClip
-
22M40327 Allen Screw M6 X 12Allen Screw M6 X 12
