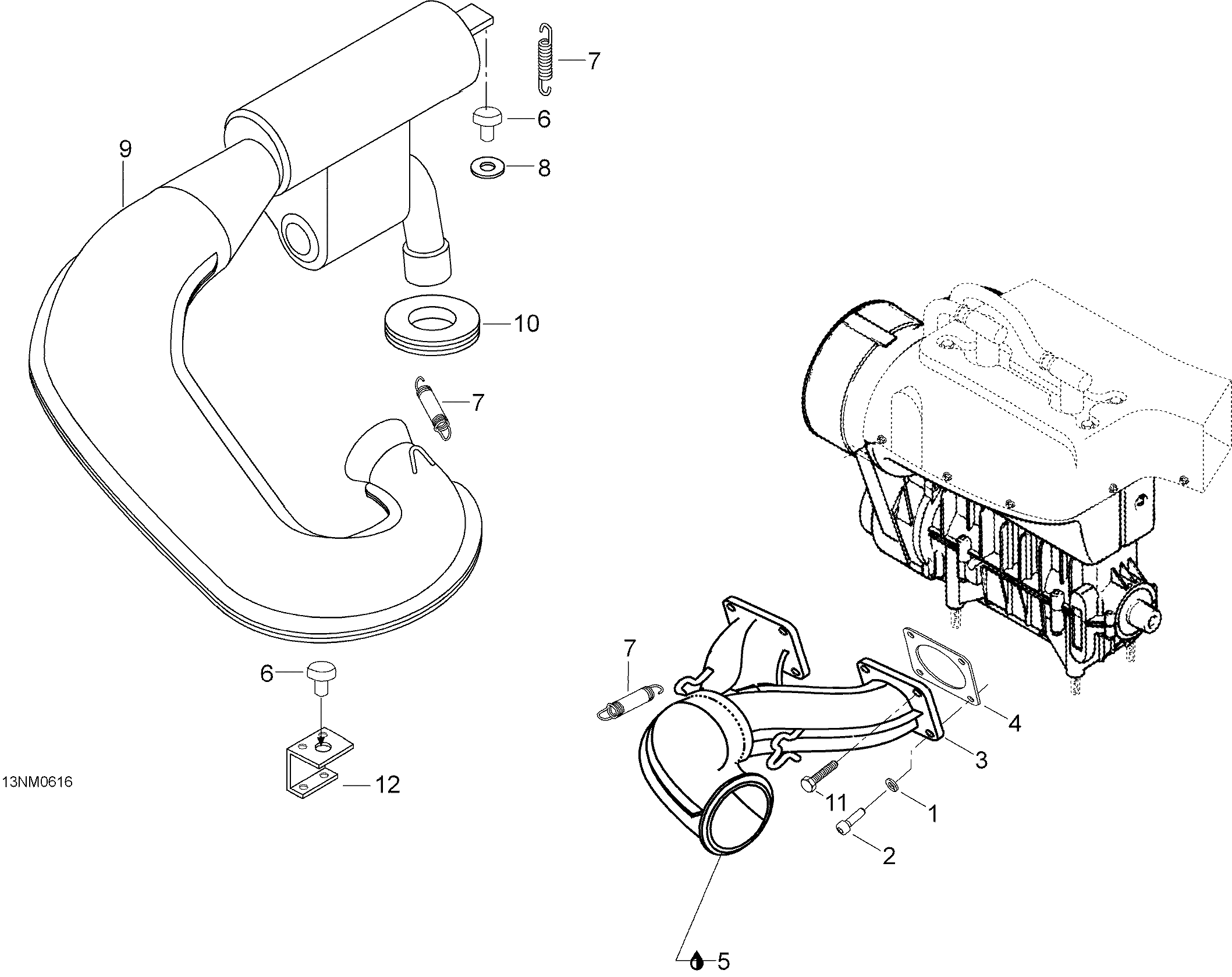

01- Exhaust System 600 для BRP Ski-Doo Skandic WT 600 - 2006
-
№АртикулНазвание
-
1234181401 Lock Washer M8Lock Washer M8
-
2M40135 Socket Head Screw M8 X 30. WT 600Socket Head Screw M8 X 30. WT 600
-
3M5245177 Exhaust Manifold. WT 600Exhaust Manifold. WT 600
-
4420931610 Gasket. WT 600Gasket. WT 600
-
5293800090 Sealant, Loctite, 80 mlSealant, Loctite, 80 ml
-
6570048700 Rubber BumperRubber Bumper
-
7420938795 SpringSpring
-
8M20087 WasherWasher
-
9420979856 Tuned Pipe. WT 600Tuned Pipe. WT 600
-
10570039000 Exhaust GrommetExhaust Grommet
-
11207182044 Hex Screw M8 X 20. WT 600Hex Screw M8 X 20. WT 600
-
12M5442681 SupportSupport
