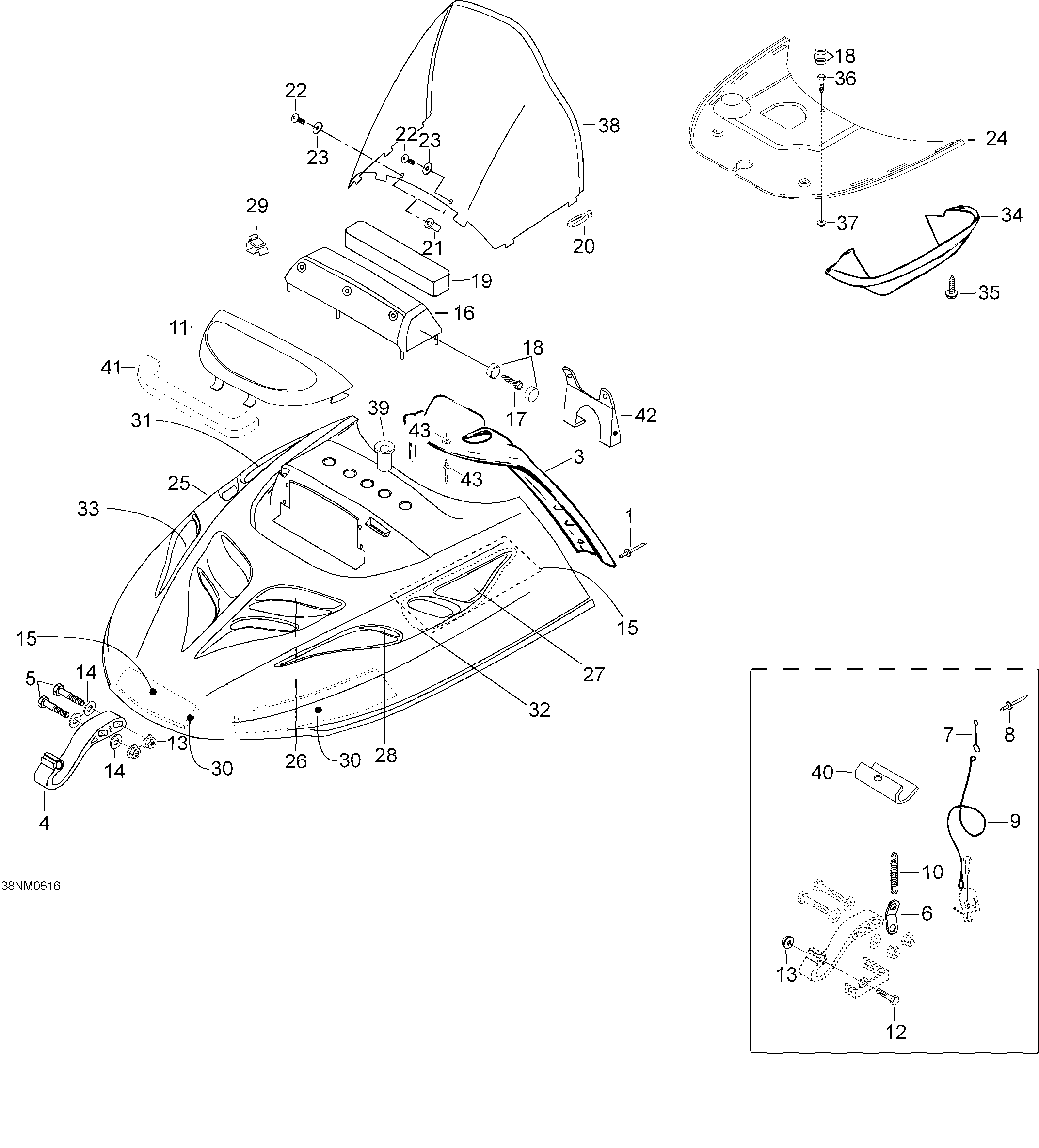

09- Hood 600 WT для BRP Ski-Doo Skandic WT 600 - 2006
-
№АртикулНазвание
-
136036 RivetRivet
-
220008 Washer 5,3 mmWasher 5,3 mm
-
3605148420 Dash. WT 600Dash. WT 600
-
4M5343075 HingeHinge
-
540193 Hex. Screw M6 X 50Hex. Screw M6 X 50
-
65443123 Spring PlateSpring Plate
-
75446948 Cable Keeper. WT 600Cable Keeper. WT 600
-
836005 RivetRivet
-
95342674 Cable-retainer. WT 600Cable-retainer. WT 600
-
105442675 SpringSpring
-
11605252351 Lamp MoldingLamp Molding
-
1240084 Hex. Screw M6 X 45Hex. Screw M6 X 45
-
13M33200 Nut M6Nut M6
-
14M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
-
15M44001 Sheet ReflectionSheet Reflection
-
16605149010 Intake CoverIntake Cover
-
17M40901 Hex ScrewHex Screw
-
18M282000 CoverCover
-
19605349056 FilterFilter
-
20570023800 Windshield LatchWindshield Latch
-
21M28055 Welded NutWelded Nut
-
22M40156 ScrewScrew
-
23M20008 Washer 5 mmWasher 5 mm
-
24M5246742 Air DuctAir Duct
-
25605149606 Hood Ass'y. Includes 44 to 50, WT 600Hood Ass'y. Includes 44 to 50, WT 600
-
26M5142669 Front GrillFront Grill
-
27M5242899 LH Upper Grill. WT 600LH Upper Grill. WT 600
-
27M5242671 RH Upper GrillRH Upper Grill
-
28M5242672 RH Lower GrillRH Lower Grill
-
28M5342673 LH Lower GrillLH Lower Grill
-
29414227300 ClipClip
-
30414631900 Acoustic FoamAcoustic Foam
-
31M5342990 RH Cover. WT 600RH Cover. WT 600
-
32M5343408 LH Cover. WT 600LH Cover. WT 600
-
33M5343409 Fan Cover. WT 600Fan Cover. WT 600
-
36M40179 Screw M5X25Screw M5X25
-
37M33062 Nut M5Nut M5
-
38M5147892 WindshieldWindshield
-
39605449084 Short Tube. WT 600Short Tube. WT 600
-
40605450205 Support. WT 600Support. WT 600
-
41605349151 Headlight Foam Seal. WT 600Headlight Foam Seal. WT 600
-
43M36097 RivetRivet
