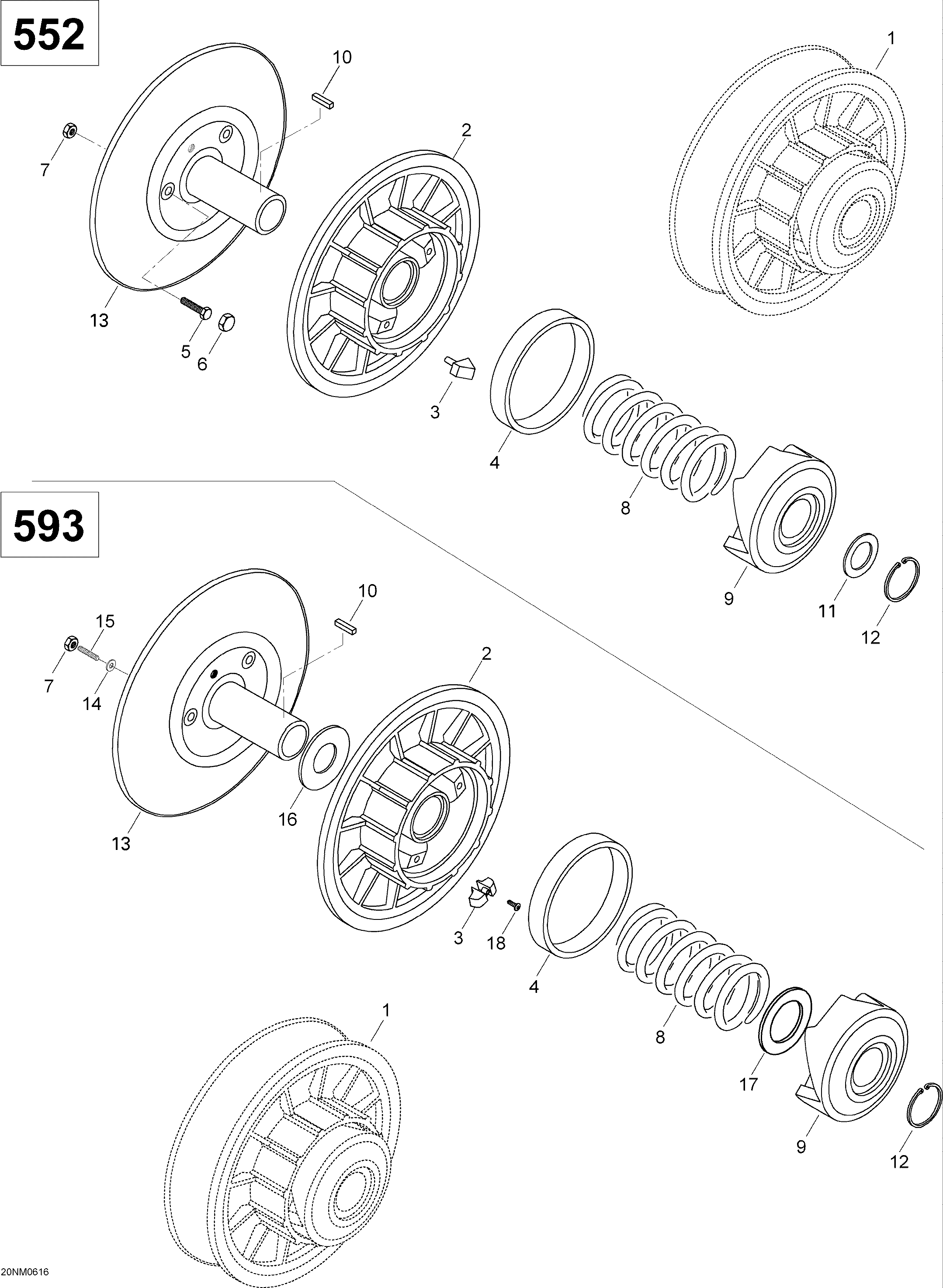

05- Driven Pulley 600 для BRP Ski-Doo Skandic WT 600 - 2006
-
№АртикулНазвание
-
2M140066 Sliding Flange. Includes 2 to 4 and 18, WT 600Sliding Flange. Includes 2 to 4 and 18, WT 600
-
3M140068 Shoe Cam Slider. WT 600Shoe Cam Slider. WT 600
-
4M140053 BushingBushing
-
7232061414 Hex Nut M6. WT 600Hex Nut M6. WT 600
-
8417119100 Release SpringRelease Spring
-
9M140070 Cam 35/30 Degr.. WT 600Cam 35/30 Degr.. WT 600
-
10417119400 KeyKey
-
12371903100 CirclipCirclip
-
13M140065 Fixed Flange. WT 600Fixed Flange. WT 600
-
14420245370 Washer. WT 600Washer. WT 600
-
15619100003 Stud. WT 600Stud. WT 600
-
16504099600 Stopper Washer. WT 600Stopper Washer. WT 600
-
17619100007 Stop Washer. WT 600Stop Washer. WT 600
-
18619100005 Screw. WT 600Screw. WT 600
