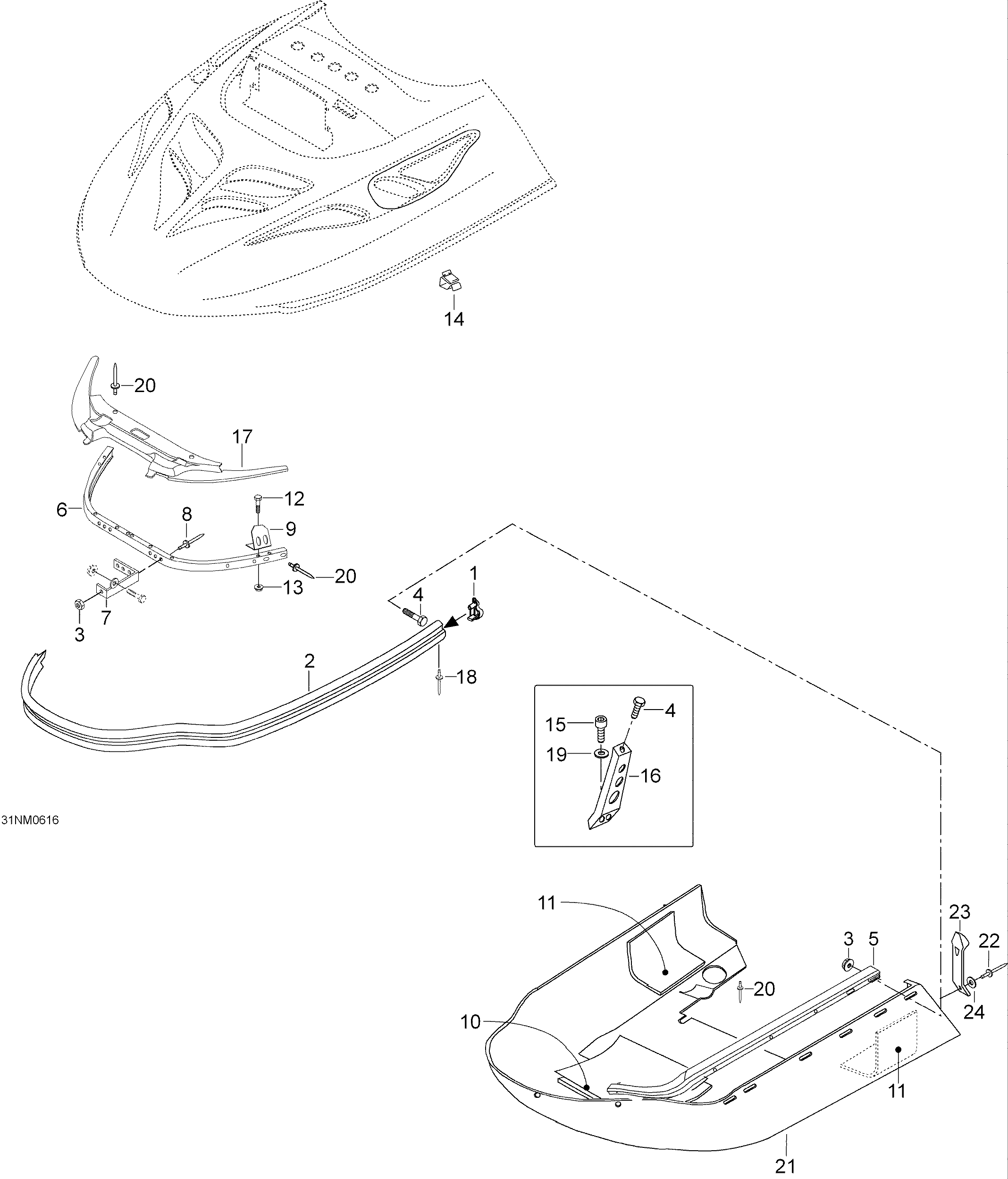

09- Bottom Pan 600 WT для BRP Ski-Doo Skandic WT 600 - 2006
-
№АртикулНазвание
-
1M549096R RH CapRH Cap
-
1M549096L LH CapLH Cap
-
2M5242798 Front BumperFront Bumper
-
3M33200 Nut M6Nut M6
-
4M40078 ScrewScrew
-
5M5242804 RH Hood GuideRH Hood Guide
-
5M5242803 LH Hood GuideLH Hood Guide
-
6M5246120 Front Support. Includes 6 to 8Front Support. Includes 6 to 8
-
7M5342234 HingeHinge
-
7M5342345 HingeHinge
-
8M36083 RivetRivet
-
9M5443217 Hood GuideHood Guide
-
10M5345088 Acoustic FoamAcoustic Foam
-
11M5345089 Foam AcousticFoam Acoustic
-
12M40247 Screw M5 X 16Screw M5 X 16
-
13M33062 Nut M5Nut M5
-
14414227300 ClipClip
-
15M40332 ScrewScrew
-
16M5342509 Bumper SupportBumper Support
-
17605252352 CoverCover
-
18M36097 RivetRivet
-
19234161471 Lock Washer 6 mmLock Washer 6 mm
-
20M36036 Rivet-BlackRivet-Black
-
21605152310 Bottom Pan. WT 600Bottom Pan. WT 600
-
22M36009 Rivet. WT 550/WT 600Rivet. WT 550/WT 600
-
24M20008 Washer 5 mm. WT 550/WT 600Washer 5 mm. WT 550/WT 600
