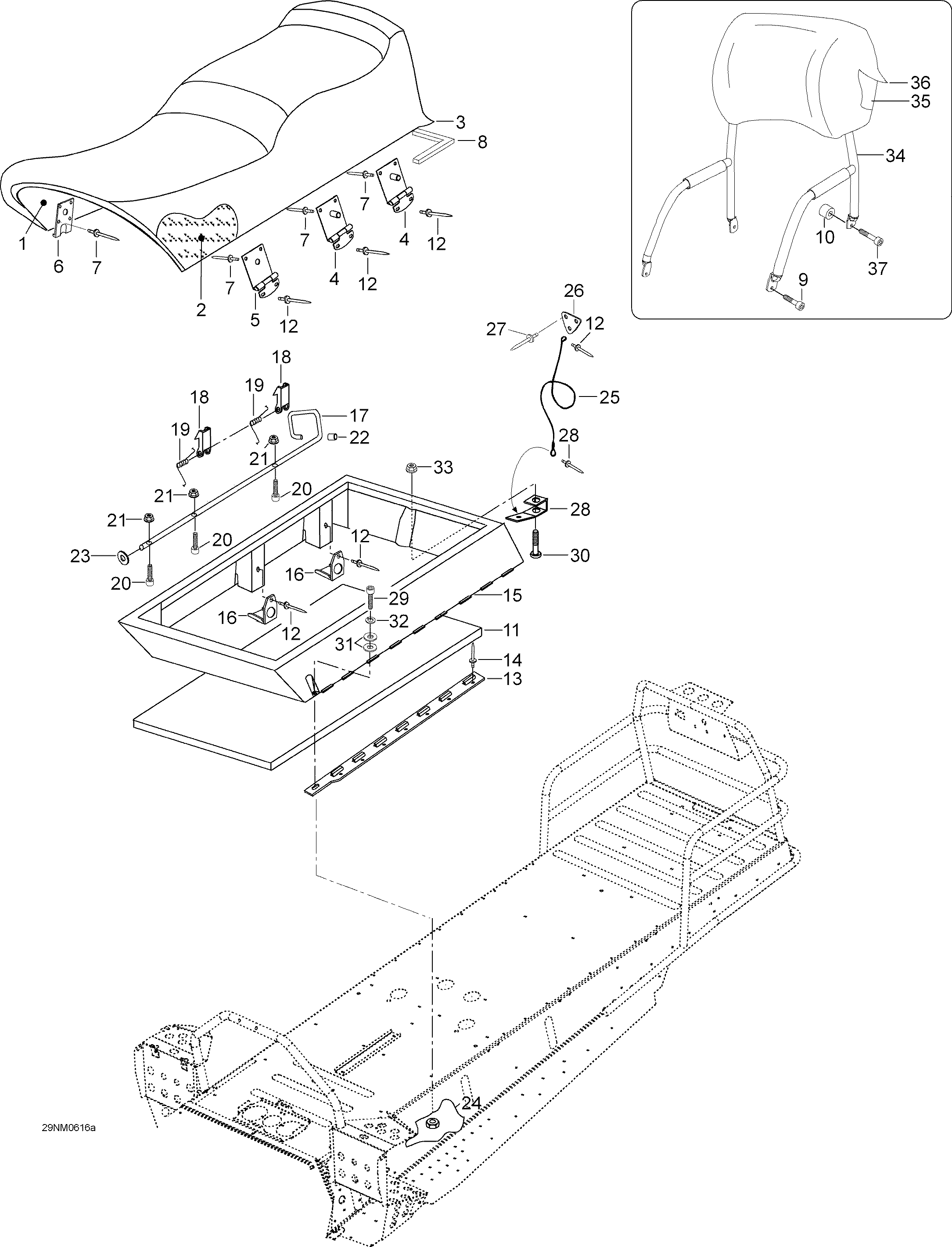

09- Seat WT для BRP Ski-Doo Skandic WT 600 - 2006
-
№АртикулНазвание
-
1M519394 Sub SeatSub Seat
-
2605148623 Foam SeatFoam Seat
-
3605153063 CoverCover
-
4M549874 HingeHinge
-
5M5440581 HingeHinge
-
6M549732 Lock PlateLock Plate
-
7M36071 RivetRivet
-
8M5440059 CushionCushion
-
9M40388 Socket ScrewSocket Screw
-
10M5440665 SpacerSpacer
-
11M5344621 Foam. WT 550Foam. WT 550
-
11M5346079 Foam. WT 600Foam. WT 600
-
12M36489 RivetRivet
-
13M5144029 RH SupportRH Support
-
13M5144028 LH SupportLH Support
-
14M36083 RivetRivet
-
15M5142066 Welded Seat Base WeldWelded Seat Base Weld
-
16M5443661 SupportSupport
-
17M5344987 Pivot PinPivot Pin
-
18605451589 Cam LockCam Lock
-
19M5444439 SpringSpring
-
20M40144 Screw M4 X 16Screw M4 X 16
-
21232541414 Elastic Stop Nut M4 X 70Elastic Stop Nut M4 X 70
-
22M28019 CapCap
-
23M20004 WasherWasher
-
24M33066 Nut M6Nut M6
-
25M546777 Retainer Cable. WT 550Retainer Cable. WT 550
-
25M5447746 Retainer Cable. WT 600Retainer Cable. WT 600
-
26605452535 SupportSupport
-
27M36038 RivetRivet
-
28M5444464 Keeper Cable. WT 550Keeper Cable. WT 550
-
29M40052 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
30M40149 Screw M6 X 30. WT 550Screw M6 X 30. WT 550
-
31M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
-
32234161471 Lock Washer 6 mmLock Washer 6 mm
-
33M33200 Nut M6Nut M6
-
34M5245664 BackrestBackrest
-
35M539399 Backrest FoamBackrest Foam
-
36M5340917 Backrest CoverBackrest Cover
-
37M40389 Allen ScrewAllen Screw
