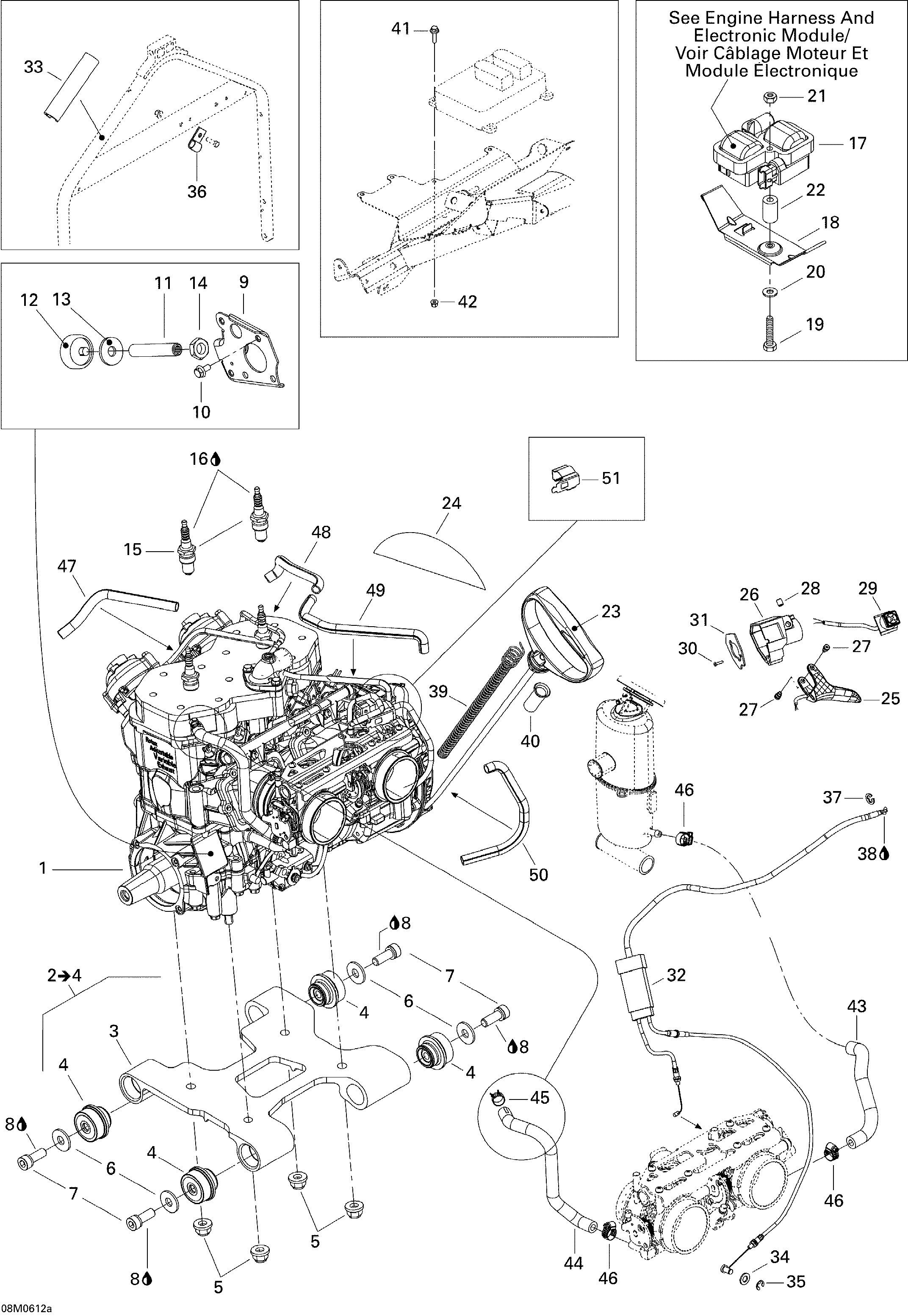

01- Engine And Engine Support для BRP Ski-Doo Summit 600 HO SDI, Adrenaline - 2006
-
№АртикулНазвание
-
1400509765 Engine 593 HO SDIEngine 593 HO SDI
-
1400509768 Engine 593 HO SDI. EuropeEngine 593 HO SDI. Europe
-
2512060050 Engine Support Ass'y. Includes 2 to 4Engine Support Ass'y. Includes 2 to 4
-
3512060051 Engine SupportEngine Support
-
4512059691 Rubber MountRubber Mount
-
5233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
6506151251 WasherWasher
-
7205002544 Socket Head Screw M10 X 25Socket Head Screw M10 X 25
-
8413703400 Loctite 222, 10 CcLoctite 222, 10 Cc
-
9512059840 PlatePlate
-
10207561244 Hex Flanged Screw M6 X 12, Scotch GripHex Flanged Screw M6 X 12, Scotch Grip
-
11250500007 Stopper ScrewStopper Screw
-
12512059610 StopperStopper
-
13512059057 WasherWasher
-
14232170411 Hex. Jam Nut M14Hex. Jam Nut M14
-
15512060029 Spark Plug BR8ECSSpark Plug BR8ECS
-
16293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
17420266070 Double Ignition CoilDouble Ignition Coil
-
18512059865 Coil SupportCoil Support
-
19207064544 Hex Screw M6 X 45Hex Screw M6 X 45
-
20234061410 Flat Washer M6Flat Washer M6
-
21232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
22512059812 SpacerSpacer
-
23572084400 Starter GripStarter Grip
-
24512059893 Reflective SheetReflective Sheet
-
25512059891 Handle Ass'yHandle Ass'y
-
26512059295 Throttle HousingThrottle Housing
-
27732601143 Flanged ScrewFlanged Screw
-
28414440800 Set Screw M8 X 10Set Screw M8 X 10
-
29515176091 Kill SwitchKill Switch
-
30250000022 Phillips ScrewPhillips Screw
-
31512059507 PlatePlate
-
32512060086 Throttle CableThrottle Cable
-
33512059750 ProtectorProtector
-
34234081100 Flat Washer 8 mmFlat Washer 8 mm
-
35414753500 CirclipCirclip
-
36414176000 Clip, CableClip, Cable
-
37414274500 CirclipCirclip
-
38293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
39512059535 Rope GuideRope Guide
-
40512059536 TubeTube
-
41207652044 Flanged Hex Screw M5 X 20Flanged Hex Screw M5 X 20
-
42233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
43512059563 Formed HoseFormed Hose
-
44512059990 Formed HoseFormed Hose
-
45513033029 Spring ClampSpring Clamp
-
46293650170 Tridon Hose ClampTridon Hose Clamp
-
47409901700 Tubing, 9 mmTubing, 9 mm
-
48409901700 Tubing, 9 mmTubing, 9 mm
-
49409901700 Tubing, 9 mmTubing, 9 mm
-
50409901700 Tubing, 9 mmTubing, 9 mm
-
51512059809 Heating Element BracketHeating Element Bracket
