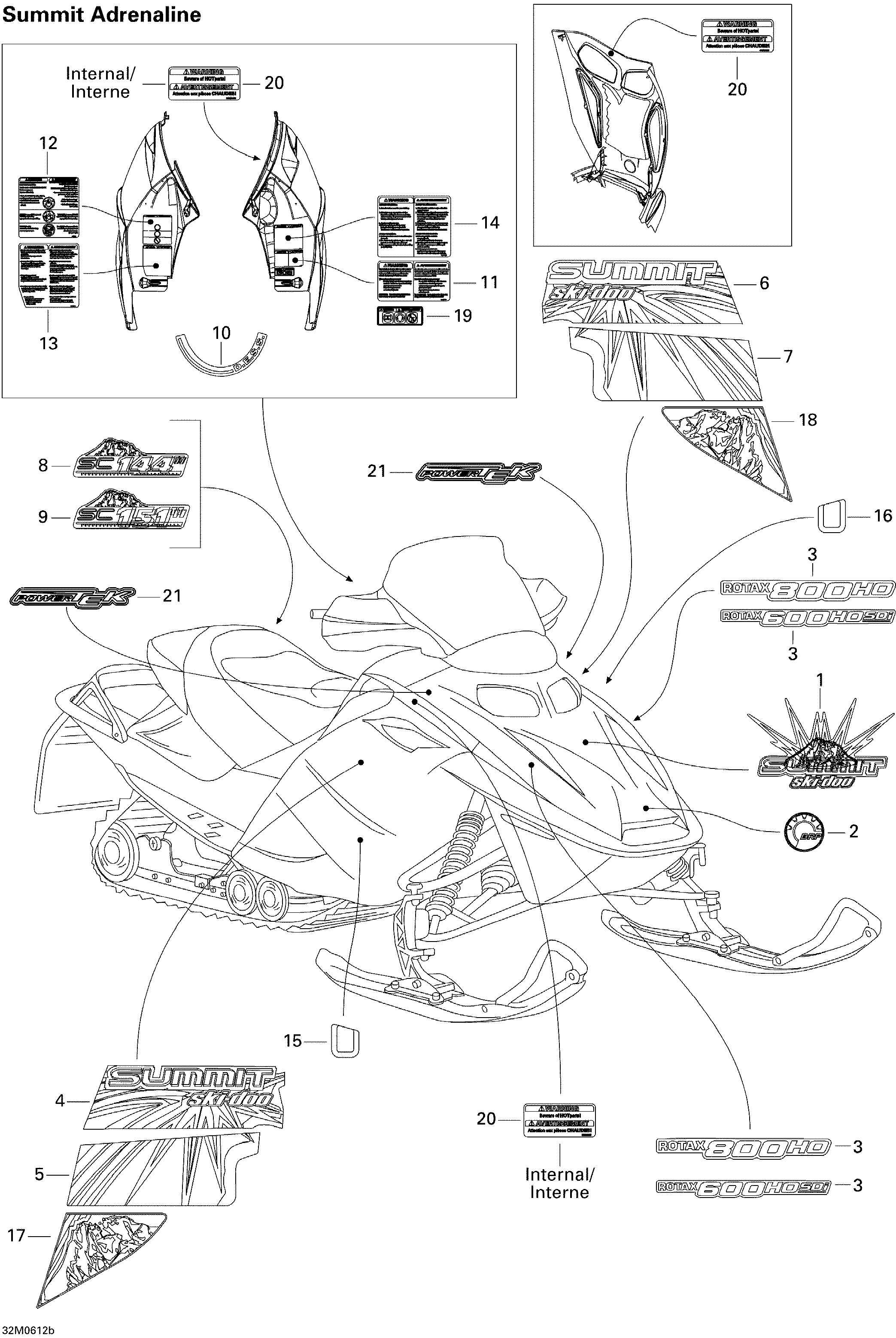

09- Decals 600HO для BRP Ski-Doo Summit 600 HO SDI, Adrenaline - 2006
-
№АртикулНазвание
-
1516002799 Front Decal. Red-Black ModelFront Decal. Red-Black Model
-
1516002800 Front Decal. Blue-Black ModelFront Decal. Blue-Black Model
-
2219902468 Logo BrpLogo Brp
-
3516002759 Hood Decal 600 H.o. SDI. 600 H.O. SDIHood Decal 600 H.o. SDI. 600 H.O. SDI
-
4516002801 RH Side Decal. Red-Black ModelRH Side Decal. Red-Black Model
-
4516002804 RH Side Decal. Blue-Black ModelRH Side Decal. Blue-Black Model
-
5516002807 RH Lower Side Decal. Red-Black ModelRH Lower Side Decal. Red-Black Model
-
5516002809 RH Lower Side Decal. Blue-Black ModelRH Lower Side Decal. Blue-Black Model
-
6516002802 LH Side Decal. Red-Black ModelLH Side Decal. Red-Black Model
-
6516002805 LH Side Decal. Blue-Black ModelLH Side Decal. Blue-Black Model
-
7516002806 LH Lower Side Decal. Red-Black ModelLH Lower Side Decal. Red-Black Model
-
7516002808 LH Lower Side Decal. Blue-Black ModelLH Lower Side Decal. Blue-Black Model
-
8516002553 Forming Frame Decal 144''. Adrenaline with Track 144''Forming Frame Decal 144''. Adrenaline with Track 144''
-
10516001335 Dess DecalDess Decal
-
11516003026 Security Label, Passenger NumberSecurity Label, Passenger Number
-
12516002908 Security Label, GeneralSecurity Label, General
-
13516003029 Security Label, FamiliarizationSecurity Label, Familiarization
-
14516003024 Security Label, StartingSecurity Label, Starting
-
15516001910 RH Protector DecalRH Protector Decal
-
16516001911 LH Protector DecalLH Protector Decal
-
17516002811 RH Rear Lower Decal. Red-Black ModelRH Rear Lower Decal. Red-Black Model
-
17516002813 RH Rear Lower Decal. Blue-Black ModelRH Rear Lower Decal. Blue-Black Model
-
18516002810 LH Rear Lower Decal. Red-Black ModelLH Rear Lower Decal. Red-Black Model
-
18516002812 LH Rear Lower Decal. Blue-Black ModelLH Rear Lower Decal. Blue-Black Model
-
19516003027 Europe Pictogram Decal. EuropeEurope Pictogram Decal. Europe
-
20516002965 Security Label, Hot PartsSecurity Label, Hot Parts
