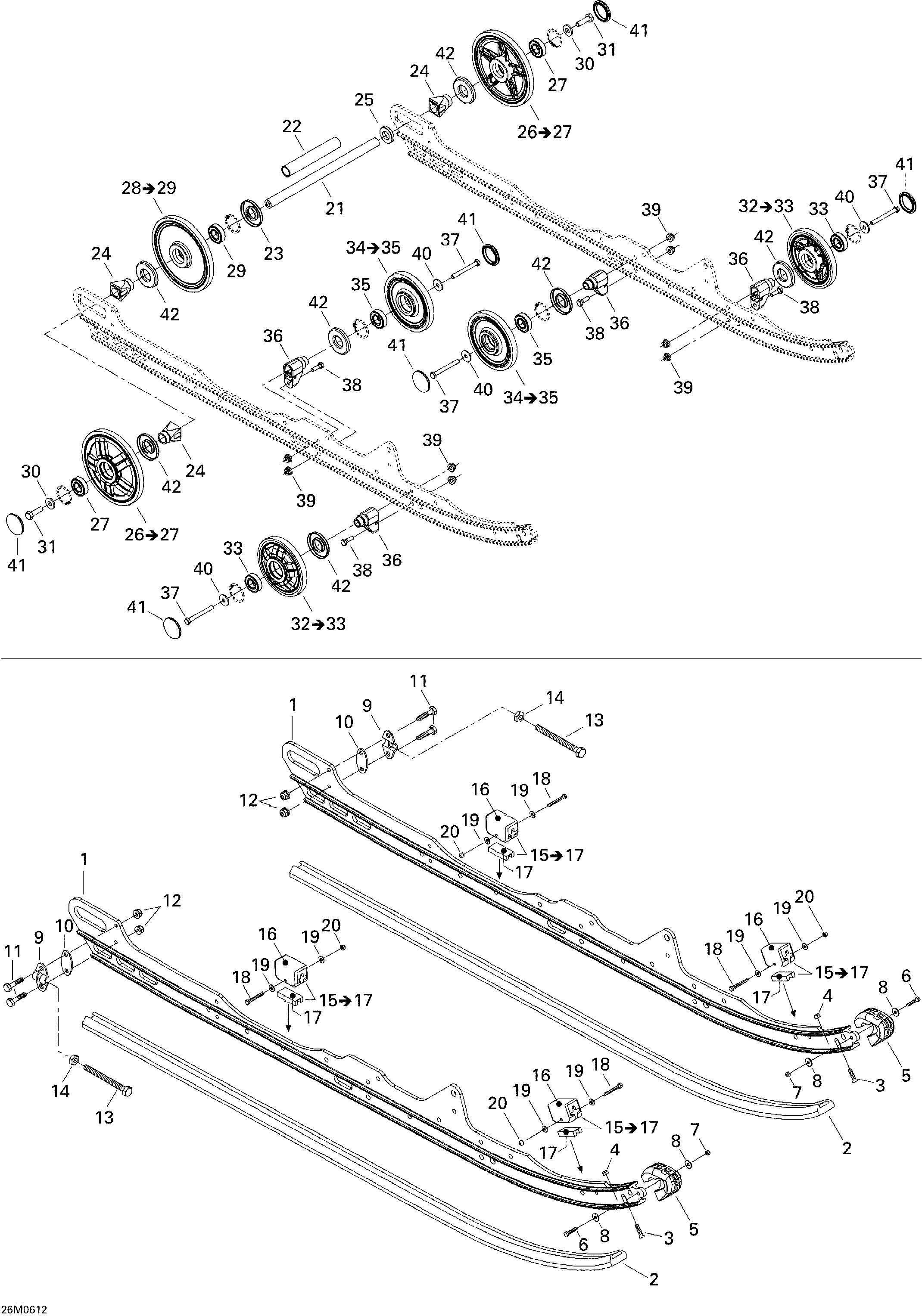

08- Rear Suspension 600HO для BRP Ski-Doo Summit 600 HO SDI, Adrenaline - 2006
-
№АртикулНазвание
-
1503191050 Runner 151''. X & AdrenalineRunner 151''. X & Adrenaline
-
1503191138 Runner 144''. X & AdrenalineRunner 144''. X & Adrenaline
-
2503190368 Rail 151'', Black. X & AdrenalineRail 151'', Black. X & Adrenaline
-
2503190384 Rail 144'', Black. X & AdrenalineRail 144'', Black. X & Adrenaline
-
3208562560 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5572075400 Runner ProtectorRunner Protector
-
6207152544 Hex Screw M5 X 25Hex Screw M5 X 25
-
7232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
8391301600 WasherWasher
-
9503155300 TensionerTensioner
-
10503189160 Tensioner SpacerTensioner Spacer
-
11207063044 Hex Screw M6 X 30Hex Screw M6 X 30
-
12233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
13230100044 Hex Screw M10 X 100Hex Screw M10 X 100
-
14233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
15503190905 Rubber Stopper Ass'y. Includes 15 to 17Rubber Stopper Ass'y. Includes 15 to 17
-
16570063000 Rubber StopperRubber Stopper
-
17572084800 Reinforcement StopperReinforcement Stopper
-
18207054044 Hex Screw M5 X 40Hex Screw M5 X 40
-
19391301700 WasherWasher
-
20232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
21503190429 Rear AxleRear Axle
-
22503190430 Rear Long SpacerRear Long Spacer
-
23503190682 Labyrinth SealLabyrinth Seal
-
24503190428 Rear Wheel SpacerRear Wheel Spacer
-
25503190432 WasherWasher
-
26503190752 Wheel 180. Adrenaline, Includes 26 to 27Wheel 180. Adrenaline, Includes 26 to 27
-
26503191103 Wheel 180 With Pattern Ass'y, Red. X & Adrenaline, Includes 26 to 27Wheel 180 With Pattern Ass'y, Red. X & Adrenaline, Includes 26 to 27
-
27503190396 Ball BearingBall Bearing
-
28503190395 Wheel 180. Includes 28 to 29Wheel 180. Includes 28 to 29
-
29503190396 Ball BearingBall Bearing
-
30503190439 WasherWasher
-
31250000019 Hex Screw With NylonHex Screw With Nylon
-
32503191317 Wheel 147 With Pattern Ass'y, Full Moon. Adrenaline, Includes 32 to 33Wheel 147 With Pattern Ass'y, Full Moon. Adrenaline, Includes 32 to 33
-
32503191320 Wheel 147 With Pattern Ass'y, Red. X & Adrenaline, Includes 32 to 33Wheel 147 With Pattern Ass'y, Red. X & Adrenaline, Includes 32 to 33
-
33503190396 Ball BearingBall Bearing
-
34503191311 Wheel 147 Ass'y. Includes 34 to 35Wheel 147 Ass'y. Includes 34 to 35
-
35503190396 Ball BearingBall Bearing
-
36503190580 SupportSupport
-
37207087544 Hex Screw M8 X 75Hex Screw M8 X 75
-
38207182544 Hex Screw M8 X 25Hex Screw M8 X 25
-
39233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
40211200041 WasherWasher
-
41570063600 Wheel CapWheel Cap
-
42503190434 Labyrinth SealLabyrinth Seal
