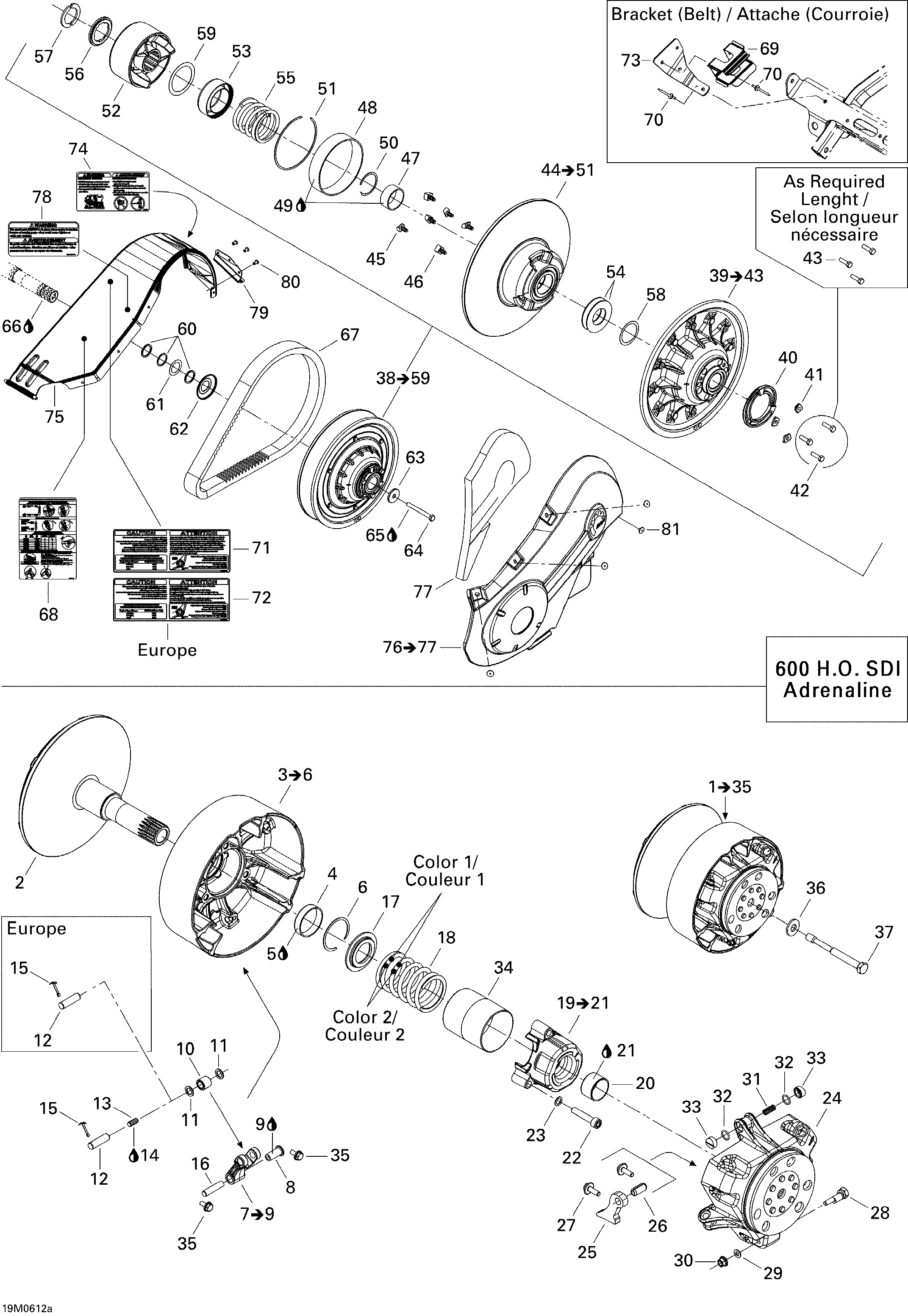

05- Pulley System 600HO SDI для BRP Ski-Doo Summit 600 HO SDI, Adrenaline - 2006
-
№АртикулНазвание
-
2417222294 Fixed Flange Ass'yFixed Flange Ass'y
-
3417222181 Sliding Flange Ass'y. Includes 3 to 6Sliding Flange Ass'y. Includes 3 to 6
-
4417222758 BushingBushing
-
5413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
6293370037 CirclipCirclip
-
7417222671 Lever Ass'y. Includes 7 to 9Lever Ass'y. Includes 7 to 9
-
8417222633 BushingBushing
-
9413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
10417003900 Roller Ass'yRoller Ass'y
-
11417004302 Stopper WasherStopper Washer
-
12417222477 Threaded PinThreaded Pin
-
12417004308 Pin. EuropePin. Europe
-
13206261699 Socket Set Screw M6 X 16Socket Set Screw M6 X 16
-
14293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
15732958001 Cotter PinCotter Pin
-
16417009202 Lever AxleLever Axle
-
17417222312 Spring SeatSpring Seat
-
18415015400 Spring, Violet/greenSpring, Violet/green
-
18414689500 Spring, Blue/yellow. EuropeSpring, Blue/yellow. Europe
-
19417007500 Spring Cover Ass'y. Includes 19 to 21Spring Cover Ass'y. Includes 19 to 21
-
20417009204 BushingBushing
-
21413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
22205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
23250200009 Lock Washer 8 mmLock Washer 8 mm
-
24417222213 Governor CupGovernor Cup
-
25417222596 Ramp 410Ramp 410
-
26250400009 Rolled Pin 10 X 22Rolled Pin 10 X 22
-
27250000059 Hex Flanged Scew M6 X 18Hex Flanged Scew M6 X 18
-
28417005500 Calibration ScrewCalibration Screw
-
29417005600 WasherWasher
-
30233061414 Hex Flanged Nut M6Hex Flanged Nut M6
-
31417005700 SpringSpring
-
32732401030 O-RingO-Ring
-
33417005800 Slider ShoeSlider Shoe
-
34417009205 GuardGuard
-
35210361296 Hex Forming Screw M6 X 12Hex Forming Screw M6 X 12
-
36250200006 Conical Spring Washer 14 mmConical Spring Washer 14 mm
-
37417120000 Drive Pulley BoltDrive Pulley Bolt
-
39417126807 Fixed Flange Ass'y. Includes 39 to 43Fixed Flange Ass'y. Includes 39 to 43
-
40415005800 Adjustment RingAdjustment Ring
-
41415005900 Adjustment ShimAdjustment Shim
-
42207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
43207162244 Hex Screw M6 X 22Hex Screw M6 X 22
-
44417126909 Sliding Flange Ass'y. Includes 44 to 51Sliding Flange Ass'y. Includes 44 to 51
-
45417126373 Rear Cam Slider ShoeRear Cam Slider Shoe
-
46417126374 Front Cam Slider ShoeFront Cam Slider Shoe
-
47417126901 BushingBushing
-
48417126902 BushingBushing
-
49413408300 Loctite, Black Max, 3 mlLoctite, Black Max, 3 ml
-
50371911200 CirclipCirclip
-
51417126878 CirclipCirclip
-
52417126457 Cam Ass'YCam Ass'Y
-
52417126445 Cam Ass'y. EuropeCam Ass'y. Europe
-
53417126381 GuardGuard
-
54504099600 Stopper WasherStopper Washer
-
55417126686 Spring, RedSpring, Red
-
55417126687 Spring, Black. EuropeSpring, Black. Europe
-
56417126733 SpacerSpacer
-
57417126734 Half KeyHalf Key
-
58504112300 ShimShim
-
59417126322 Swivel AbutmentSwivel Abutment
-
60417300252 SpacerSpacer
-
60417300265 SpacerSpacer
-
61504112000 ShimShim
-
62417300238 ProtectorProtector
-
63517302322 Strength WasherStrength Washer
-
64207087544 Hex Screw M8 X 75Hex Screw M8 X 75
-
65293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
66293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
67417300197 Drive BeltDrive Belt
-
68516001639 Decal, Suspension AdjustmentDecal, Suspension Adjustment
-
69517281905 BracketBracket
-
70390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
71516002737 Caution Label, AltitudeCaution Label, Altitude
-
72516002738 Caution Label, Altitude. EuropeCaution Label, Altitude. Europe
-
73417300282 BracketBracket
-
74516002674 Emergency Starting LabelEmergency Starting Label
-
75417300213 Belt GuardBelt Guard
-
76417300301 Side Protector Ass'y. Includes 76 to 77Side Protector Ass'y. Includes 76 to 77
-
77417300246 FoamFoam
-
78516002670 Security Label, Belt GuardSecurity Label, Belt Guard
-
79417300216 Belt Guard BracketBelt Guard Bracket
-
80390909200 Avex RivetAvex Rivet
-
81293150103 Pop Rivet 3/16''Pop Rivet 3/16''
