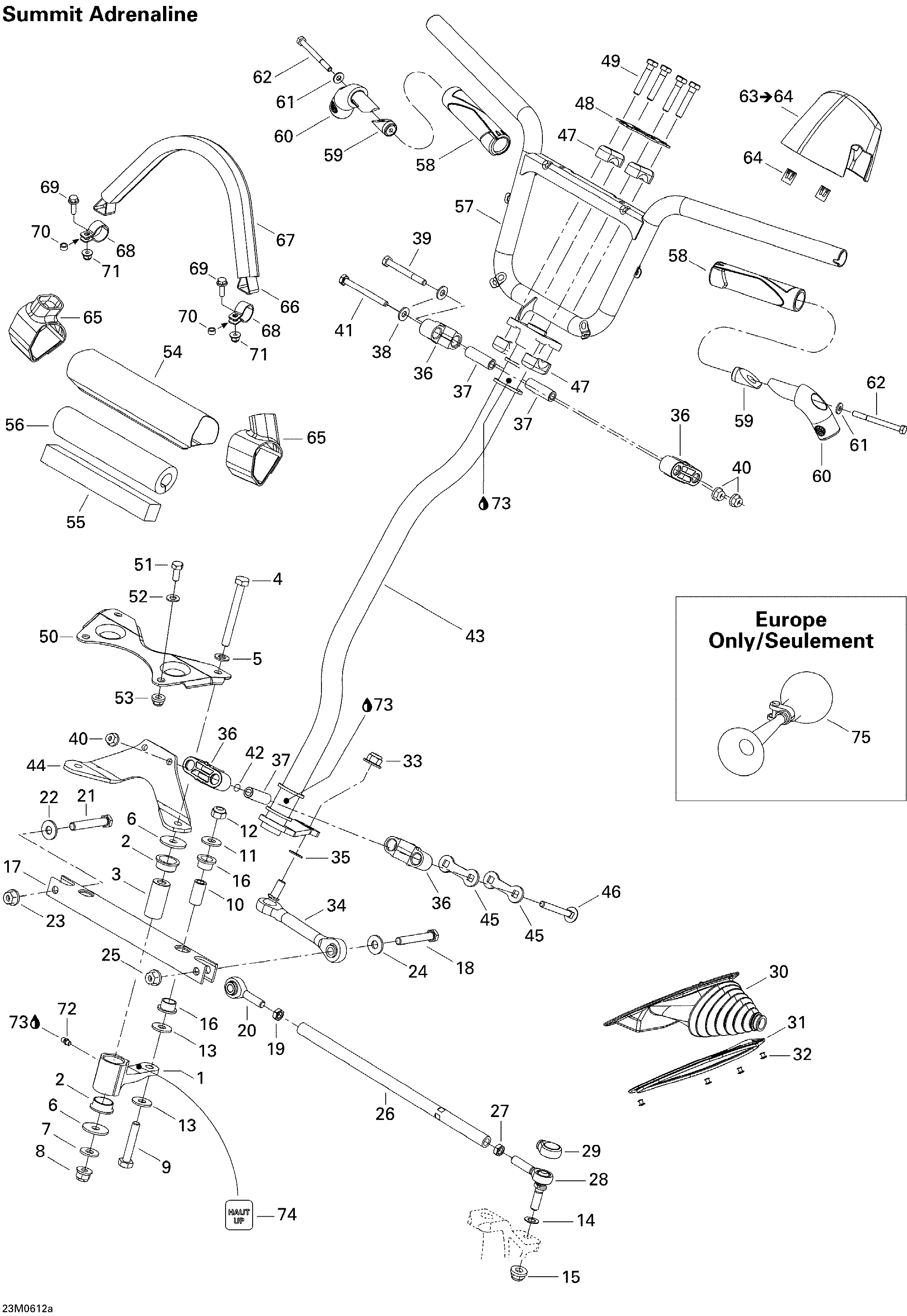

07- Steering System Adrenaline 600HO для BRP Ski-Doo Summit 600 HO SDI, Adrenaline - 2006
-
№АртикулНазвание
-
1506151627 RH Swivel ArmRH Swivel Arm
-
1506151628 LH Swivel ArmLH Swivel Arm
-
2415041100 CushionCushion
-
3506151272 Swivel PivotSwivel Pivot
-
4207009086 Hex Screw M10 X 90Hex Screw M10 X 90
-
5503183800 WasherWasher
-
6506150000 Washer 10 mmWasher 10 mm
-
7506151251 WasherWasher
-
8732610084 Hex Flanged Nut M10Hex Flanged Nut M10
-
9207005544 Hex Screw M10 X 55Hex Screw M10 X 55
-
10506151273 Pivot BarPivot Bar
-
11224002251 Flat WasherFlat Washer
-
12233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
13250200032 WasherWasher
-
14503175800 WasherWasher
-
15250100073 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
16506150200 Bushing SwivelBushing Swivel
-
17506151328 Swivel BarSwivel Bar
-
18207006544 Hex Screw M10 X 65Hex Screw M10 X 65
-
19250100016 LH Thread Hex Jam Nut M10LH Thread Hex Jam Nut M10
-
20506152018 LH Thread Ball JointLH Thread Ball Joint
-
21207004544 Hex Screw M10 X 45Hex Screw M10 X 45
-
22224002251 Flat WasherFlat Washer
-
23233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
24224002251 Flat WasherFlat Washer
-
25233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
26506151375 Tie-RodTie-Rod
-
27732610010 RH Thread Hex Jam Nut M10RH Thread Hex Jam Nut M10
-
28506152017 RH Thread Ball JointRH Thread Ball Joint
-
29506151650 Protection CapProtection Cap
-
30506151725 RH Tie-Rod CapRH Tie-Rod Cap
-
30506151726 LH Tie-Rod CapLH Tie-Rod Cap
-
31506151356 RH Retainer RingRH Retainer Ring
-
31506151357 LH Retainer RingLH Retainer Ring
-
32390909100 Avex RivetAvex Rivet
-
33250100073 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
34506151621 Ball Joint, DoubleBall Joint, Double
-
35503175800 WasherWasher
-
36506150400 Housing HalfHousing Half
-
37506150500 Housing BushingHousing Bushing
-
38503189157 WasherWasher
-
39207087044 Hex Screw M8 X 70Hex Screw M8 X 70
-
40233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
41207088044 Hex Screw M8 X 80Hex Screw M8 X 80
-
42506151140 O-RingO-Ring
-
43506151855 Main TubeMain Tube
-
44506151330 Steering Shaft SupportSteering Shaft Support
-
45506150600 Stopper PlateStopper Plate
-
46207787044 Carriage Bolt M8 X 70Carriage Bolt M8 X 70
-
47506151622 Steering SupportSteering Support
-
48506151547 ReinforcementReinforcement
-
49250000082 Hex Screw With Nylon M8 X 50Hex Screw With Nylon M8 X 50
-
50506151536 Pivot SupportPivot Support
-
51207182544 Hex Screw M8 X 25Hex Screw M8 X 25
-
52234081410 Flat Washer 8 mmFlat Washer 8 mm
-
53233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
54506152050 Steering CoverSteering Cover
-
55506151861 Steering Cover Foam InsertSteering Cover Foam Insert
-
56506151862 Steering Cover FoamSteering Cover Foam
-
57506151767 HandlebarHandlebar
-
58506152063 Handle Grip. 600 H.O. SDI AdrenalineHandle Grip. 600 H.O. SDI Adrenaline
-
59506151827 Lock WedgeLock Wedge
-
60506151825 Short J-HookShort J-Hook
-
61250200039 Flat WasherFlat Washer
-
62207067084 Hex Screw M6 X 70Hex Screw M6 X 70
-
63506151660 Cap. Includes 63 to 64Cap. Includes 63 to 64
-
64517302785 ClipClip
-
65506151738 ProtectorProtector
-
66415095500 Tie-DownTie-Down
-
67415090200 GripGrip
-
68506151792 Support Plate, BlackSupport Plate, Black
-
69207662084 Hex Flanged Screw M6 X 20Hex Flanged Screw M6 X 20
-
70293900029 BushingBushing
-
71233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
72408200700 Grease FittingGrease Fitting
-
73219700417 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
74516001750 Haut/Up DecalHaut/Up Decal
-
75415040700 Horn. EuropeHorn. Europe
