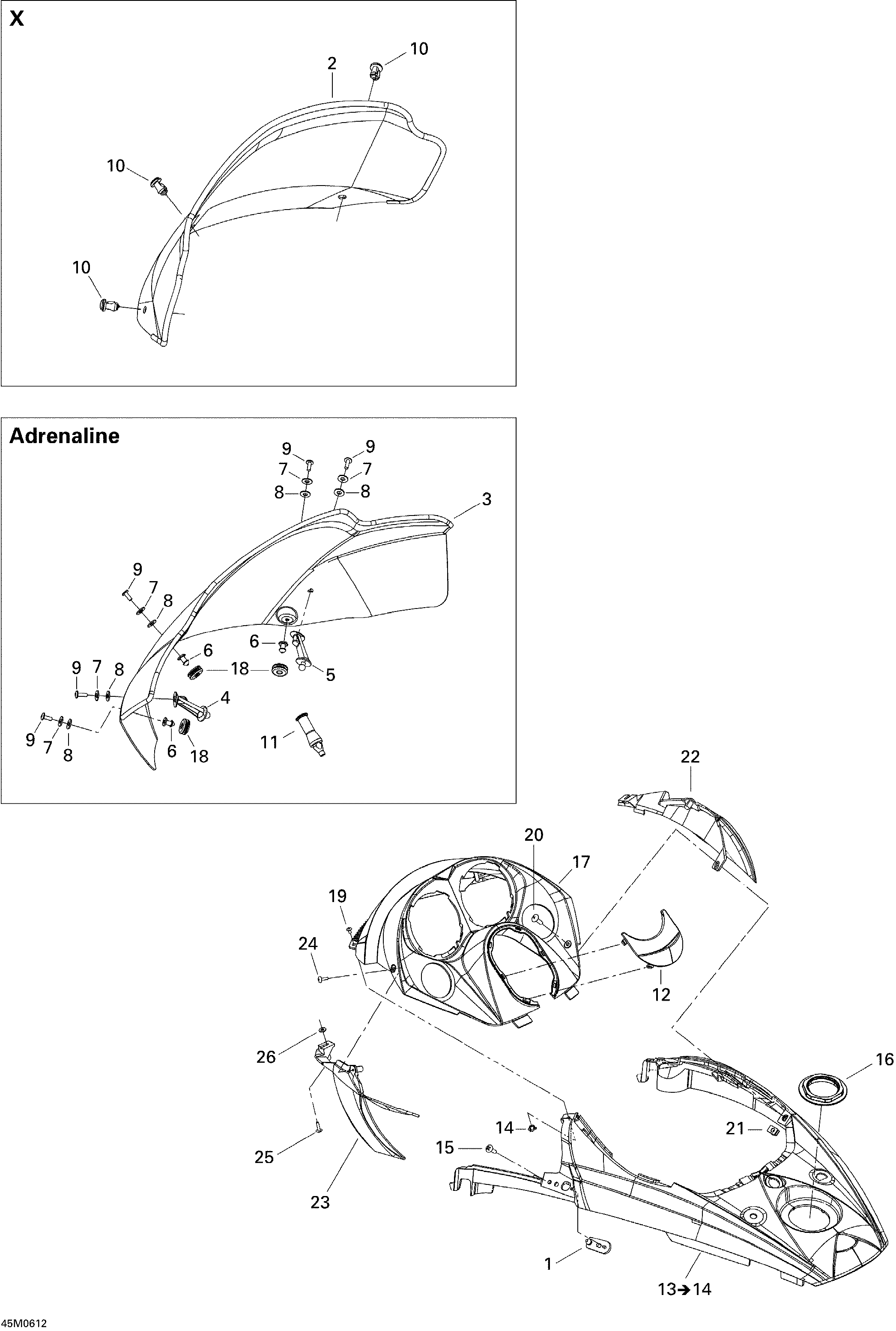

09- Windshield And Console 600HO для BRP Ski-Doo Summit 600 HO SDI, Adrenaline - 2006
-
№АртикулНазвание
-
1517302616 Hood LatchHood Latch
-
3517303174 Medium Windshield. AdrenalineMedium Windshield. Adrenaline
-
4517303214 LH Windshield Support. AdrenalineLH Windshield Support. Adrenaline
-
5517303215 RH Windshield Support. AdrenalineRH Windshield Support. Adrenaline
-
6517303439 Knob. AdrenalineKnob. Adrenaline
-
7250200025 Washer 5 mm. AdrenalineWasher 5 mm. Adrenaline
-
8250200024 Rubber Washer 5 mm. AdrenalineRubber Washer 5 mm. Adrenaline
-
9250000146 Torx Screw K50 X 16. AdrenalineTorx Screw K50 X 16. Adrenaline
-
11517303197 Windshield Support. AdrenalineWindshield Support. Adrenaline
-
12517302592 Console CapConsole Cap
-
13517303069 Center Console. Includes 13 to 14, Adrenaline 600 H.O. SDI, Blue-Black ModelCenter Console. Includes 13 to 14, Adrenaline 600 H.O. SDI, Blue-Black Model
-
13517303656 Center Console. Includes 13 to 14, Adrenaline 600 H.O. SDI, Red-Black ModelCenter Console. Includes 13 to 14, Adrenaline 600 H.O. SDI, Red-Black Model
-
14250100030 T Flanged Nut, M4. Adrenaline 600 H.O. SDI, Blue-Black ModelT Flanged Nut, M4. Adrenaline 600 H.O. SDI, Blue-Black Model
-
14250100030 T Flanged Nut, M4. Adrenaline 600 H.O. SDI, Red-Black ModelT Flanged Nut, M4. Adrenaline 600 H.O. SDI, Red-Black Model
-
15250000128 Torx Screw M6 X 20Torx Screw M6 X 20
-
16517302575 Console NutConsole Nut
-
17517303470 Indicator Support. AdrenalineIndicator Support. Adrenaline
-
18517302841 Grommet. AdrenalineGrommet. Adrenaline
-
19250000127 Torx Screw M4 X 8Torx Screw M4 X 8
-
20250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
21250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
22517302546 RH Air Deflector. AdrenalineRH Air Deflector. Adrenaline
-
23517302547 LH Air Deflector. AdrenalineLH Air Deflector. Adrenaline
-
24250000084 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
25250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
26234042600 Flat Washer 4 mmFlat Washer 4 mm
