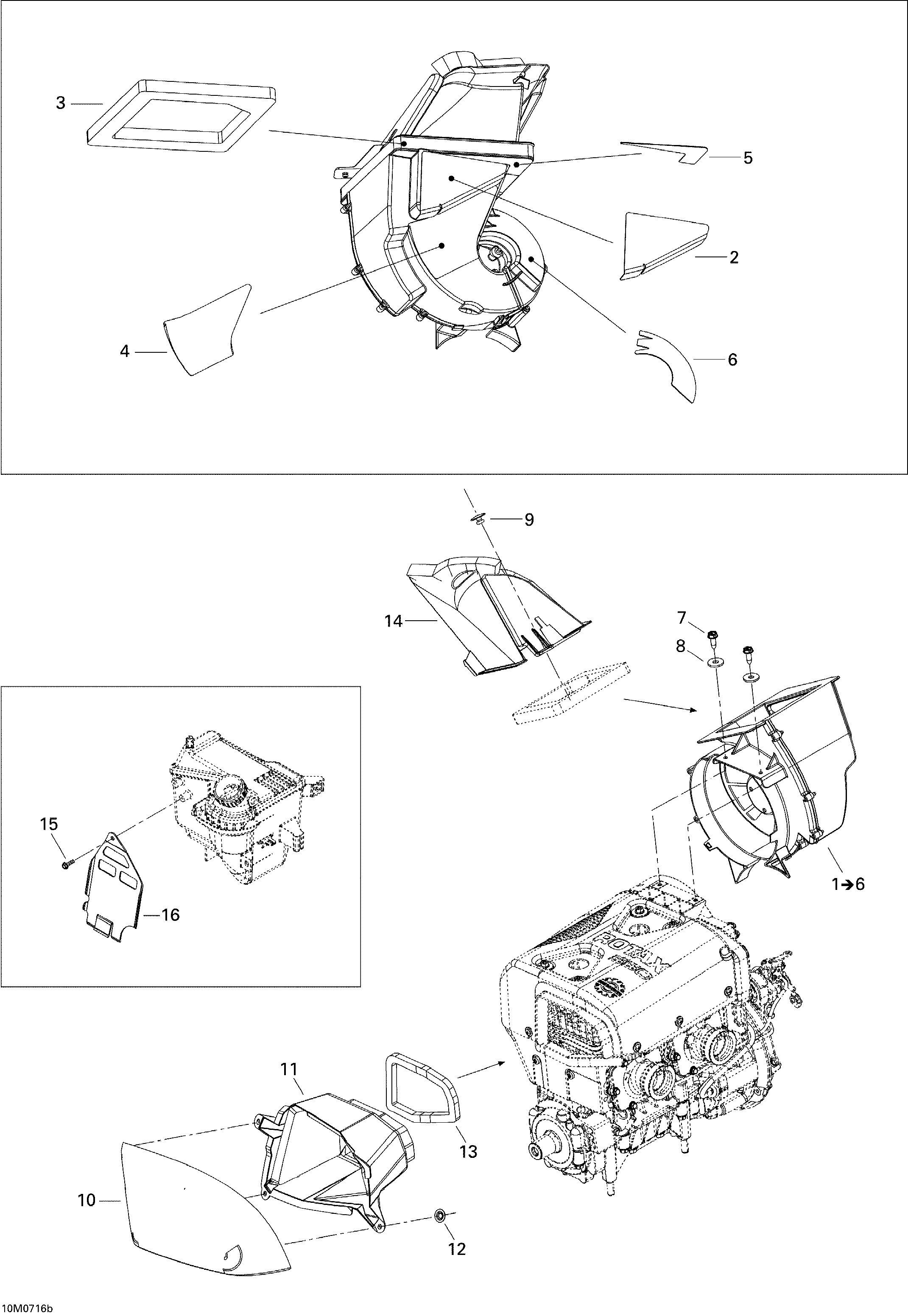

01- Cooling System (550F) для BRP Ski-Doo Freestyle Session 550F - 2007
-
№АртикулНазвание
-
1509000356 Inlet Duct Ass'y. Includes 1 to 6Inlet Duct Ass'y. Includes 1 to 6
-
2509000400 Reflective SheetReflective Sheet
-
3509000396 Jonction FoamJonction Foam
-
4509000411 Reflective SheetReflective Sheet
-
5509000419 Reflective SheetReflective Sheet
-
6509000420 Reflective SheetReflective Sheet
-
7250000222 Slotted Indented Hex Screw #10 X 5/8Slotted Indented Hex Screw #10 X 5/8
-
8391301600 WasherWasher
-
9293150103 Pop RivetPop Rivet
-
10509000362 Air Outlet DeflectorAir Outlet Deflector
-
11509000398 Air Outlet DuckAir Outlet Duck
-
12732610072 Push NutPush Nut
-
13508000450 Engine FoamEngine Foam
-
14509000378 Air Chamber Ass'yAir Chamber Ass'y
-
15241151640 Hex Flanged Screw K50 X 16Hex Flanged Screw K50 X 16
-
16509000257 DeflectorDeflector
