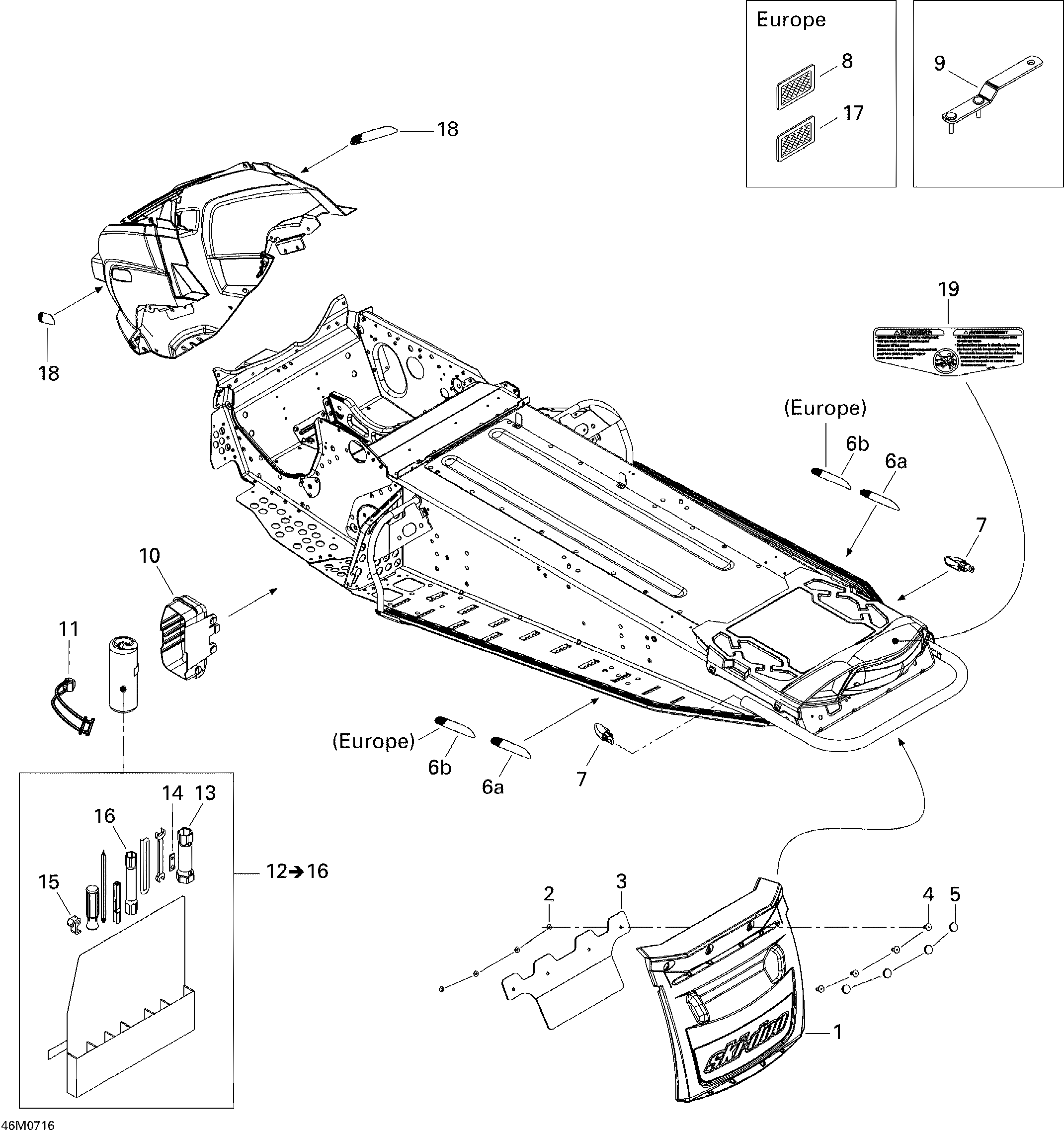

09- Utilities для BRP Ski-Doo Freestyle Session 550F - 2007
-
№АртикулНазвание
-
1520000531 Snow GuardSnow Guard
-
2517225900 Flat WasherFlat Washer
-
3520000636 ReinforcementReinforcement
-
4293150087 Pop Rivet 3/16''Pop Rivet 3/16''
-
5277000203 Cap, BlackCap, Black
-
6a520000523 ReflectorReflector
-
6b520000525 Reflector. EuropeReflector. Europe
-
7520000272 CapCap
-
8520000271 Reflector, Amber. EuropeReflector, Amber. Europe
-
9520000126 Adjustment WrenchAdjustment Wrench
-
10520000322 TrunkTrunk
-
11520000528 LatchLatch
-
12529000025 Tool Kit. Includes 12 to 16Tool Kit. Includes 12 to 16
-
13529014800 Socket Wrench 21/26 mmSocket Wrench 21/26 mm
-
14529024400 Rope AdaptorRope Adaptor
-
15529019400 Starter GripStarter Grip
-
16295000175 Socket Wrench 16/18 mmSocket Wrench 16/18 mm
-
17415037900 Reflector, White. EuropeReflector, White. Europe
-
18520000525 ReflectorReflector
-
19516003034 Warning Label, Track SecurityWarning Label, Track Security
