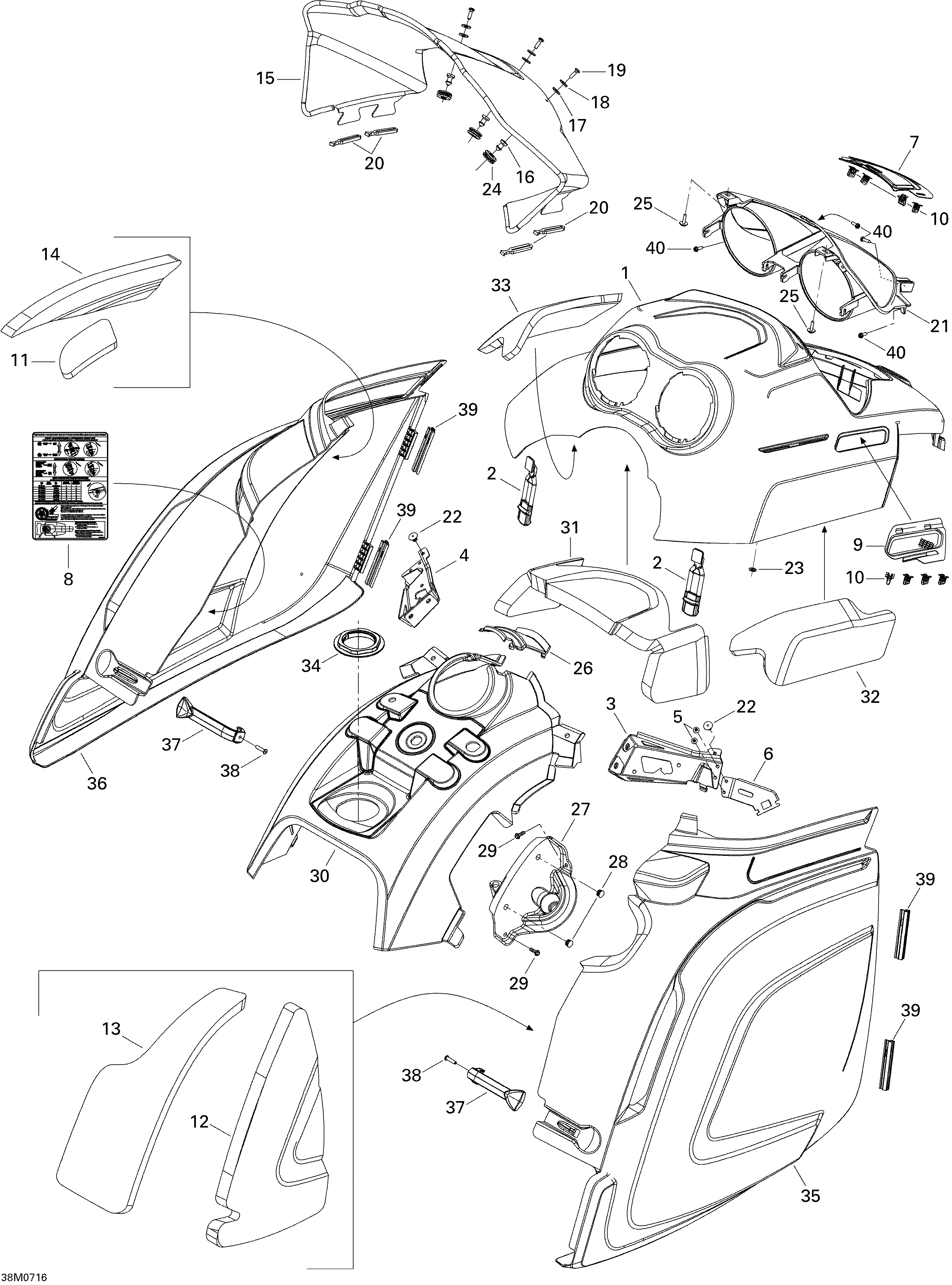

09- Hood 550F для BRP Ski-Doo Freestyle Session 550F - 2007
-
№АртикулНазвание
-
1517303649 Hood. 550FHood. 550F
-
2517303518 LatchLatch
-
3517303662 RH BracketRH Bracket
-
4517303663 LH BracketLH Bracket
-
5390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
6517303517 BracketBracket
-
7517303331 Center Hood GrillCenter Hood Grill
-
8517303594 Adjustment Suspension DecalAdjustment Suspension Decal
-
9517303586 RH Hood Grill. 550FRH Hood Grill. 550F
-
10517302785 Clip. 550FClip. 550F
-
12517303456 RH Panel Foam, FrontRH Panel Foam, Front
-
13517303457 RH Panel Foam, RearRH Panel Foam, Rear
-
15517303442 Low WindshieldLow Windshield
-
16517303439 KnobKnob
-
17250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
18250200025 Washer M5Washer M5
-
19250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
20570023800 Windshield LatchWindshield Latch
-
21517303583 Headlight MouldingHeadlight Moulding
-
22293150103 Pop RivetPop Rivet
-
23732610072 Push NutPush Nut
-
24517302841 GrommetGrommet
-
25250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
26517303458 Console CapConsole Cap
-
27517303482 RH ConsoleRH Console
-
28275500241 Cap, BlackCap, Black
-
29241151640 Hex Flanged Screw K50 X 16Hex Flanged Screw K50 X 16
-
30517303349 Center ConsoleCenter Console
-
31517303664 Hood FoamHood Foam
-
32517303486 RH Hood FoamRH Hood Foam
-
33517303487 LH Hood FoamLH Hood Foam
-
34517302575 Console NutConsole Nut
-
35517303644 RH PanelRH Panel
-
36517303540 LH Panel. 550FLH Panel. 550F
-
37517302448 Panel LatchPanel Latch
-
38390410100 Pop Rivet 3/16''Pop Rivet 3/16''
-
39517302823 Hinge LockHinge Lock
-
40250000068 Hex Tapping Screw #8 X 5/8''Hex Tapping Screw #8 X 5/8''
