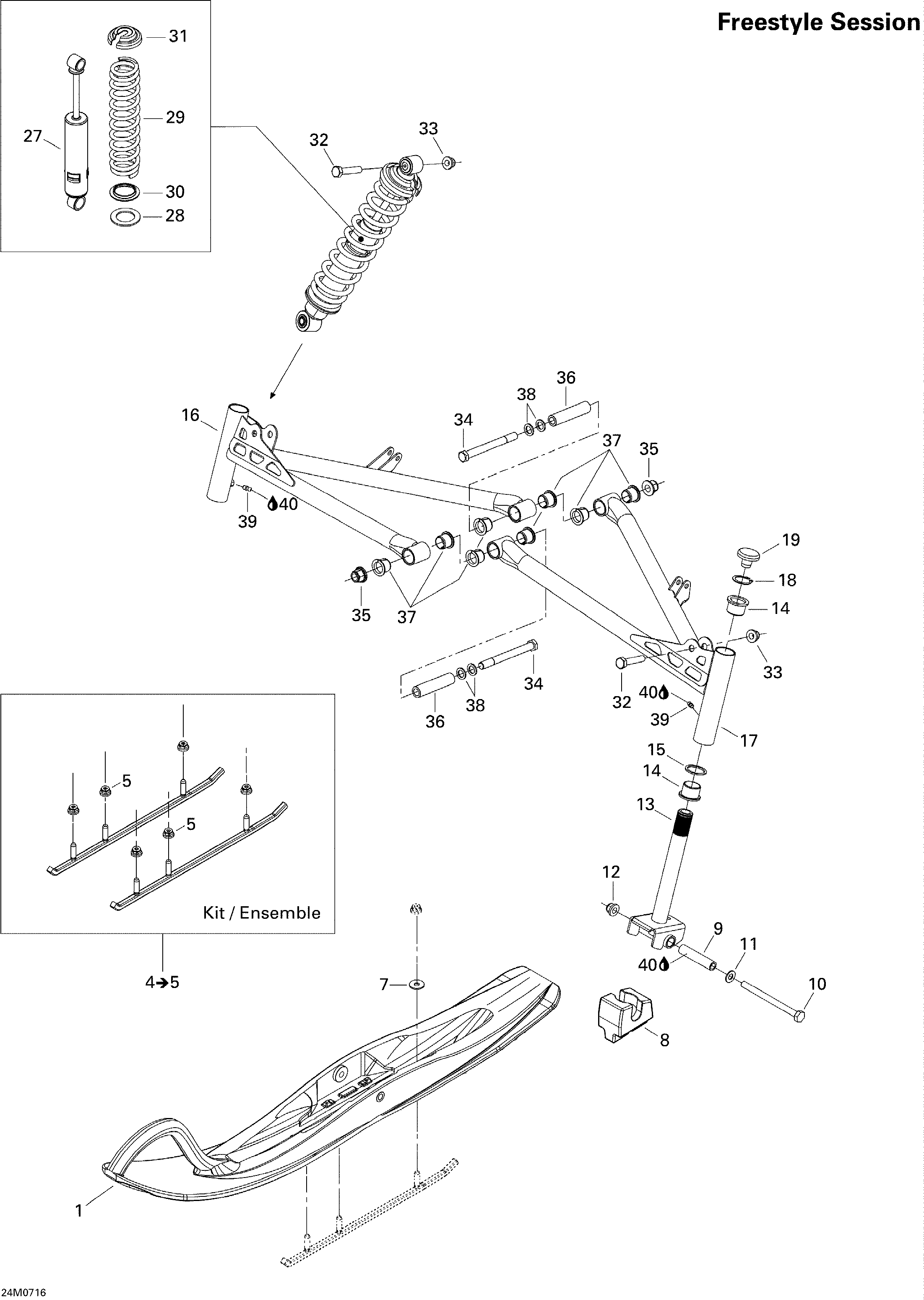

07- Front Suspension And Ski 550F для BRP Ski-Doo Freestyle Session 550F - 2007
-
№АртикулНазвание
-
1505072019 Small ''Blow Mold'' SkiSmall ''Blow Mold'' Ski
-
4860512100 Carbide Runner Kit. Includes 4 to 5Carbide Runner Kit. Includes 4 to 5
-
5233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
7234082410 Flat Washer 8 mmFlat Washer 8 mm
-
8505070978 Ski StopperSki Stopper
-
9506133300 SpacerSpacer
-
10230003044 Hex Screw M10 X 130Hex Screw M10 X 130
-
11224002251 Flat WasherFlat Washer
-
12232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
13505072001 Ski LegSki Leg
-
14505070003 CushionCushion
-
15505070004 WasherWasher
-
16505071739 RH Lower Arm. 550FRH Lower Arm. 550F
-
17505071740 LH Lower Arm. 550FLH Lower Arm. 550F
-
18371910400 CirclipCirclip
-
19572091300 CapCap
-
27505071487 Front Shock. 550FFront Shock. 550F
-
28503184400 WasherWasher
-
29505072026 Spring. 550FSpring. 550F
-
30505071954 Spring GuideSpring Guide
-
31503140600 Spring StopperSpring Stopper
-
32207005544 Hex Screw M10 X 55Hex Screw M10 X 55
-
33233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
34230022044 Hex Screw M12 X 120Hex Screw M12 X 120
-
35233221414 Hex Flanged Elastic Nut M12Hex Flanged Elastic Nut M12
-
36505071366 BushingBushing
-
37505072094 BushingBushing
-
38503189276 WasherWasher
-
39408200700 Grease FittingGrease Fitting
-
40219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
