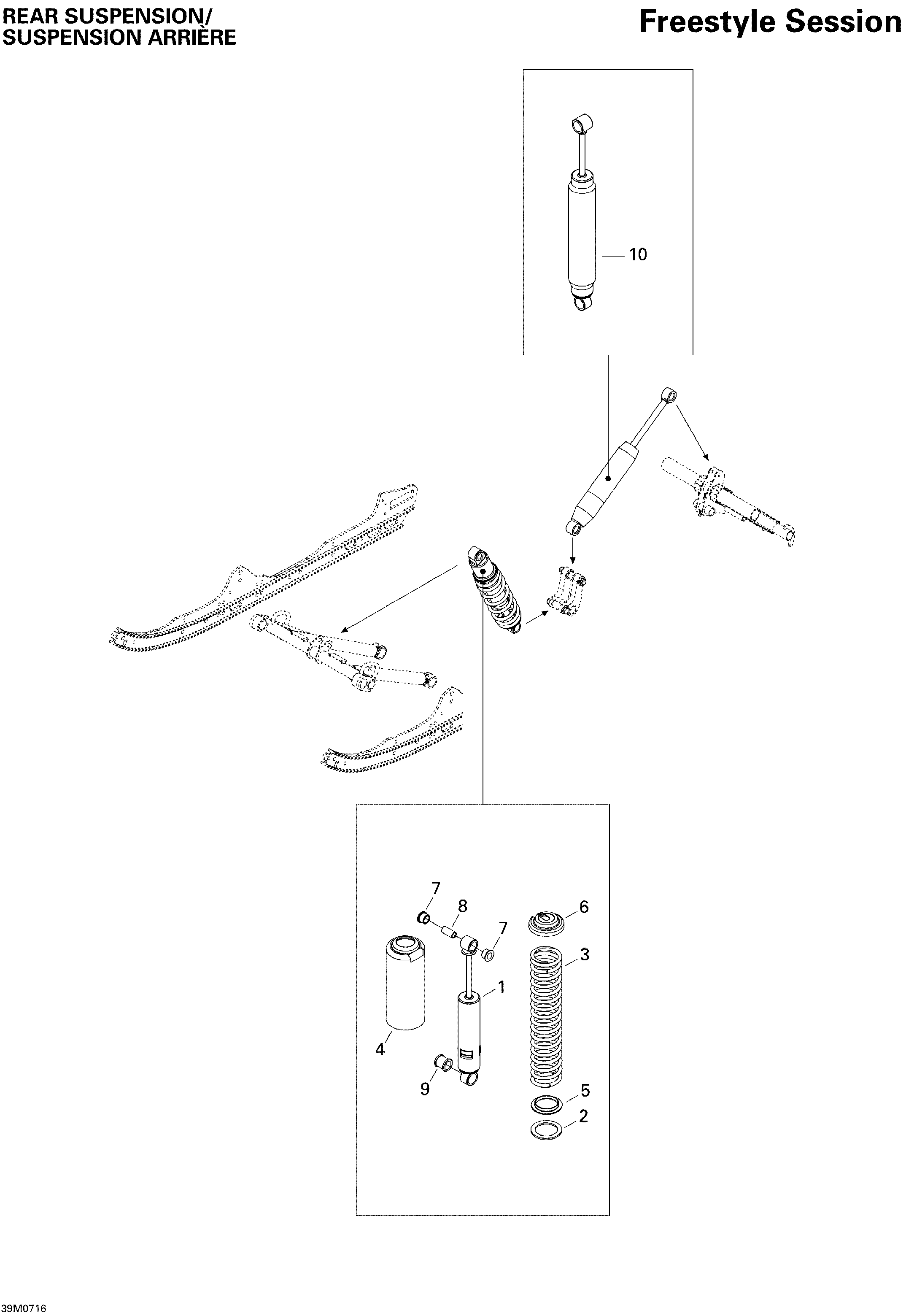

08- Rear Suspension Shocks 550F для BRP Ski-Doo Freestyle Session 550F - 2007
-
№АртикулНазвание
-
1503191423 Center Shock. 550FCenter Shock. 550F
-
2503184400 WasherWasher
-
3503191356 Spring. 550F & 300F EURSpring. 550F & 300F EUR
-
4503191126 ProtectorProtector
-
5505071954 Spring GuideSpring Guide
-
6503140600 Spring StopperSpring Stopper
-
7503189117 CushionCushion
-
8503189282 BushingBushing
-
9503189271 CushionCushion
-
10503191486 Rear Shock. 550FRear Shock. 550F
