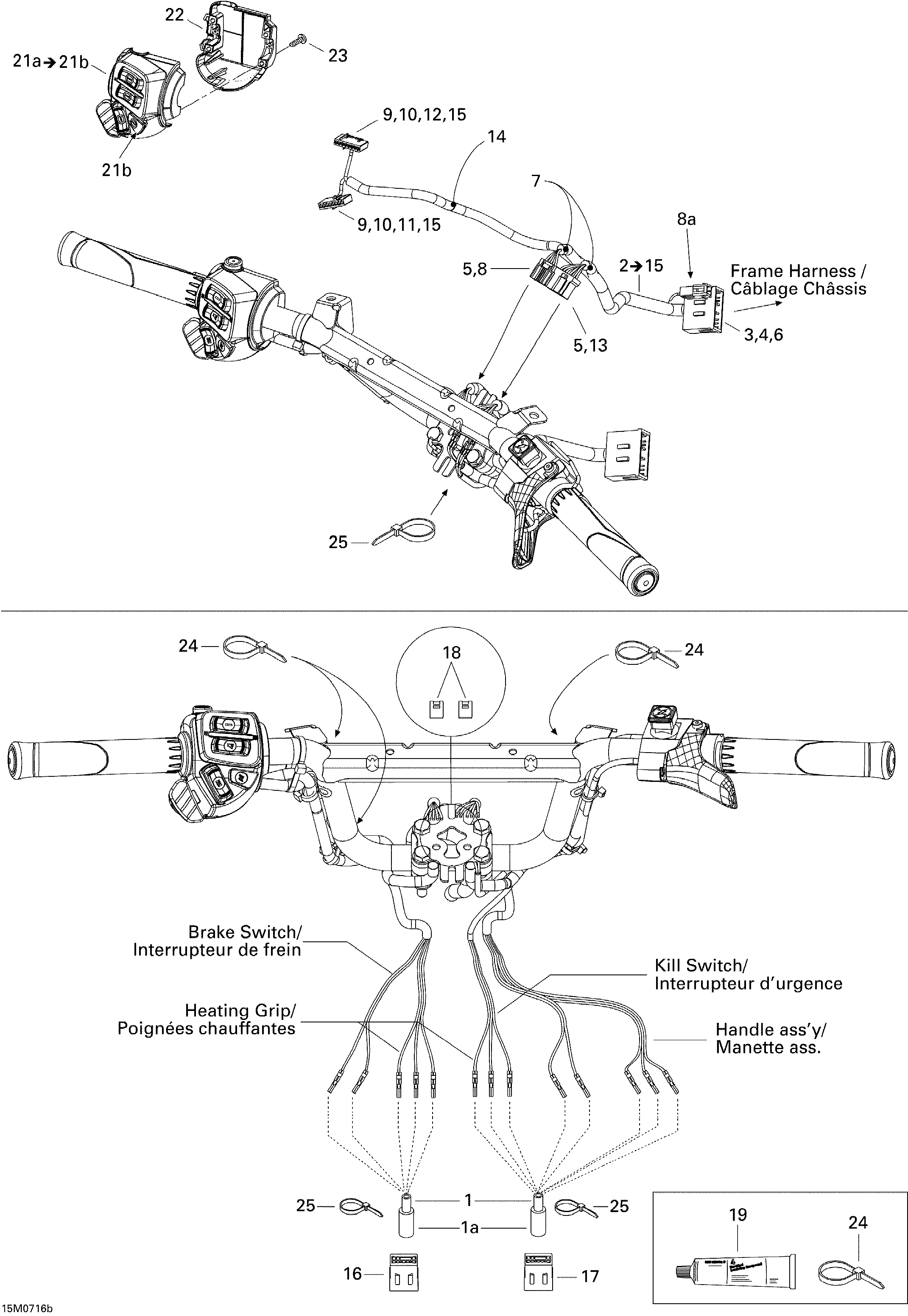

10- Steering Wiring Harness 550F для BRP Ski-Doo Freestyle Session 550F - 2007
-
№АртикулНазвание
-
1409902200 Tubing 25 mmTubing 25 mm
-
1a515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
2515176481 Wiring Harness. Includes 2 to 15Wiring Harness. Includes 2 to 15
-
3515175232 Male TerminalMale Terminal
-
4515175273 Male TerminalMale Terminal
-
5515175231 Female TerminalFemale Terminal
-
6515175352 Male Terminal Housing, 13 CircuitsMale Terminal Housing, 13 Circuits
-
7415079900 Tubing 10 mmTubing 10 mm
-
8515175543 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
8a515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
9515175808 Female TerminalFemale Terminal
-
10515175809 Femelle Lock, 8 CircuitsFemelle Lock, 8 Circuits
-
11515175807 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
12515175810 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
13515175819 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
14515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
15515175941 Female TerminalFemale Terminal
-
16515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
17515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
18515175944 Housing SupportHousing Support
-
19293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
21a515176187 LH Switch Housing. Includes 21a to 21bLH Switch Housing. Includes 21a to 21b
-
21b515176088 Start/RER ButtonStart/RER Button
-
22515175926 Housing Switch PlateHousing Switch Plate
-
23250000263 Torx Screw #8-18Torx Screw #8-18
-
24293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
25293750002 Tie-Rap 130 mmTie-Rap 130 mm
