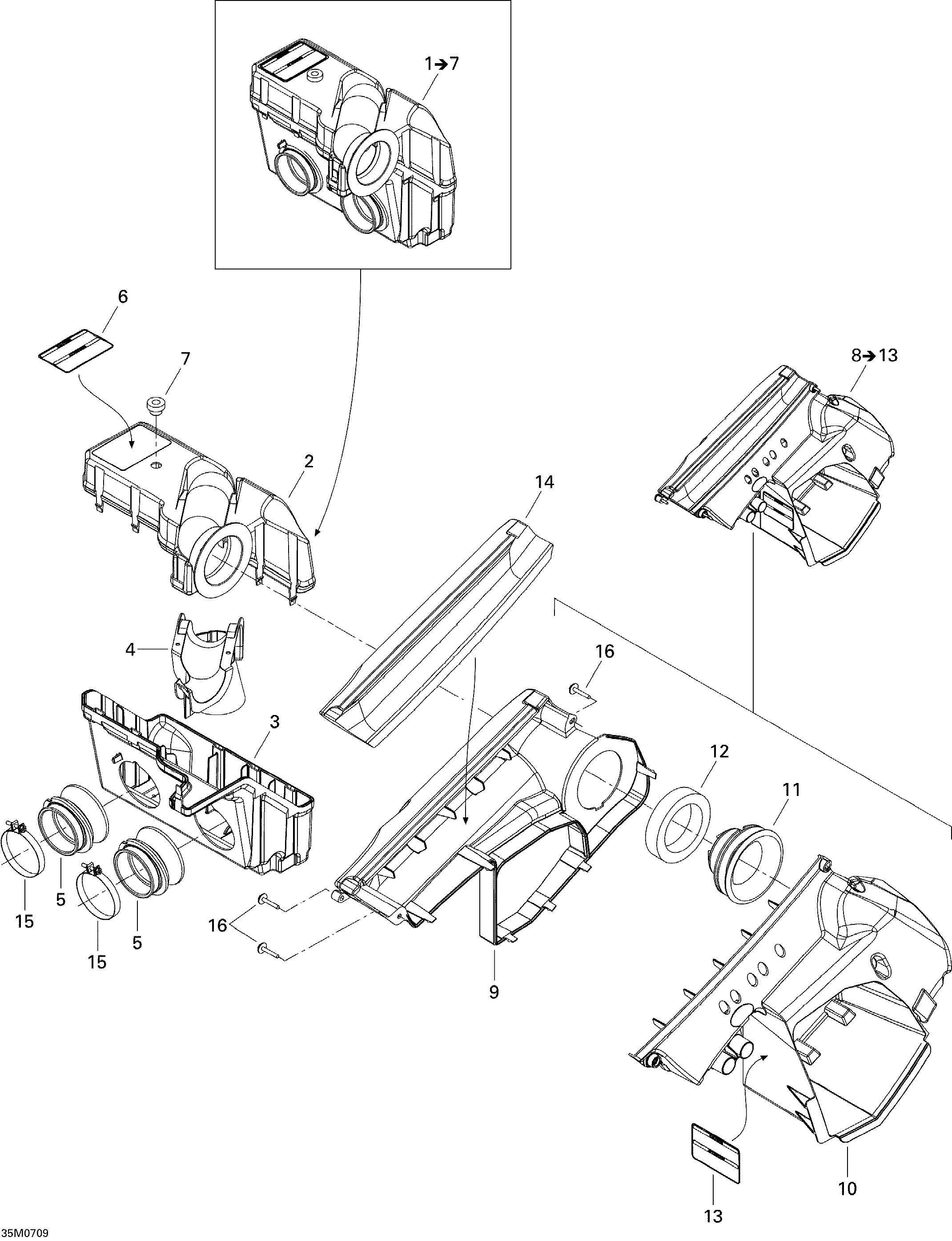

02- Air Intake System для BRP Ski-Doo GSX 550F - 2007
-
№АртикулНазвание
-
1508000383 Primary Chamber Ass'y. Includes 1 to 7Primary Chamber Ass'y. Includes 1 to 7
-
6516002715 Caution Label, Air IntakeCaution Label, Air Intake
-
7513032908 GrommetGrommet
-
8508000376 Secondary Chamber Ass'y. Includes 8 to 13Secondary Chamber Ass'y. Includes 8 to 13
-
11508000240 GuideGuide
-
12508000199 Outer FoamOuter Foam
-
13516002715 Caution Label, Air IntakeCaution Label, Air Intake
-
14508000394 Air FilterAir Filter
-
15508000344 Gemi ClampGemi Clamp
-
16250000101 Plastite Screw Type K-40, M4 X 25Plastite Screw Type K-40, M4 X 25
