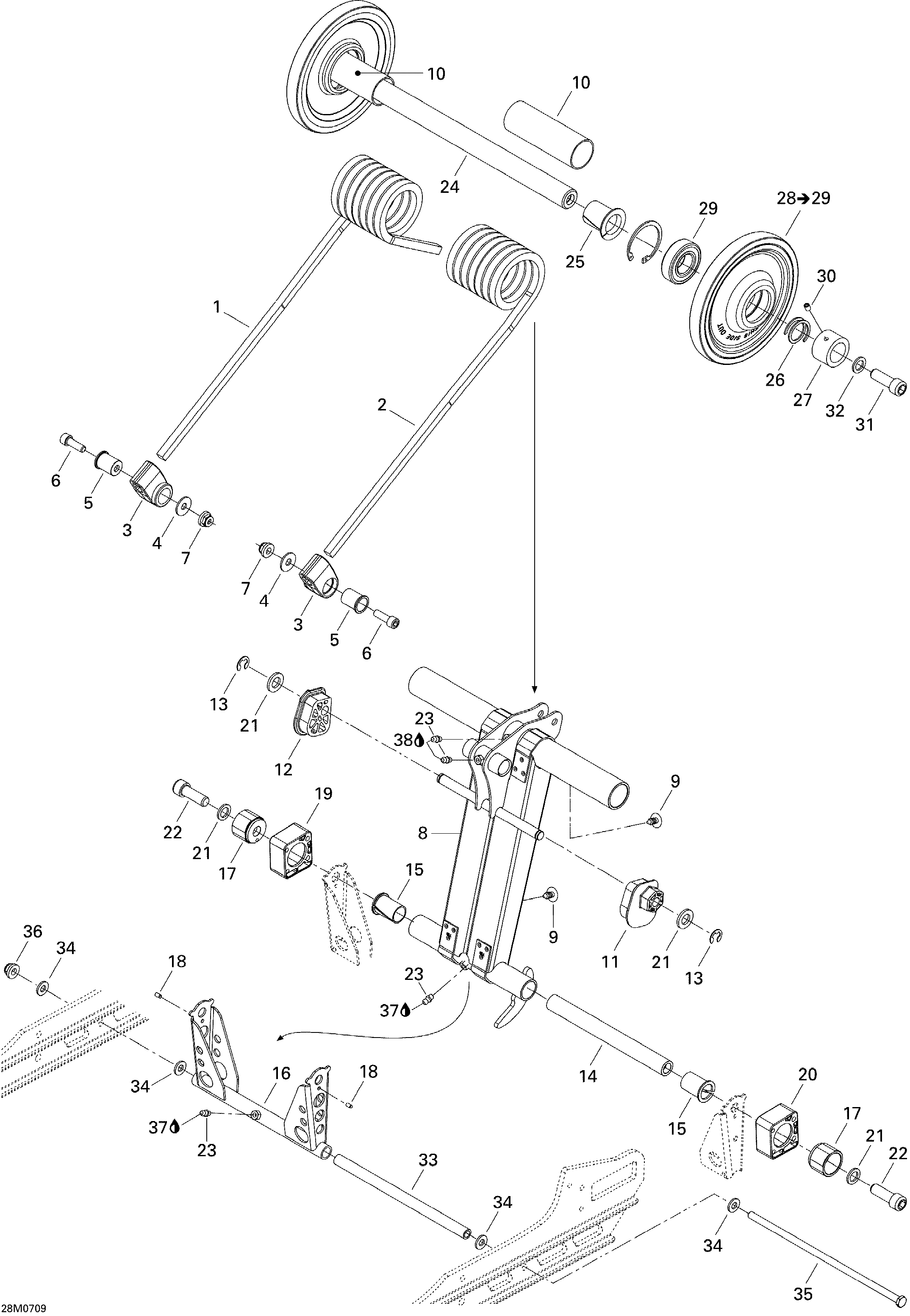

08- Rear Arm для BRP Ski-Doo GSX 550F - 2007
-
№АртикулНазвание
-
1503190777 RH Spring, SquareRH Spring, Square
-
2503190779 LH Spring, SquareLH Spring, Square
-
3503191539 Spring SupportSpring Support
-
4234082410 Flat Washer M8Flat Washer M8
-
5503190754 Retainer CushionRetainer Cushion
-
6205082544 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
7233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
8503191119 Rear ArmRear Arm
-
9414644300 DartDart
-
10503191041 Plastic BushingPlastic Bushing
-
11503190023 LH Cam AdjusterLH Cam Adjuster
-
12503190022 RH Cam AdjusterRH Cam Adjuster
-
13293370013 E-CirclipE-Circlip
-
14503190687 Lower ShaftLower Shaft
-
15503189286 CushionCushion
-
16503191091 Pivot ArmPivot Arm
-
17503189488 Block GuideBlock Guide
-
18250400005 Dowel Pin 4 X 8 mmDowel Pin 4 X 8 mm
-
19503190622 RH Block, 4 PositionsRH Block, 4 Positions
-
20503190623 LH Block, 4 PositionsLH Block, 4 Positions
-
21503189148 WasherWasher
-
22205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
23408200700 Grease FittingGrease Fitting
-
24503191360 Upper ShaftUpper Shaft
-
25503190619 CushionCushion
-
26503189146 Axle SpringAxle Spring
-
27503190570 Retainer RingRetainer Ring
-
28503191046 Wheel 155 Ass'y. Includes 28 to 29Wheel 155 Ass'y. Includes 28 to 29
-
29503190795 Ball BearingBall Bearing
-
30206260844 Socket Set Screw M6 X 8Socket Set Screw M6 X 8
-
31205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
32503189276 WasherWasher
-
33503189156 Pivot Arm AxlePivot Arm Axle
-
34503189157 WasherWasher
-
35732601198 Long Bolt M8Long Bolt M8
-
36233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
37219700417 Synthetic Grease, 400 GSynthetic Grease, 400 G
