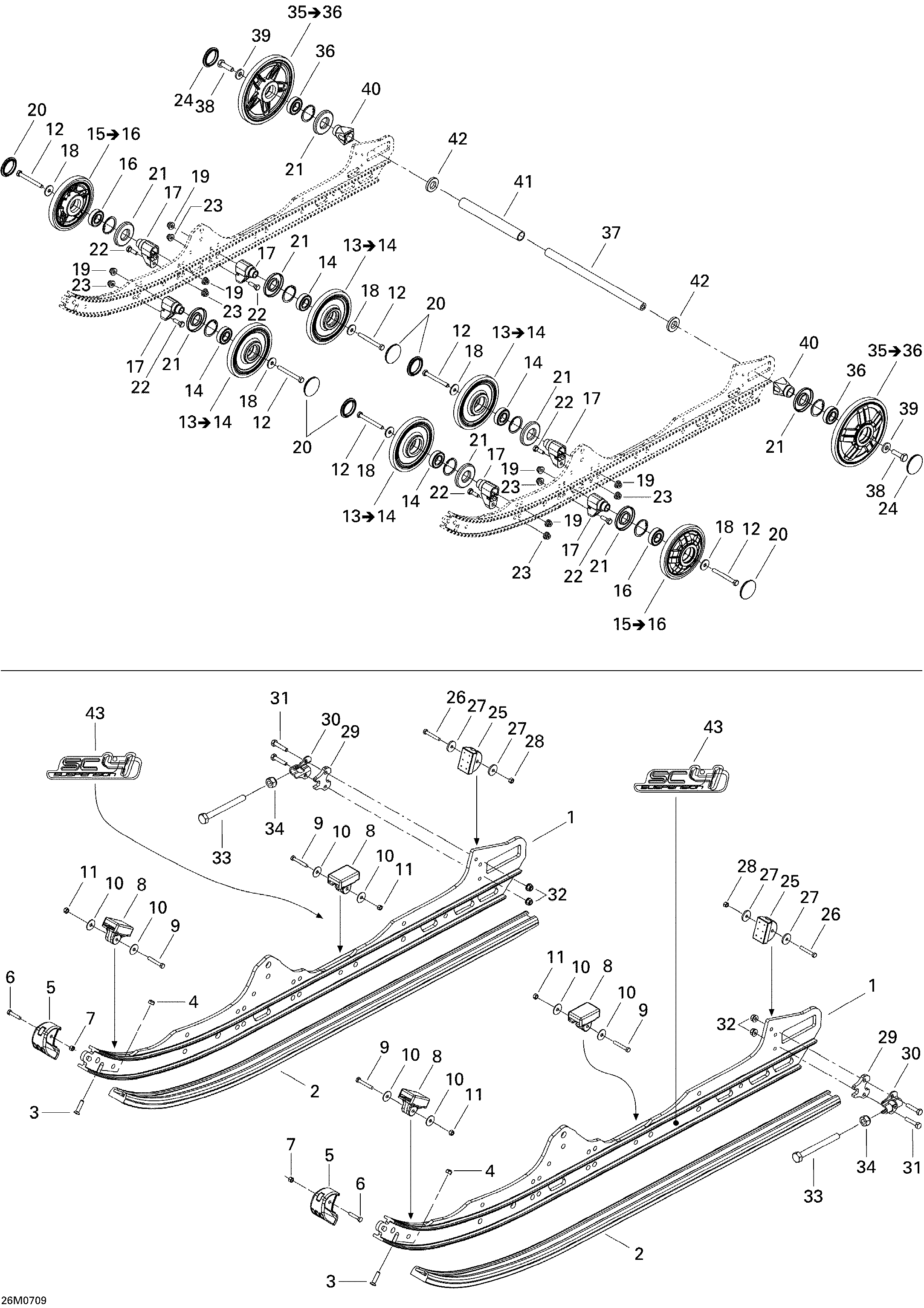

08- Rear Suspension для BRP Ski-Doo GSX 550F - 2007
-
№АртикулНазвание
-
1503191224 Runner 121''Runner 121''
-
2503190573 Slider ShoeSlider Shoe
-
3208562560 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503191137 Runner ProtectorRunner Protector
-
6207652544 Hex Flange Screw M5 X 25Hex Flange Screw M5 X 25
-
7233251414 Hex Flanged Elastic Nut M5Hex Flanged Elastic Nut M5
-
8503190576 Rubber StopperRubber Stopper
-
9207053044 Hex Screw M5 X 30Hex Screw M5 X 30
-
10250200016 WasherWasher
-
11232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
12207087544 Hex Screw M8 X 75Hex Screw M8 X 75
-
13503191316 Wheel 141 Ass'y. Includes 13 to 14Wheel 141 Ass'y. Includes 13 to 14
-
14503190396 Ball BearingBall Bearing
-
15503191313 Wheel 141 With Pattern Ass'y, Full Moon. Includes 15 to 16Wheel 141 With Pattern Ass'y, Full Moon. Includes 15 to 16
-
16503190396 Ball BearingBall Bearing
-
17503190580 SupportSupport
-
18211200041 WasherWasher
-
19233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
20570063600 Wheel CapWheel Cap
-
21503190434 Labyrinth SealLabyrinth Seal
-
22207182544 Hex Screw M8 X 25Hex Screw M8 X 25
-
23233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
24570063600 Wheel CapWheel Cap
-
25503189608 Rubber StopperRubber Stopper
-
26207053044 Hex Screw M5 X 30Hex Screw M5 X 30
-
27250200016 WasherWasher
-
28232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
29503190379 Tensioner SpacerTensioner Spacer
-
30503190380 TensionerTensioner
-
31207063044 Hex Screw M6 X 30Hex Screw M6 X 30
-
32233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
33230100044 Hex Screw M10 X 100Hex Screw M10 X 100
-
34233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
35503190752 Wheel 180, Full Moon. Includes 35 to 36Wheel 180, Full Moon. Includes 35 to 36
-
36503190396 Ball BearingBall Bearing
-
37503190429 Rear AxleRear Axle
-
38250000019 Hex Screw With NylonHex Screw With Nylon
-
39503190439 WasherWasher
-
40503190428 Rear Wheel SpacerRear Wheel Spacer
-
41503191108 SpacerSpacer
-
42503190432 WasherWasher
-
43516002615 SC4 DecalSC4 Decal
