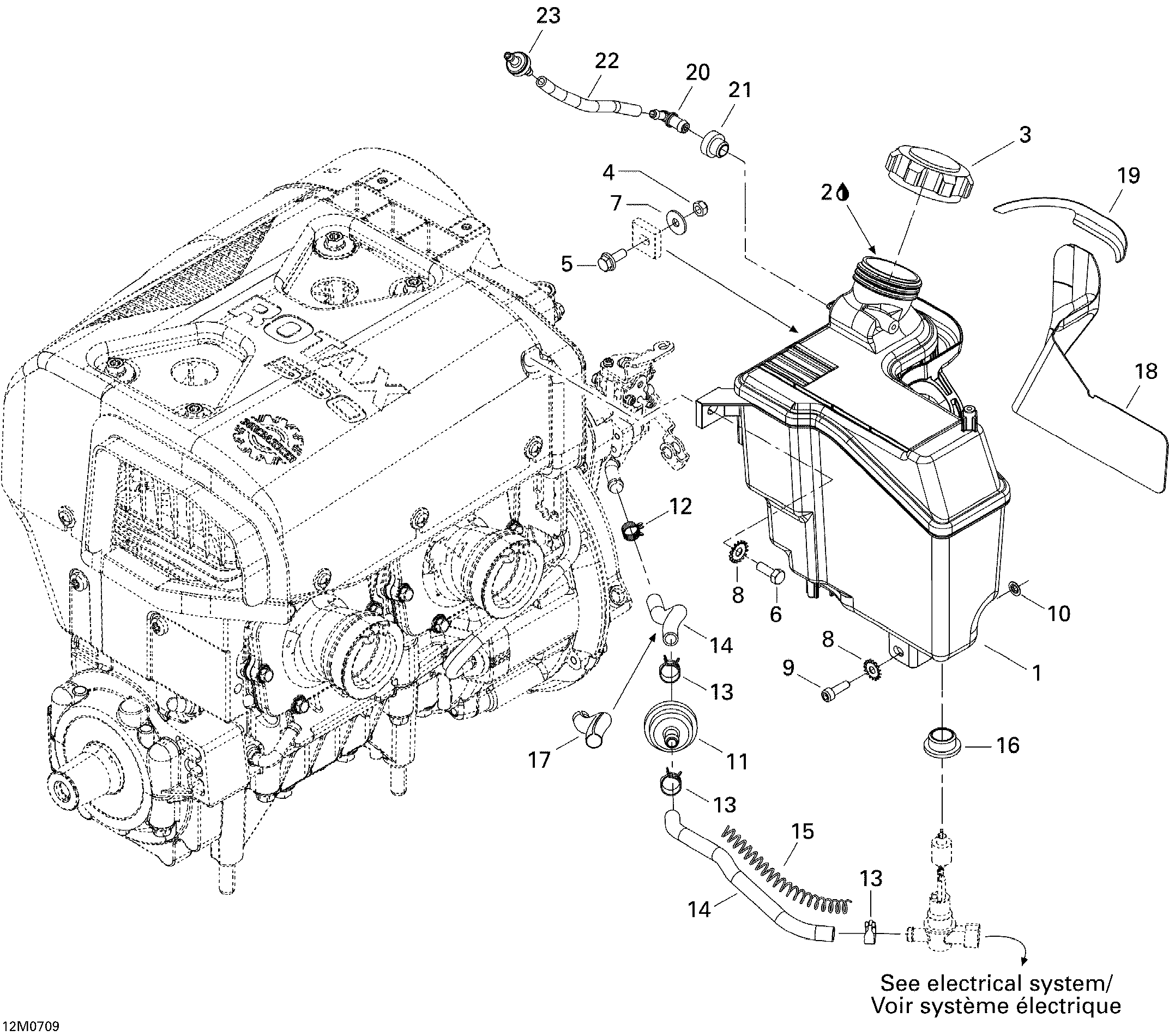

02- Oil System для BRP Ski-Doo GSX 550F - 2007
-
№АртикулНазвание
-
1519000073 Injection Oil TankInjection Oil Tank
-
2413802900 Injection Oil, 12 X 1 LiterInjection Oil, 12 X 1 Liter
-
2413803000 Injection Oil, 3 X 4 LitersInjection Oil, 3 X 4 Liters
-
2413803200 Injection Oil, 205 LitersInjection Oil, 205 Liters
-
3519000033 CapCap
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5207661644 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
6207161844 Hex Screw M6 X 18Hex Screw M6 X 18
-
7391302000 Flat WasherFlat Washer
-
8250200041 Serrated Lock Washer 6 mmSerrated Lock Washer 6 mm
-
9250000081 Socket Head Screw M6 X 25Socket Head Screw M6 X 25
-
10732610072 Push NutPush Nut
-
11414536500 FilterFilter
-
12414420700 Universal Spring Clamp, 3/8''Universal Spring Clamp, 3/8''
-
13414415200 Spring ClampSpring Clamp
-
14415080700 LineLine
-
15519000125 SpringSpring
-
16570023000 Insulating RingInsulating Ring
-
17415079900 Tubing, 10 mmTubing, 10 mm
-
18519000054 Reflective SheetReflective Sheet
-
19519000072 Reflective SheetReflective Sheet
-
20414580700 Elbow Male ConnectorElbow Male Connector
-
21513032908 GrommetGrommet
-
22415080200 LineLine
-
23275500398 Check ValveCheck Valve
