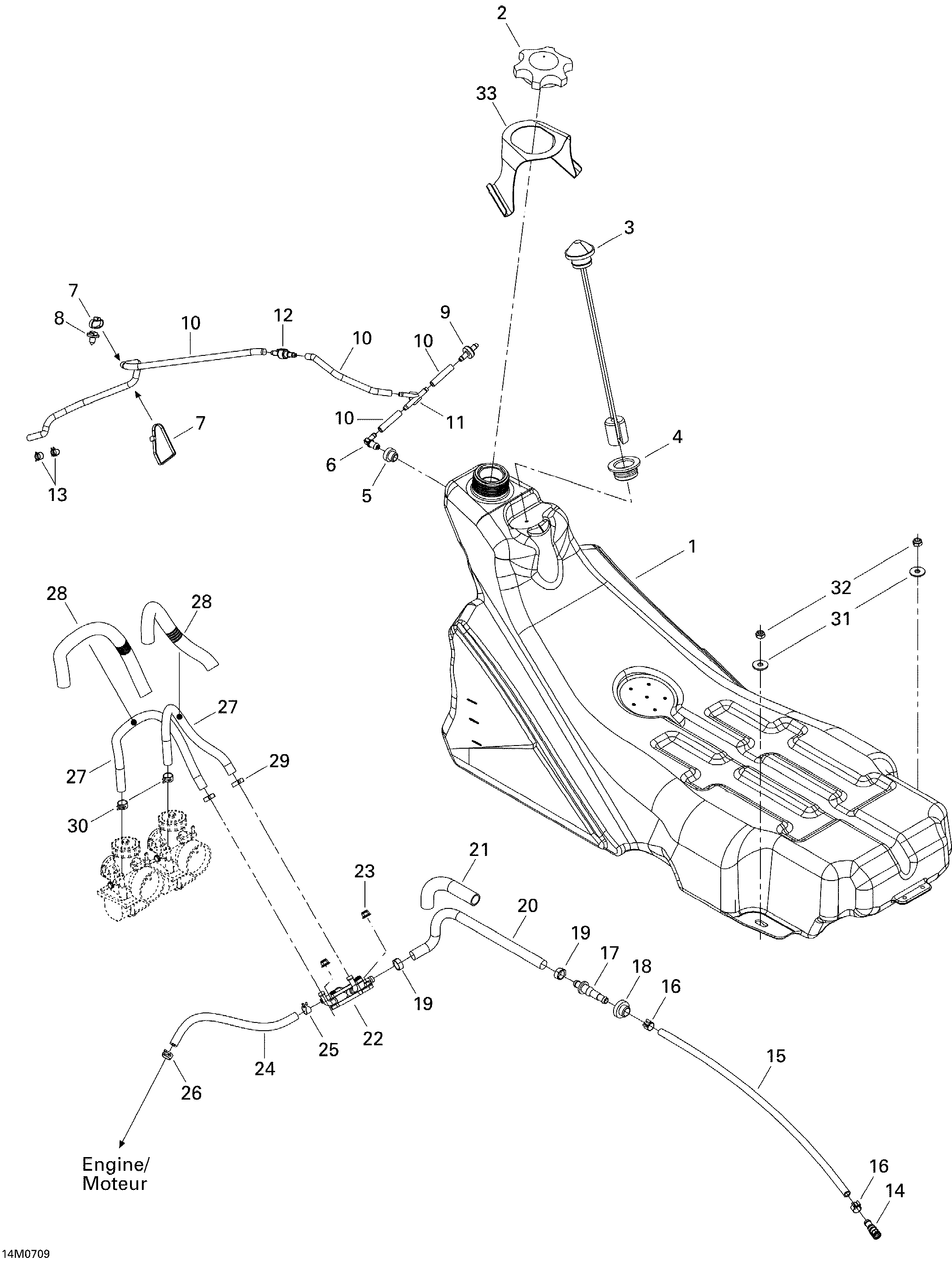

02- Fuel System для BRP Ski-Doo GSX 550F - 2007
-
№АртикулНазвание
-
1513033171 Fuel TankFuel Tank
-
2513033025 CapCap
-
3513033092 Fuel GaugeFuel Gauge
-
4293720058 GrommetGrommet
-
5513032908 GrommetGrommet
-
6414580700 Elbow Male ConnectorElbow Male Connector
-
7414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
8293730018 Mount DartMount Dart
-
9275500398 Check ValveCheck Valve
-
10415080200 Polyurethane HosePolyurethane Hose
-
11293710059 Y FittingY Fitting
-
12275500505 Check ValveCheck Valve
-
13414554800 Spring ClampSpring Clamp
-
14414872100 Fuel FilterFuel Filter
-
15513033070 HoseHose
-
16513033010 Norma Spring ClampNorma Spring Clamp
-
17414872700 Male ConnectorMale Connector
-
18570273900 GrommetGrommet
-
19293650053 Crimp ClampCrimp Clamp
-
20513033027 HoseHose
-
21415080000 Tubing 16 mmTubing 16 mm
-
22403901813 Fuel PumpFuel Pump
-
23233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
24513033111 Formed HoseFormed Hose
-
25414415200 Universal Spring ClampUniversal Spring Clamp
-
26513033029 Spring ClampSpring Clamp
-
27513033022 Hose 8 mm, MeterHose 8 mm, Meter
-
28415080000 Tubing 16 mmTubing 16 mm
-
29293650047 Oetiker ClampOetiker Clamp
-
30513033029 Spring ClampSpring Clamp
-
31234082410 Flat Washer 8 mmFlat Washer 8 mm
-
32232581414 Hex Elastic Nut M8Hex Elastic Nut M8
-
33513033066 SupportSupport
