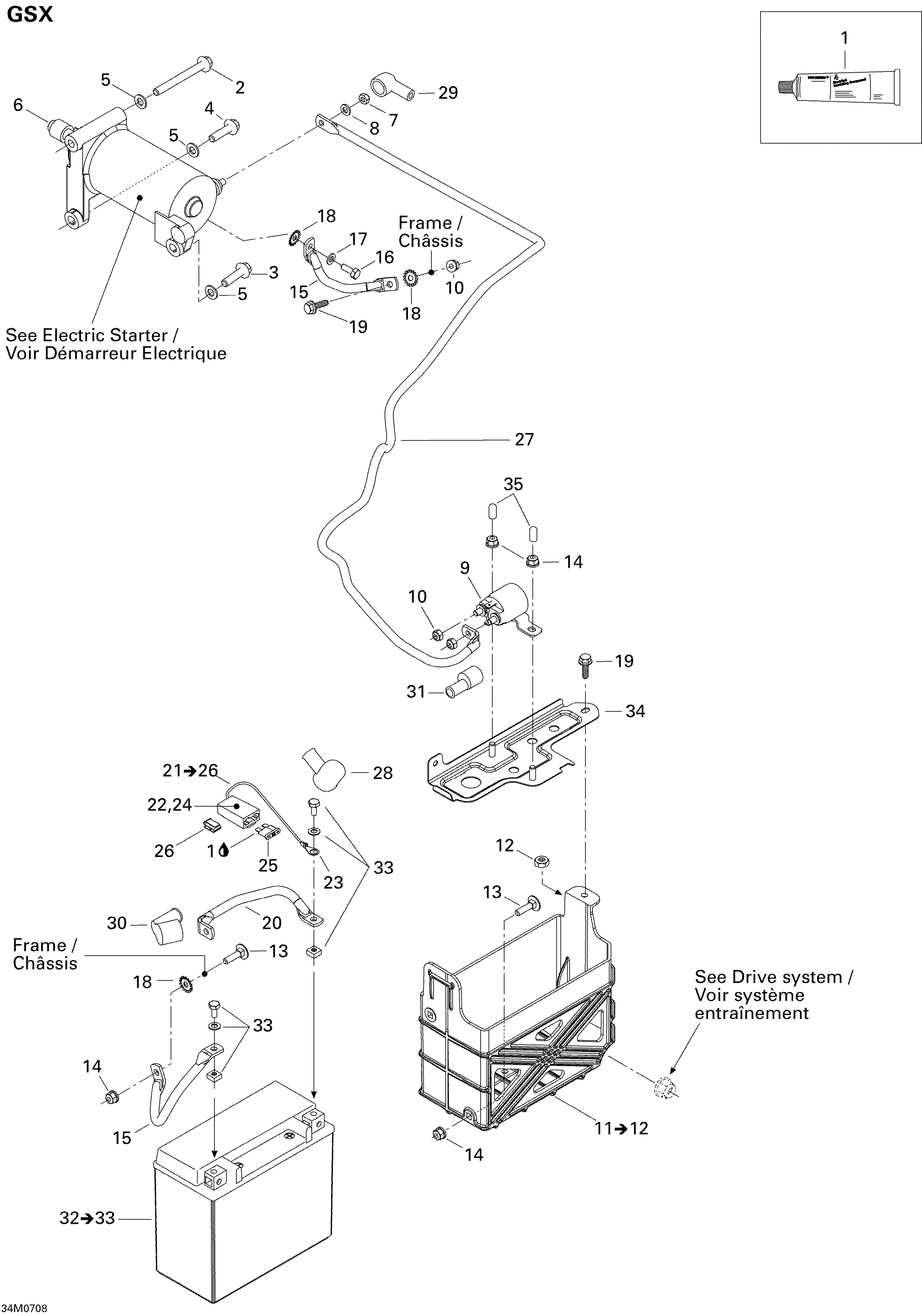

10- Battery And Starter для BRP Ski-Doo GSX 550F - 2007
-
№АртикулНазвание
-
1293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
2207588544 Hex Flanged Screw M8 X 85, scotch GripHex Flanged Screw M8 X 85, scotch Grip
-
3207583044 Hex Flanged Screw M8 X 30, Scotch GripHex Flanged Screw M8 X 30, Scotch Grip
-
4207583044 Hex Flanged Screw M8 X 30, Scotch GripHex Flanged Screw M8 X 30, Scotch Grip
-
5250200008 Flat Washer 8 mmFlat Washer 8 mm
-
6515176103 Electric StarterElectric Starter
-
7232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
8234061410 Flat Washer M6Flat Washer M6
-
9515176011 Starter RelayStarter Relay
-
10232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
11515176423 Battery Support. Includes 11 to 12Battery Support. Includes 11 to 12
-
12232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
13207762544 Carriage Bolt M6 X 25Carriage Bolt M6 X 25
-
14233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
15515175749 Ground WireGround Wire
-
16207361644 Hex Screw M6 X 16, Scotch GripHex Screw M6 X 16, Scotch Grip
-
17234061410 Flat Washer M6Flat Washer M6
-
18250200041 Serrated Lock Washer 6 mmSerrated Lock Washer 6 mm
-
19207662044 Hex. Flanged Screw M6 x 20Hex. Flanged Screw M6 x 20
-
20515175904 Battery WireBattery Wire
-
21515175489 Battery Fuse Wire. Includes 21 to 26Battery Fuse Wire. Includes 21 to 26
-
22409004200 Female TerminalFemale Terminal
-
23278000992 Ring TerminalRing Terminal
-
24409004000 Fuse HolderFuse Holder
-
25410917200 Fuse, 30 AmperesFuse, 30 Amperes
-
26409014200 ClipClip
-
27515175905 Battery WireBattery Wire
-
28570151000 Protection CapProtection Cap
-
29278001771 Protector CapProtector Cap
-
30570064200 Protection CapProtection Cap
-
31515175919 Protector CapProtector Cap
-
32410301203 Battery, 18 Amperes. Includes 32 to 33Battery, 18 Amperes. Includes 32 to 33
-
33295500849 Battery Fastener KitBattery Fastener Kit
-
34515175735 Battery StripBattery Strip
-
35515176141 CapCap
