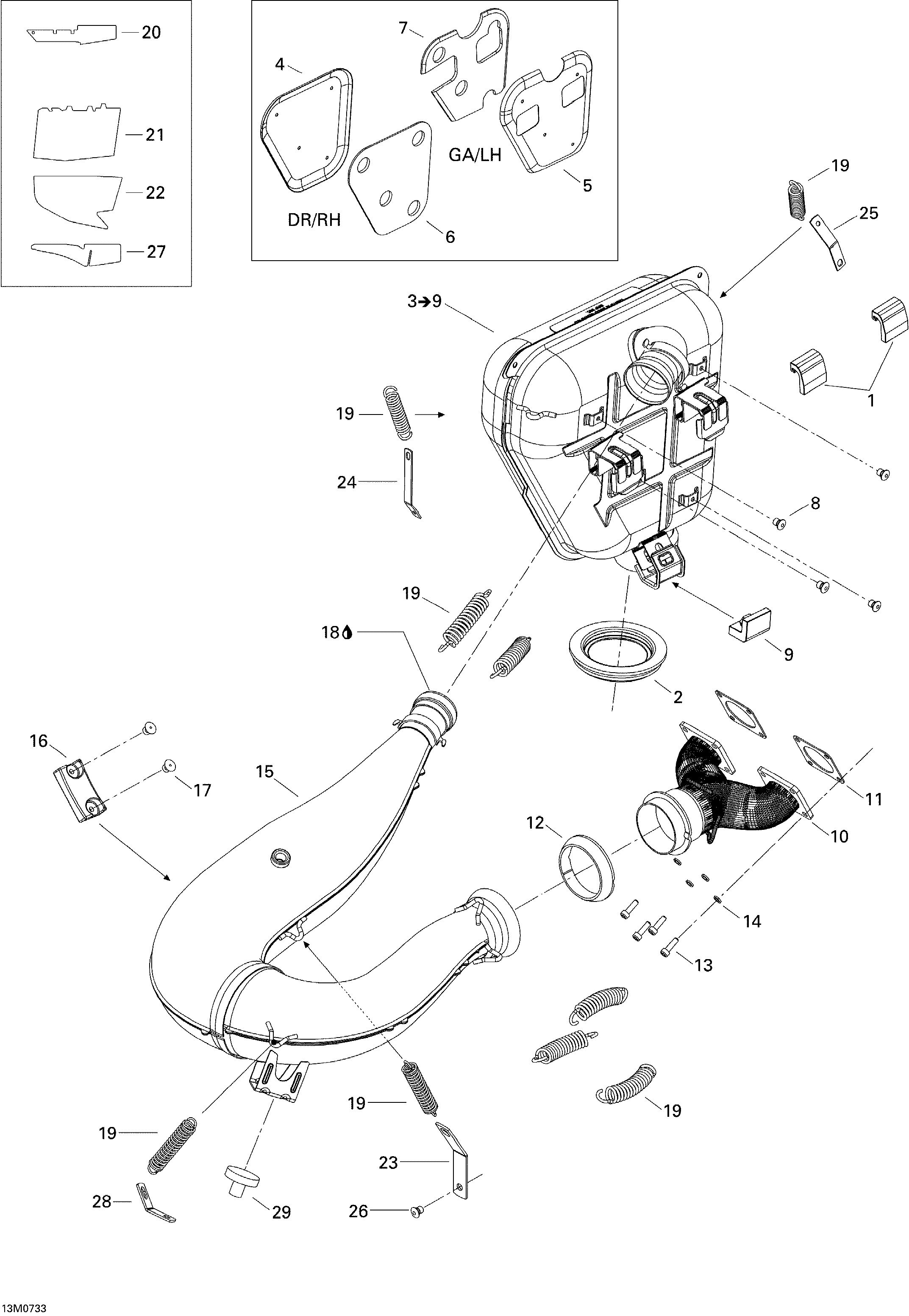

01- Exhaust System для BRP Ski-Doo MX Z 440X Racing - 2007
-
№АртикулНазвание
-
1514053372 Upper StopperUpper Stopper
-
2514054240 Exhaust GrommetExhaust Grommet
-
3514054206 Muffler Ass'yMuffler Ass'y
-
4514053139 RH Heat ShieldRH Heat Shield
-
5514053883 LH Heat ShieldLH Heat Shield
-
6514053141 RH Insulating WoolRH Insulating Wool
-
7514053884 LH Insulating WoolLH Insulating Wool
-
8390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
9514054223 Lower StopperLower Stopper
-
10420973557 ManifoldManifold
-
11420850552 GasketGasket
-
12514053487 Exhaust GasketExhaust Gasket
-
13514054047 Socket Screw M6 X 20, Scotch GripSocket Screw M6 X 20, Scotch Grip
-
14514053953 WasherWasher
-
15514054324 Calibrated TubeCalibrated Tube
-
16514053352 BumperBumper
-
17293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
18293800090 Sealant, Loctite, 80 mlSealant, Loctite, 80 ml
-
19415107100 SpringSpring
-
20514053702 Reflection SheetReflection Sheet
-
21514054350 Reflective SheetReflective Sheet
-
22514053562 Reflective SheetReflective Sheet
-
23514049700 Spring BracketSpring Bracket
-
24514053393 Spring BracketSpring Bracket
-
25514053436 Spring BracketSpring Bracket
-
26390909200 Avex RivetAvex Rivet
-
27514053673 Reflective SheetReflective Sheet
-
28514034000 Spring BracketSpring Bracket
-
29514053654 Rubber BumperRubber Bumper
