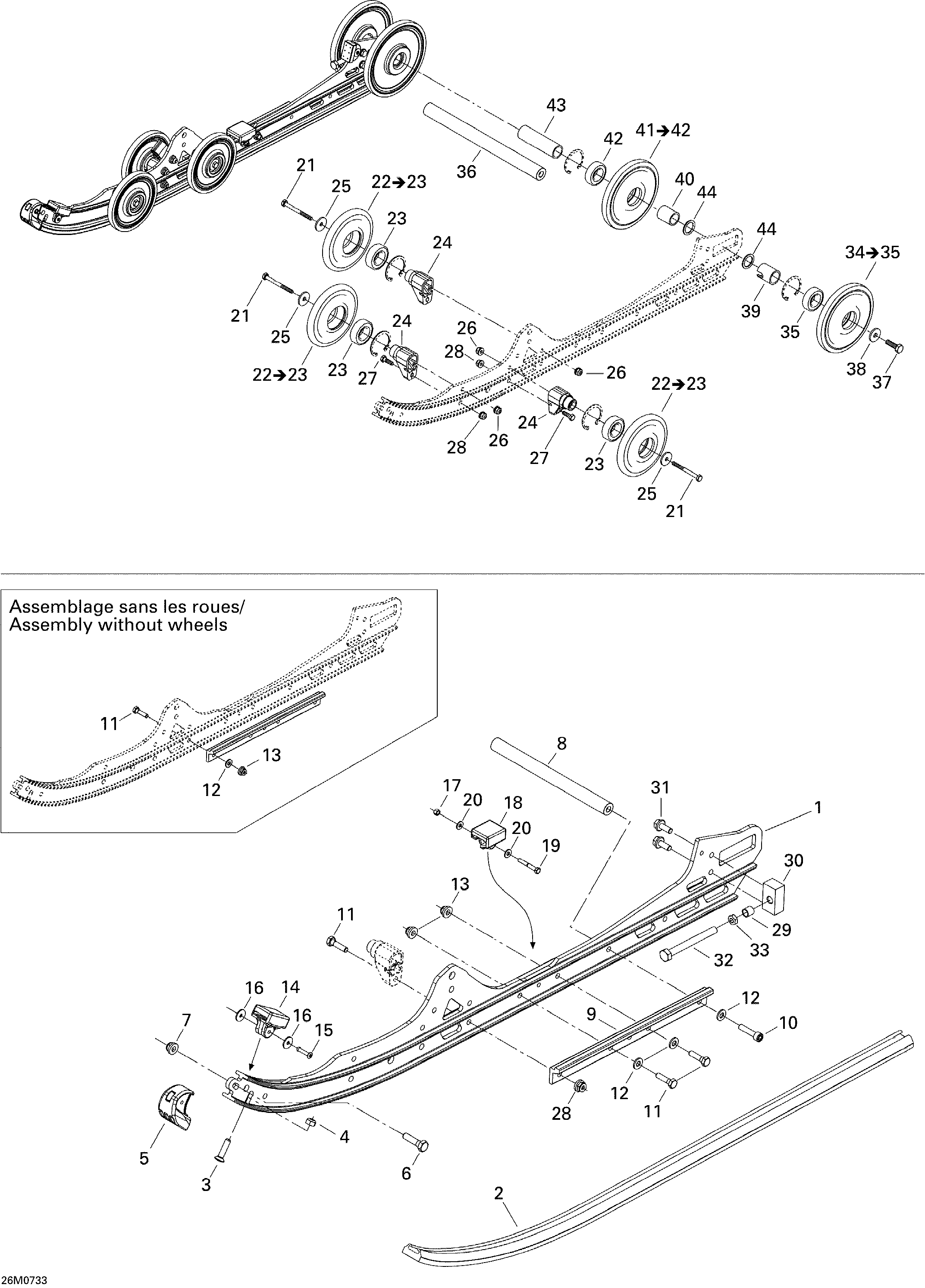

08- Rear Suspension для BRP Ski-Doo MX Z 440X Racing - 2007
-
№АртикулНазвание
-
1503191256 RunnerRunner
-
2503190629 Slider ShoeSlider Shoe
-
3208562560 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503191137 Runner ProtectorRunner Protector
-
6207652544 Hex Flange Screw M5 X 25Hex Flange Screw M5 X 25
-
7233251414 Hex Flanged Elastic Nut M5Hex Flanged Elastic Nut M5
-
8503151600 AxleAxle
-
9503190647 Rail ReinforcementRail Reinforcement
-
10205583544 Socket Head Screw M8 X 35, Scotch GripSocket Head Screw M8 X 35, Scotch Grip
-
11207083544 Hex Screw M8 X 35Hex Screw M8 X 35
-
12503189157 WasherWasher
-
13233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
14503190576 Rubber StopperRubber Stopper
-
15293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
16503191273 WasherWasher
-
17232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
18503190741 Rail StopperRail Stopper
-
19207053544 Hex Screw M5 X 35Hex Screw M5 X 35
-
20391301700 WasherWasher
-
21207087544 Hex Screw M8 X 75Hex Screw M8 X 75
-
22503191316 Wheel 141 Ass'y. Includes 22 to 23Wheel 141 Ass'y. Includes 22 to 23
-
23503190396 Ball BearingBall Bearing
-
24503190580 SupportSupport
-
25211200041 WasherWasher
-
26233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
27207182544 Hex Screw M8 X 25Hex Screw M8 X 25
-
28233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
29503168500 Tensioner SpacerTensioner Spacer
-
30503190827 TensionerTensioner
-
31207582044 Hex Flanged Screw M8 X 20, Scotch GripHex Flanged Screw M8 X 20, Scotch Grip
-
32230100044 Hex Screw M10 X 100Hex Screw M10 X 100
-
33232006414 Hex Nut M10Hex Nut M10
-
34503191491 Wheel 180. Includes 34 to 35Wheel 180. Includes 34 to 35
-
35503190795 Ball BearingBall Bearing
-
36503167900 Rear AxleRear Axle
-
37250000019 Hex Screw With NylonHex Screw With Nylon
-
38503183300 WasherWasher
-
39503189809 Outer SpacerOuter Spacer
-
40503182900 Inner SpacerInner Spacer
-
41503191491 Wheel 180. Includes 41 to 42Wheel 180. Includes 41 to 42
-
42503190795 Ball BearingBall Bearing
-
43503156000 Center SpacerCenter Spacer
-
44503180400 WasherWasher
