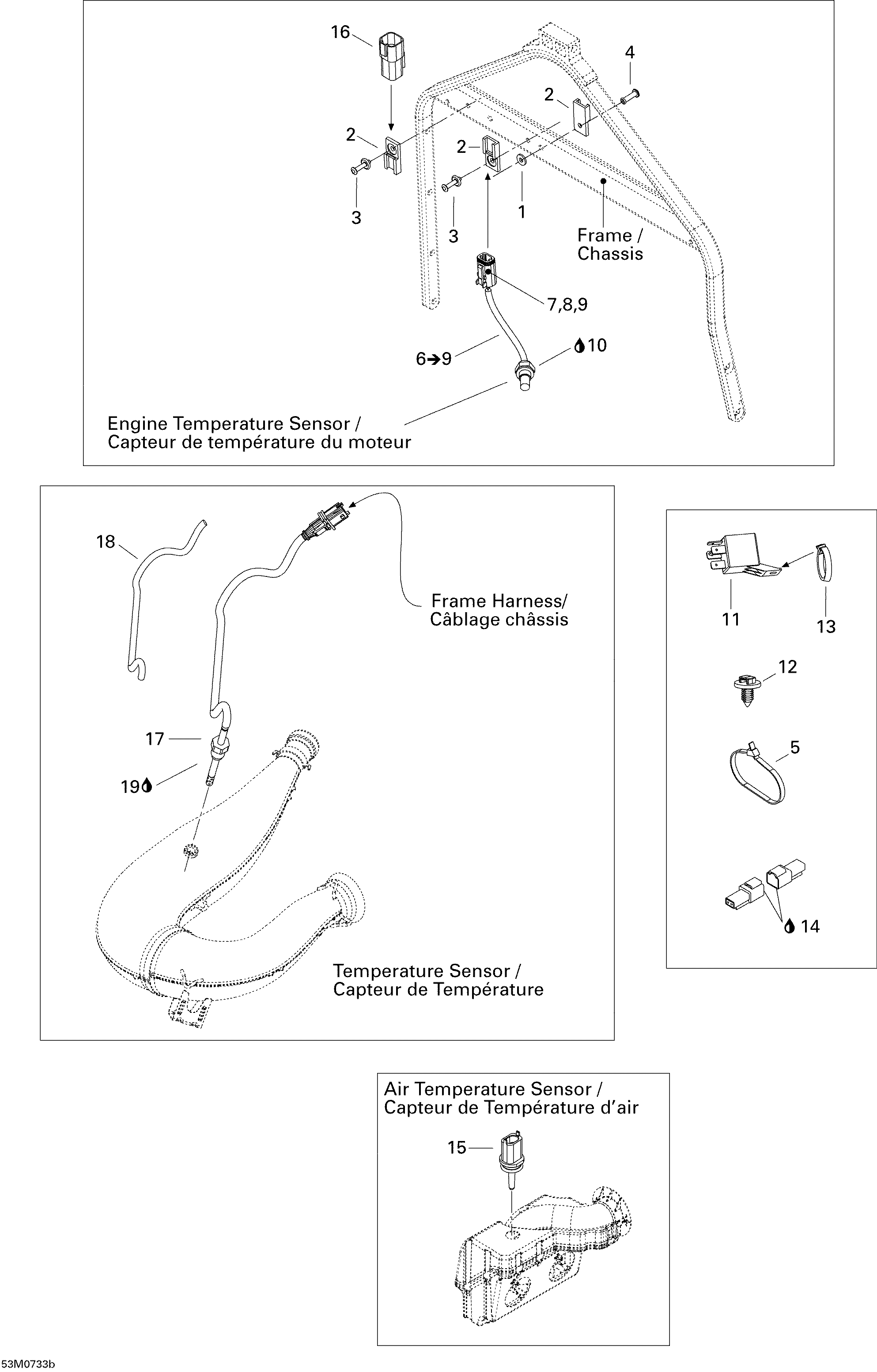

10- Electrical Accessories 2 для BRP Ski-Doo MX Z 440X Racing - 2007
-
№АртикулНазвание
-
1517225900 Flat WasherFlat Washer
-
2515175917 ClipClip
-
3293150037 Rivet Avdel 3/16''Rivet Avdel 3/16''
-
4390410100 Pop Rivet 3/16''Pop Rivet 3/16''
-
5293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
6515176043 Temperature Sensor. Includes 6 to 9Temperature Sensor. Includes 6 to 9
-
7278000739 Female Terminal Housing, 4 CircuitsFemale Terminal Housing, 4 Circuits
-
8278000632 Female TerminalFemale Terminal
-
9515175677 Male Wedge, 4 CircuitsMale Wedge, 4 Circuits
-
10293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
11410113200 RelayRelay
-
12293730018 Mount DartMount Dart
-
13414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
14293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
15270600000 Air Temperature SensorAir Temperature Sensor
-
16515176234 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
17515176132 Temperature SensorTemperature Sensor
-
18515175442 Tubing 6 mmTubing 6 mm
-
19293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
