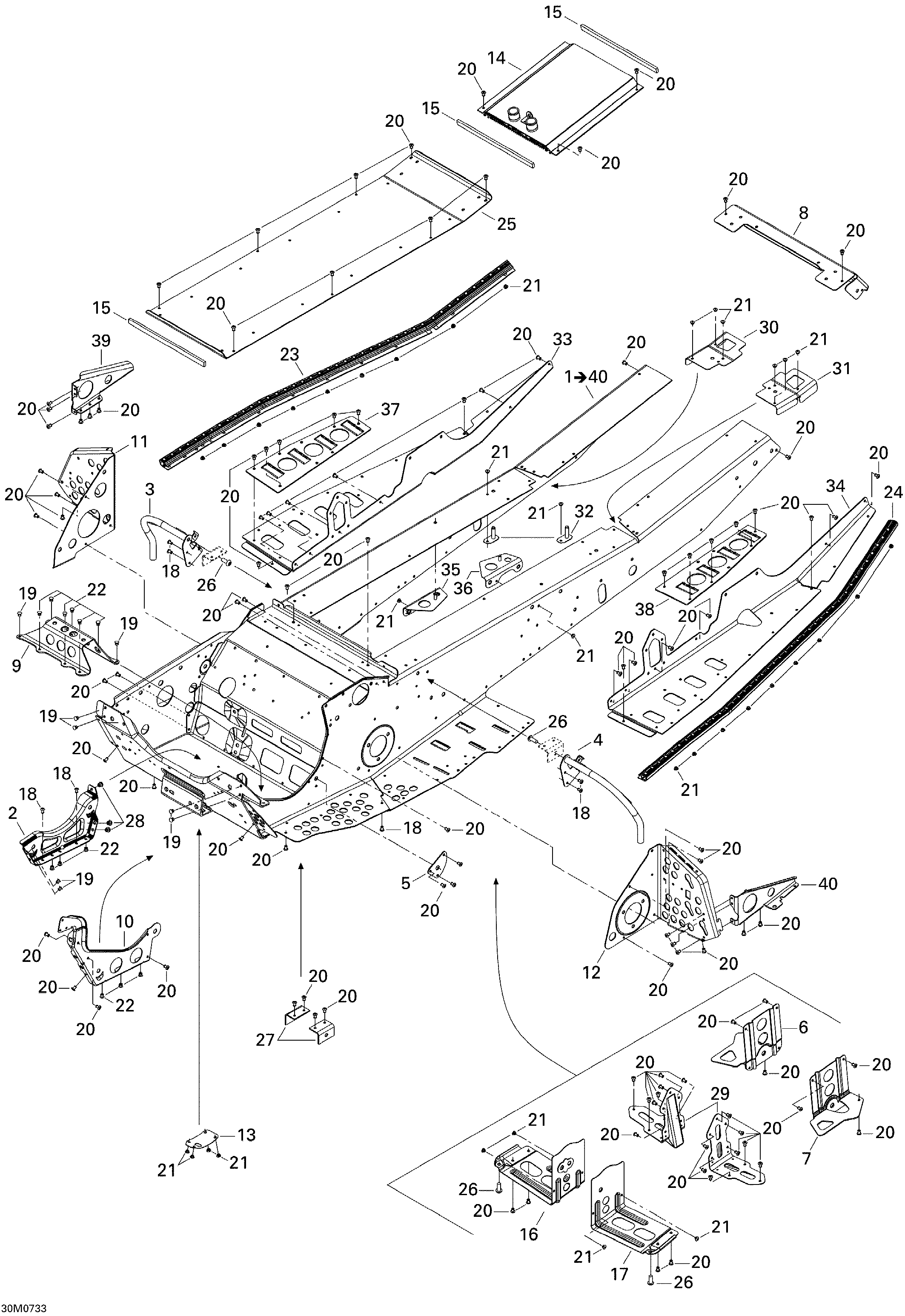

09- Frame для BRP Ski-Doo MX Z 440X Racing - 2007
-
№АртикулНазвание
-
1415129241 Frame. Includes 1 to 40Frame. Includes 1 to 40
-
2518323346 Engine Support, BlackEngine Support, Black
-
3518324162 RH Toe Hold SupportRH Toe Hold Support
-
4518324163 LH Toe Hold SupportLH Toe Hold Support
-
5518323507 Outer ReinforcementOuter Reinforcement
-
6518324703 RH Suspension Bracket, BlackRH Suspension Bracket, Black
-
7518324704 LH Suspension Bracket, BlackLH Suspension Bracket, Black
-
8518325030 Rear CapRear Cap
-
9518324093 Center Cross LinkCenter Cross Link
-
10518323241 Inner Reinforcement, BlackInner Reinforcement, Black
-
11518323805 RH Footrest ReinforcementRH Footrest Reinforcement
-
12518324527 LH Footrest ReinforcementLH Footrest Reinforcement
-
13518324169 PlatePlate
-
14518325019 Rear RadiatorRear Radiator
-
15293200104 GasketGasket
-
16518324712 RH Footrest Reinforcement, BlackRH Footrest Reinforcement, Black
-
17518324713 LH Footrest Reinforcement, BlackLH Footrest Reinforcement, Black
-
18390909200 Avex RivetAvex Rivet
-
19390909100 Avex RivetAvex Rivet
-
20390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
21390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
22390910300 Rivet HenrobRivet Henrob
-
23518323310 RH RollerRH Roller
-
24518323311 LH RollerLH Roller
-
26205982086 Socket Head Screw M8 X 20, Scotch GripSocket Head Screw M8 X 20, Scotch Grip
-
27518323185 Tunnel ReinforcementTunnel Reinforcement
-
28293150096 RivetRivet
-
29518323578 Center ReinforcementCenter Reinforcement
-
30518324431 RH Frame ReinforcementRH Frame Reinforcement
-
31518324432 LH Frame ReinforcementLH Frame Reinforcement
-
32518322791 Tank BracketTank Bracket
-
35518323336 RH Frame Reinforcement, BlackRH Frame Reinforcement, Black
-
36518323337 LH Frame Reinforcement, BlackLH Frame Reinforcement, Black
-
37518325023 RH Liner TunnelRH Liner Tunnel
-
38518325024 LH Liner TunnelLH Liner Tunnel
-
39518323187 RH BracketRH Bracket
-
40518323188 LH BracketLH Bracket
